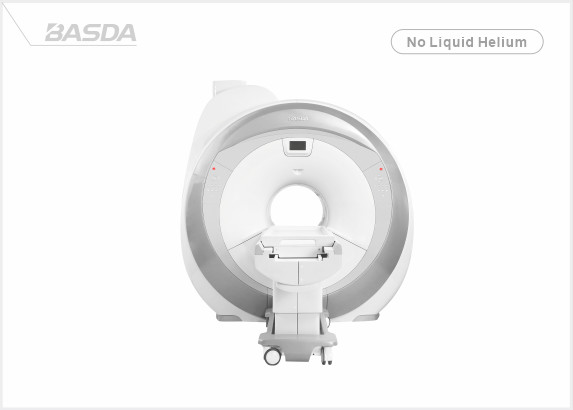

Water Cooling 1.5T Superconductive MRI Machine

Water Cooling 1.5T Superconductive MRI Machine

Water Cooling 1.5T Superconductive MRI Machine
Water Cooling 1.5T Superconductive MRI Machine
Water Cooling 1.5T Superconductive MRI Machine
Product Details:
Place of Origin: China
Brand Name: BASDA
Certification: ISO13485
Model Number: Bstar-150F
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 unit/wooden box
Delivery Time: 30-45 Days
Payment Terms: Credit card, Paypal, T/T, Western Union, MoneyGram
Supply Ability: 200 Machines per Year
Contact Now
Detailed Product Description
Magnetic Field Strength: 1.5 Tesla Liter Of Liquid Helium: 0
Patient Table Driven Mode: Motor Driven Gradient Cooling System: Water Cooling
Shimming Method: Active, Passive And Dynamic Magnet Material: Niobium-titanium Alloys
High Light:

Water Cooling Superconductive MRI Machine


1.5T Superconductive MRI Machine


Helium Free MRI Scanner

First Liquid Helium Free Superconducting MRI is Launched By Basda

Basda Medical has been a leader in China’s MRI field for many years, not only with its range of bench top scanners but also with its digital X Ray machine, ultrasound and nuclear medicine machine, which have the widest range of capabilities both for pre-clinical and whole body scanners. We hope that you found the information you were looking for in this news article – If you have further questions, feel free to contact us.


Recently, Basda has announced the launch of the helium-free 1.5T superconducting MR that helps solve the problem of global liquid helium shortage. Generally, a conventional 1.5T superconducting MR system requires nearly 1,000 Liter of liquid helium to operate normally. The result is the world’s first MR system to enable helium-free operations, reducing the chance of potentially lengthy, costly, and even deadly disruptions, and virtually eliminating the dependency on a commodity with an unpredictable supply.


Magnet sub system

1. Bstar-150 liquid helium free Superconducting MRI has 9 advantage features.


1) There is no liquid helium in the machine meaning there is no liquid helium loss under any circumstances.


2) There is no risk of frostbite or suffocation for doctors and patients.


3) The system is equipped with the functions of automatically dropping the field when the power is cut off, and automatically raising the field when the power is restored.


4) Using cloud interconnection technology, the status of the magnet can be viewed remotely through a mobile phone, and the system can be remotely operated such as lifting and lowering the field.


5) It can be installed in any country and region, completely isolated from the influence of liquid helium supply;


6) There is no need to configure a quench tube like the traditional 1.5T superconducting MRI, which protects the safety of patients and surrounding residents to the greatest extent.


7) Lower service tower height makes site selection easier;


8) Available with shipping, air transportation and land transportation which greatly minimizes the difficulty of magnet transportation;


9) The new magnet architecture platform adopts modular design with higher integration. After quenching under blackout, the magnet field can be automatically restored in a short period of time without the need for professional engineers to arrive on site.



Water Cooling 1.5T Superconductive MRI Machine 0


2. Strong gradient system


Strong gradient field strength and gradient switching rate can provide shorter TE and TR options, bring faster imaging speed. As the result, it can significantly improve the image quality of DWI, SWI imaging and EPI sequences. The gradient system adopts self-shielding design, which can effectively avoid the eddy current between the metal shielding layers, and carry out more accurate spatial encoding of the magnetic resonance signal.



3. "Super Uniform B1 Technology" RF System


The “all-digital spectrometer plus high-power and high-frequency power” amplifier can provide a more uniform and accurate B1 field, shorter excitation time and stronger magnetic resonance excitation energy, providing a solid foundation for improving the performance of the pulse sequence.




4, the fully upgraded AIT software platform


The groundbreaking SWIFT 2D/3D dynamic enhancement sequence can be applied to the dynamic enhancement of liver and breast which leads to thinner layer thickness and faster speed. With its supplementary RF fat sat technology, the system can provide options such as automatic subtraction in order to provide a new diagnostic visual field.


Rich coil configuration
The Receiver coil, together with parallel acquisition technology, improve the signal-to-noise ratio and image quality. The customer can choose according to the clinical needs (specific configuration of the coil number and types will be subject to final contract).
  • Head coil
  • Neck coil
  • Body coil
  • Knee coil
  • Shoulder coil
  • Ankle coil
  • Wrist coil
  • Breast coil
  • AIT coil set


Why choosing Helium free 1.5T magnet instead of Traditional 1.5T magnet?



Comparison between Helium free 1.5T magnet and Traditional 1.5T magnet
    BASDA Helium free 1.5T magnet Traditional 1.5T magnet
Magnet character
1 Year launched in market 2020 before 2000
2 Helium capacity 0 800-2000L
3 Cooling method Coils connect to cold head directly, no helium Coils merge in liquid helium
4 Min. shielding room height 2500mm >2900mm
5 Magnet service tower Highly integrated Discrete
6 Inner pressure after quench Normal pressure Very high pressure(danger)
7 Restore from quench <2.5 days, automatic >10 days, site engineer necessary
8 Maintenance cost Lose 0 liquid helium when quench Lose ALL(800L-2000L) liquid helium when quench
9 Cost after quench 0 dollar 125,000 dollar
10 Local helium supplier No need Necessary
11 Liquid helium refill period Never Need refill in around 3-5 years
12 Magnet control Inteligent "One touch" Operator can not control
13 User experience Relax Always worry for power cut and liquid helium
14 Magnet transportation All ways(by sea or land or air) By sea or land only
System performance
15 Power consumption 45kW 50-75kW
16 Field Strength 1.5T 1.5T
17 Shielding Method Active Active
18 Shimming Method and Type Active + Passive + Dynamic Active + Passive + Dynamic
19 Magnet stability ≤0.1ppm/h 0.1ppm/h-0.5ppm/h
20 Homogeneity (10cm DSV, VRMS) ≤0.01ppm 0.01ppm-0.05ppm
21 Length of magnet(exclude cover) 157cm 140cm-1750cm
22 Inner diameter of magnet 600mm 600mm-700mm
23 5 Gauss fringe field(X,Y,Z axis) ≤2.5m x 2.5m x 4.0m Around 3m x 3m x 4.5m
24 Self shielding design Yes Yes


Interactive environment

1, Motor-driven patient table.

2, Built-in-magnet high resolution 8-inch screen, the operation is convenient.

3, Have emergency stop function, protect the patients.

4, High positioning accuracy.

5, Support operation on both sides of the magnet, convenient and quick.





Water chiller set

Intelligent touch screen design, visual operation, and be convenient for maintenance.

1, automatic overheating, leaking, fault detection, safe and reliable.

2, one key recovery function.

3, config with a set of spare water chilling unit, no need to have any worry about the system downtime.






Site Requirement


Water Cooling 1.5T Superconductive MRI Machine 1
