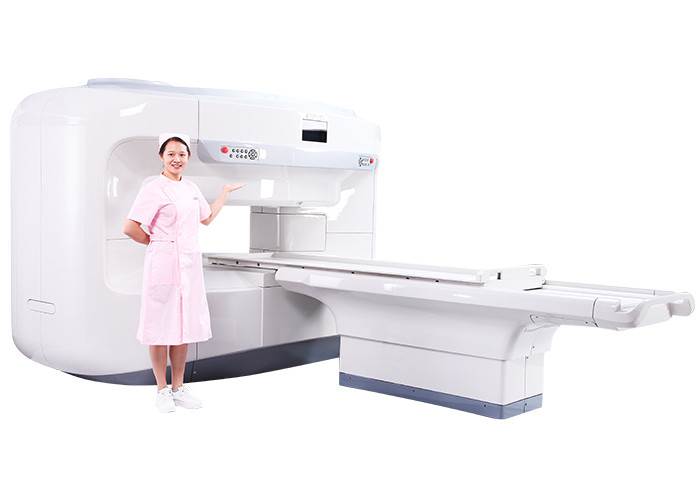

Bstar-070 uses less than 120L liquid helium content, (when regular 1.5T superconductive MRI systems usually uses more than 1500L), even in case of quenching, the customer also do not need to worry about maintenance costs. The system uses 4k cold head imported from Japan, provide “liquid helium zero consumption technology”, the filling cycle of liquid helium is 4 years or longer.
Conventional superconductive MRI uses water-cooled helium compressor, the helium compressor need to continue working to keep the magnet temperature at superconductive environment, its cost on the electricity and water is a very large. Bstar-070 innovatively uses the air-cooled helium compressor, greatly reduce the electricity bills, and zero water consumption, help the user to save money.
Gradient sub system
Gradient sub system directly determine the spatial encoding of MRI system, it produces the signal information, at the same time it can perform GR series sequence scanning, it is the foundation of MRI system’s spatial resolution ability, gradient sub system also directly affect the scanning image thin slice scanning.
The linearity of gradient system of MRI system determine the accuracy of spatial location information, ensuring that in any acquisition, the image distortion is limited.

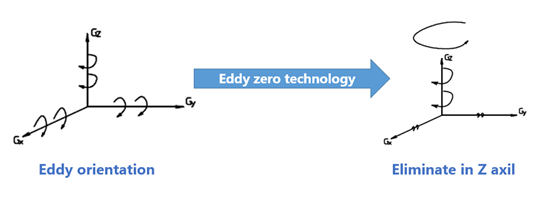

Gradient switching rate is an important factor of MRI scanning speed. Bstar-070 using the self-shielding gradient coil and high duty cycle gradient amplifier system, together with eddy zero technology and design, not only can avoid the eddy current between the metal shielding layers, but also can concentrate the eddy current from X axis and Y axis to Z axis, then by software algorithm, eliminate all eddy current. This technology can raise up the spatial encoding ability of the magnetic resonance signal and make the scan more precise, ensure high resolution image quality
When gradient system working its current is high, and switching rate is high as well, thus the noise emitted by MRI system is easy to make the patient discomfort, Bstar-070 using special hardware noise reduction design technology, the original gradient noise is reduced up to 66%, and Bstar-070 provides a friendlier scanning environment for the patients.
The gradient system using air cooling to save maintenance cost for the user.
RF sub system
The RF sub system is the source of MRI proton excitation energy, its efficiency directly affects the MRI relax signal. RF receiver receive MRI relax signal, a good receiving coil can improve the SNR of image.
The RF sub system is similar as highway lane, the more lanes, the faster flow of vehicles. Vice versa, the more the RF system channels, the faster parallel acquisition, thus the system can process the greater the amount of data in the same time, reduce the imaging time. Bstar-070 suing 4 channel radio frequency receiving, combined with the latest parallel sampling technology, using the DDC digital direct sampling, can short the scan time and get excellent image quality.
Rich coil configuration
The Receiver coil, together with parallel acquisition technology, improve the signal-to-noise ratio and image quality. The customer can choose according to the clinical needs (specific configuration of the coil number and types will be subject to final contract).
head coil
neck coil
body coil(s)
body coil(soft)
knee coil
breast coil
body coil(L)
shoulder coil
ankle coil
wrist coil
