| Place of Origin: | China |
| Brand Name: | BASDA |
| Certification: | NMPA |
| Model Number: | BDH-180 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 unit/wooden box |
| Delivery Time: | 30-45 working days |
| Payment Terms: | Credit card, Paypal, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 Sets per Month |
| Max Weight: | 2300kg | 3D: | Yes |
|---|---|---|---|
| Radiation Type: | Gamma Ray | Table: | Automatic |
| FOV Of Detector: | 360mm×500mm | Control: | Remote |
| High Light: | 2 Detectors SPECT CT Machine,Automatic Table SPECT CT Machine,2 Detectors spect scan machine |
||

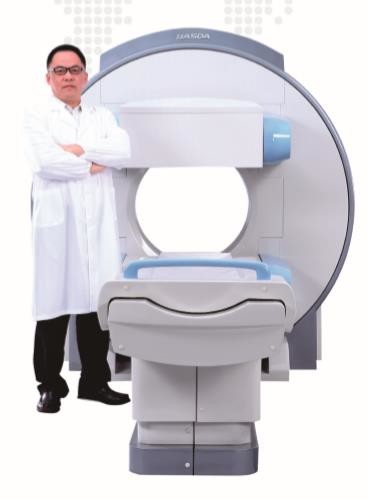

BDH-180 Single-Photon Emission CT SPECT dual head 3D full body application remote control easy rig detector carts
Product Features
Company Profile
Basda Medical won numerous honors and was qualified as "National High-tech Enterprise", “Second Prize of National Technology Innovation”, "Key Hi-tech Enterprise of State Torch Program", "First Prize of China Machinery Industry Science and Technology Award", "Provincial High Field MRI System Engineering and Technology R&D Center", "Shenzhen Technology Innovation Award", “Intellectual Property Management System”, etc., Furthermore, numerous technology innovation and projects obtained support and partnering from major investment institutions, national and regional government.
Basda Medical specializes in medical imaging and radiotherapy devices which including 10 series with over 100 products. Our products in the permanent MRI system series include varying magnetic field of 0.22T, 0.30T, 0.35T, 0.42T and 0.50T respectively. Our superconductive MRI systems include magnet filed range from 0.5T, 0.52T, 0.7T, 1.2T, 1.49T, 1.5T to 3.0T. We have 8 slice, 16 slice, 32slice and 64 slice CT scan. Moreover, DR series include ceiling suspension DR, U-arm DR, mobile DR, DRF system and digital mammography system. Furthermore, our color doppler ultrasound system has portable and trolley type. We also have Positron Emission and Tomography PET-CT, Single Photon Emission Computed Tomography SPECT, large field of view gamma camera and other nuclear medicine series; medical linear accelerator radiotherapy series; mobile medical examination vehicle, mobile MRI, mobile CT, mobile one-stop medical vehicle, mobile stroke screening center, cabin imaging series; monitoring, ECG series; PACS, cloud imaging, and AI medical information software series.
Basda Medical’5 series products are included in the key research areas of China’s government directed program " China Manufacturing Strategy 2025". We are known as the one of the earliest manufacturers of 3.0T MRI system, helium free superconducting MRI system, 0.5T and 0.7T open superconducting MRI systems, extremity MRI system and dual head SPECT in China. With its high-tech & qualified products and excellent service, it has over 3000 global users which become the backbone of famous brand’s high-end medical products substitution; our markets cover all domestic provinces and exporting to over 40 countries(Europe, America, Asia, Africa, Middle East) and regions globally.
Basda Medical continues to keep "technology safeguards our lives" principal, and build five centers of “medical imaging center, healthcare examination center, remote diagnosis center, cancer treatment center and medical healthcare service center”. We strive to build the comprehensive medical imaging chain, precision treatment, Internet, AI medical information software, and become the world’s technology innovation leading enterprise in the new era.
| No | Specification | |
| 1 | Detector | |
| 1.1 | Detector number | 2 pc,full digital,rectangle |
| 1.2 | Detector FOV | 360mm×500mm |
| 1.3 | Photomultiplier | 55×2 |
| 1.4 | Crystal | Sodium iodide,thickness: 9.5mm |
| 1.5 | Energy range | 50keV～400keV |
| 1.6 | Inherent energy resolution (99mTc) | ≤9.9% |
| 1.7 | Inherent space resolution | |
| 1.7.1 | Central FOV(FWHM) | ≤3.5mm |
| 1.7.2 | Central FOV(FWTM) | ≤6.5mm |
| 1.7.3 | Effective FOV(FWHM) | ≤3.5mm |
| 1.7.4 | Effective FOV(FWTM) | ≤6.5mm |
| 1.8 | Intrinsic uniformity | |
| 1.8.1 | Central FOV(differential ) | ≤2.2% |
| 1.8.2 | Central FOV(integral) | ≤3.0% |
| 1.8.3 | Effective FOV(differential) | ≤2.5% |
| 1.8.4 | Effective FOV(integral) | ≤3.0% |
| 1.9 | Inherent lineation | |
| 1.9.1 | Differential lineation(Central FOV) | ≤0.7mm |
| 1.9.2 | Differential lineation(effective FOV) | ≤1.0mm |
| 1.9.3 | Absolute linearity (Central FOV) | ≤2.0mm |
| 1.9.4 | Absolute linearity (effective FOV) | ≤2.0mm |
| 1.10 | Maximum count rate (@ window width 20%) | 130 kcps |
| 1.11 | System resolution (low energy high collimator) | ≤8.0mm |
| 1.12 | System sensitivity (low energy high resolution collimator) | ≥71cpm/μCi |
| 1.13 | Planar sensitivity difference between detectors | ≤5% |
| 1.14 | System space resolution(low energy high resolution collimator, FWHM) | |
| 1.14.1 | Axial direction | 9.0mm |
| 1.14.2 | Agittal direction | 12.0mm |
| 1.14.3 | Tangential direction | 10.0mm |
| 1.15 | Detector movement |
Rotation: 90 º Up-down: 200mm |
| 1.16 | Aver. Rotation center offset |
≤2.5mm(low energy general collimator) ≤3mm(low energy high resolution collimator) |
| 2 | Gantry | |
| 2.1 | Weight(without collimator) | ≤2300kg |
| 2.2 | Bore | ≥64cm |
| 2.3 | Rotation | |
| 2.3.1 | Rotation range |
≥225º From -45 º～180 º |
| 2.3.2 | Min. rotation speed | ≤0.040RPM |
| 2.3.3 | Rotation precision | ≤1º |
| 2.4 | Position monitor | 12” color screen |
| 2.5 | Patient safe belt | Yes |
| 2.6 | Gantry type | None cantilever type |
| 2.7 | Control box | 1 pc |
| 2.8 | Gantry accessories | |
| 2.8.1 | Supporting structure | 1 pc |
| 2.8.2 | Turn plate | 1 pc |
| 2.8.3 | Motion control system | 1 set |
| 2.8.4 | Power cabinet | 1 set |
| 3 | Patient table | |
| 3.1 | Table material | Attenuation ≤10% |
| 3.2 | Weight capacity | 0～135kg |
| 3.3 | Scan range | ≥190cm |
| 3.4 | Position precision | ≤2mm |
| 3.5 | Vertical movement range | 1140mm～650mm |
| 3.6 | Horizontal movement | |
| 3.6.1 | Max. speed | ≥30cm/min |
| 3.6.2 | Min. speed | ≤12cm/min |
| 3.7 | Vertical movement speed | 20mm/s |
| 3.8 | Head support | 1 pc |
| 3.9 | Table support | 1 set |
| 3.10 | Motor | 2 set |
| 4 | Collimator | |
| 4.1 | Low energy high resolution type collimator (Standard) | 2 pc |
| 4.1.1 | Low energy high resolution collimator weight | ≤35kg per unit |
| 4.2 | High energy general type collimator (optional) | 2 pc |
| 4.2.1 | High energy general type collimator weight | ≤75kg/unit |
| 4.3 | Low energy general type collimator (optional) | 2 pc |
| 4.3.1 | Low energy general type collimator weight | ≤50kg/unit |
| 4.4 | Collimator replacement device | 1 pc for each collimator |
| 5 | Acquisition workstation | |
| 5.1 | OS | Windows |
| 5.2 | CPU | ≥2.8GHz |
| 5.3 | RAM | ≥2GB |
| 5.4 | HDD | ≥320GB |
| 5.5 | Monitor | ≥19” |
| 5.6 | Recorder | CRW/DVD |
| 5.7 | Keyboard and mouse | 1 pc |
| 5.8 | DICOM3.0 | Yes |
| 6 | Post processing workstation | |
| 6.1 | OS | Windows |
| 6.2 | CPU | ≥2.8GHz |
| 6.3 | RAM | ≥2GB |
| 6.4 | HDD | ≥320GB |
| 6.5 | Monitor | ≥19” |
| 6.6 | Recorder | CRW/DVD |
| 6.7 | Keyboard and mouse | 1 pc |
| 6.8 | DICOM3.0 | Yes |
| 7 | Software function | |
| 7.1 | Language | English |
| 7.1.1 | Static collection | Yes |
| 7.1.2 | Whole body scan acquisition | Yes |
| 7.1.3 | Dynamic collection | Yes |
| 7.1.4 | Section | Yes |
| 7.2 | General image display and analysis | Yes |
| 7.2.1 | Zoom in, zoom out, copy | Yes |
| 7.2.2 | Image filter | Yes |
| 7.2.3 | Cine function | Yes |
| 7.2.4 | ROI establish, display and statistics | Yes |
| 7.2.5 | Palette function | Yes |
| 7.2.6 | Window width/level | Yes |
| 7.3 | Curve computing software | Yes |
| 7.3.1 | Time radioactive curve | Yes |
| 7.3.2 | Image mathematical function | Yes |
| 7.3.3 | Measurement function | Yes |
| 7.4 | Organ function analysis | |
| 7.4.1 | Bone imaging and analysis | Yes |
| 7.4.2 | Bone sectional imaging analysis | Yes |
| 7.4.3 | Full body imaging and analysis | Yes |
| 7.4.4 | Thyroid imaging and analysis | Yes |
| 7.4.5 | Thyroid sampling and quantitative analysis | Yes |
| 7.4.6 | General image display and processing function | Yes |
| 7.5 | Renal function analysis | |
| 7.5.1 | Basic analysis | Yes |
| 7.5.2 | Dynamic analysis | Yes |
| 7.5.3 | Static analysis | Yes |
| 7.5.4 | GFR glomerular filtration rate analysis | Yes |
| 7.5.5 | Renal perfusion analysis | Yes |
| 7.5.6 | Left/right renal clearance rate analysis | Yes |
| 7.6 | Reconstruction | |
| 7.6.1 | Transversal reconstruction | Yes |
| 7.6.2 | Sagittal reconstruction | Yes |
| 7.6.3 | Coronal reconstruction | Yes |
| 7.6.4 | Customized cardiac sectional reconstruction | Yes |
| 7.7 | Report system | English |
| 7.7.1 | User information management system | Yes |
| 7.7.2 | Image printing software | Yes |
| 7.8 | Quality control software | English |
| 7.8.1 | Pixel size adjustment function | Yes |
| 7.8.2 | Automatic gain correction function | Yes |
| 7.8.3 | Energy correction function | Yes |
| 7.8.4 | Linearity correction function | Yes |
| 7.8.5 | Uniformity correction function | Yes |
| 8 | Quality control | |
| 8.1 | QC phantom | Yes |
| 8.2 | Source | Yes |
| 8.3 | User manual | Yes |
| 8.4 | Free software upgrading | Yes |
