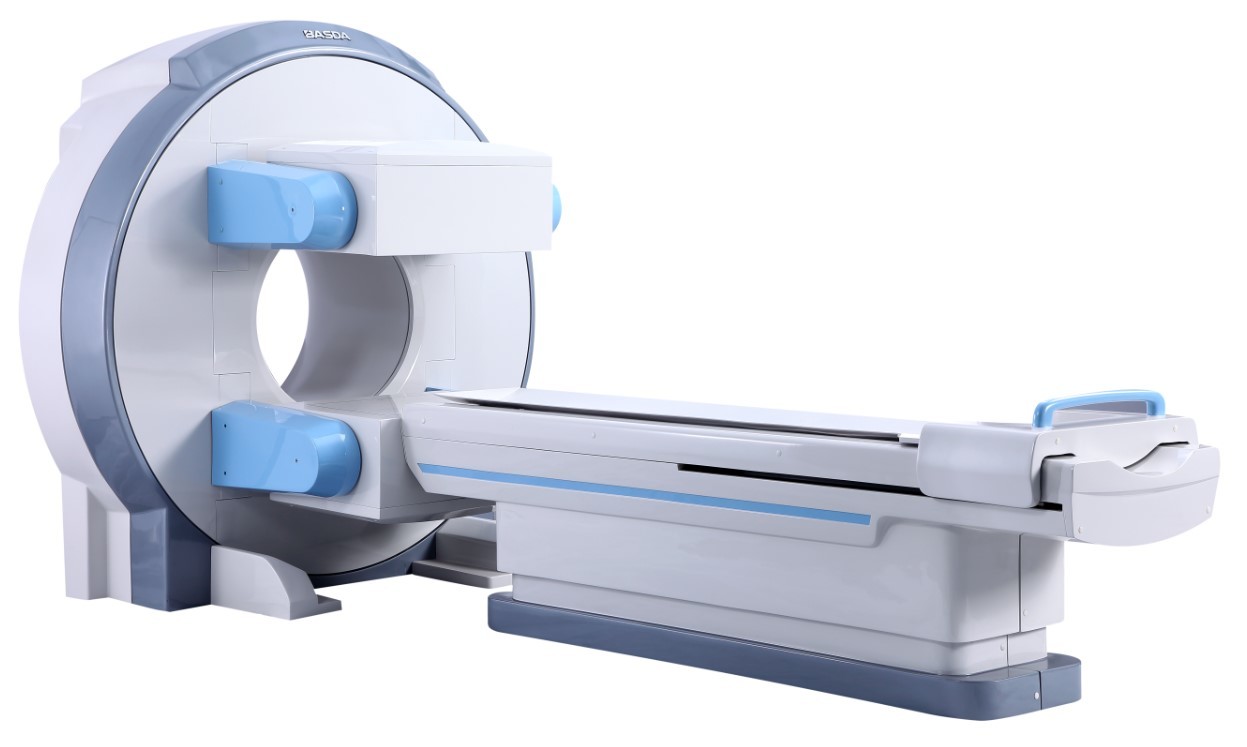

SPECT Dual Head 3D Full Body 2 Detector Spect Scan Machine BDH-180

SPECT Dual Head 3D Full Body 2 Detector Spect Scan Machine BDH-180

SPECT Dual Head 3D Full Body 2 Detector Spect Scan Machine BDH-180
SPECT Dual Head 3D Full Body 2 Detector Spect Scan Machine BDH-180
SPECT Dual Head 3D Full Body 2 Detector Spect Scan Machine BDH-180
Product Details:
Place of Origin: China
Brand Name: BASDA
Certification: NMPA
Model Number: BDH-180
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 1 unit/wooden box
Delivery Time: 30-45 working days
Payment Terms: Credit card, Paypal, T/T, Western Union, MoneyGram
Supply Ability: 10 Sets per Month
Contact Now
Detailed Product Description
Product Name: Single Photon Emission Computed Tomography Weight: Less Than 2300kg
Detector: 2 3D: Yes
Apply For: Full Body Radiation Type: γ Ray
High Light:

3D Full Body Spect Scan Machine

,

2 Detector Spect Scan Machine

,

2 Detector spect ct machine

BDH-180 Single-Photon Emission CT SPECT dual head 3D full body application remote control

Single Photon Emission Computed Tomography (SPECT)

FAST DESCRIPTION
  1. The first intelligent SPECT in China with 180°fixed angle and dual-head technologies
  2. Integrated with various collimators for various clinical application
  3. Proprietary software system with English and Chinese language versions
  4. Standard DICOM interface for network & remote diagnosis
  5. Excellent after-sales service, low running cost


Company Introduction



  • As a leading domestic medical technology and digital solutions innovator, Basda Medical was established since 2000. Located in Shenzhen, the frontier city of China’s “reform and opening up”, Basda Medical has emerged and developed as a national high-tech company focusing on R&D, production, trading, and services relating to medical imaging, digital solutions and radiotherapy products.



  • Basda Medical won numerous honors and was qualified as "National High-tech Enterprise", “Second Place of National Technology Invention", "Key Hi-tech Enterprise of State Torch Program", "First Place of China Machinery Industry Science and Technology Award", "Provincial High Field MRI System Engineering and Technology R&D Center", "Shenzhen Technology Innovation Award", “Intellectual Property Management System”, etc.. Furthermore, numerous technology innovation and projects gained financial support and partnering from major investment institutions, national and regional government.

SPECT Dual Head 3D Full Body 2 Detector Spect Scan Machine BDH-180 0



SPECT Specification

No Specification
1 Detector
1.1 Detector number 2 pc,full digital,rectangle
1.2 Detector FOV 360mm×500mm
1.3 Photomultiplier 55×2
1.4 Crystal Sodium iodide,thickness: 9.5mm
1.5 Energy range 50keV~400keV
1.6 Inherent energy resolution (99mTc) ≤9.9%
1.7 Inherent space resolution
1.7.1 Central FOV(FWHM) ≤3.5mm
1.7.2 Central FOV(FWTM) ≤6.5mm
1.7.3 Effective FOV(FWHM) ≤3.5mm
1.7.4 Effective FOV(FWTM) ≤6.5mm
1.8 Intrinsic uniformity
1.8.1 Central FOV(differential ) ≤2.2%
1.8.2 Central FOV(integral) ≤3.0%
1.8.3 Effective FOV(differential) ≤2.5%
1.8.4 Effective FOV(integral) ≤3.0%
1.9 Inherent lineation
1.9.1 Differential lineation(Central FOV) ≤0.7mm
1.9.2 Differential lineation(effective FOV) ≤1.0mm
1.9.3 Absolute linearity (Central FOV) ≤2.0mm
1.9.4 Absolute linearity (effective FOV) ≤2.0mm
1.10 Maximum count rate (@ window width 20%) 130 kcps
1.11 System resolution (low energy high collimator) ≤8.0mm
1.12 System sensitivity (low energy high resolution collimator) ≥71cpm/μCi
1.13 Planar sensitivity difference between detectors ≤5%
1.14 System space resolution(low energy high resolution collimator, FWHM)
1.14.1 Axial direction 9.0mm
1.14.2 Agittal direction 12.0mm
1.14.3 Tangential direction 10.0mm
1.15 Detector movement

Rotation: 90 º

Up-down: 200mm

1.16 Aver. Rotation center offset

≤2.5mm(low energy general collimator)

≤3mm(low energy high resolution collimator)


2 Gantry
2.1 Weight(without collimator) ≤2300kg
2.2 Bore ≥64cm
2.3 Rotation
2.3.1 Rotation range

≥225º

From -45 º~180 º

2.3.2 Min. rotation speed ≤0.040RPM
2.3.3 Rotation precision ≤1º
2.4 Position monitor 12” color screen
2.5 Patient safe belt Yes
2.6 Gantry type None cantilever type
2.7 Control box 1 pc
2.8 Gantry accessories
2.8.1 Supporting structure 1 pc
2.8.2 Turn plate 1 pc
2.8.3 Motion control system 1 set
2.8.4 Power cabinet 1 set

3 Patient table
3.1 Table material Attenuation ≤10%
3.2 Weight capacity 0~135kg
3.3 Scan range ≥190cm
3.4 Position precision ≤2mm
3.5 Vertical movement range 1140mm~650mm
3.6 Horizontal movement
3.6.1 Max. speed ≥30cm/min
3.6.2 Min. speed ≤12cm/min
3.7 Vertical movement speed 20mm/s
3.8 Head support 1 pc
3.9 Table support 1 set
3.10 Motor 2 set

4 Collimator
4.1 Low energy high resolution type collimator (Standard) 2 pc
4.1.1 Low energy high resolution collimator weight ≤35kg per unit
4.2 High energy general type collimator (optional) 2 pc
4.2.1 High energy general type collimator weight ≤75kg/unit
4.3 Low energy general type collimator (optional) 2 pc
4.3.1 Low energy general type collimator weight ≤50kg/unit
4.4 Collimator replacement device 1 pc for each collimator

5 Acquisition workstation
5.1 OS Windows
5.2 CPU ≥2.8GHz
5.3 RAM ≥2GB
5.4 HDD ≥320GB
5.5 Monitor ≥19”
5.6 Recorder CRW/DVD
5.7 Keyboard and mouse 1 pc
5.8 DICOM3.0 Yes

6 Post processing workstation
6.1 OS Windows
6.2 CPU ≥2.8GHz
6.3 RAM ≥2GB
6.4 HDD ≥320GB
6.5 Monitor ≥19”
6.6 Recorder CRW/DVD
6.7 Keyboard and mouse 1 pc
6.8 DICOM3.0 Yes

7 Software function
7.1 Language English
7.1.1 Static collection Yes
7.1.2 Whole body scan acquisition Yes
7.1.3 Dynamic collection Yes
7.1.4 Section Yes
7.2 General image display and analysis Yes
7.2.1 Zoom in, zoom out, copy Yes
7.2.2 Image filter Yes
7.2.3 Cine function Yes
7.2.4 ROI establish, display and statistics Yes
7.2.5 Palette function Yes
7.2.6 Window width/level Yes
7.3 Curve computing software Yes
7.3.1 Time radioactive curve Yes
7.3.2 Image mathematical function Yes
7.3.3 Measurement function Yes
7.4 Organ function analysis
7.4.1 Bone imaging and analysis Yes
7.4.2 Bone sectional imaging analysis Yes
7.4.3 Full body imaging and analysis Yes
7.4.4 Thyroid imaging and analysis Yes
7.4.5 Thyroid sampling and quantitative analysis Yes
7.4.6 General image display and processing function Yes
7.5 Renal function analysis
7.5.1 Basic analysis Yes
7.5.2 Dynamic analysis Yes
7.5.3 Static analysis Yes
7.5.4 GFR glomerular filtration rate analysis Yes
7.5.5 Renal perfusion analysis Yes
7.5.6 Left/right renal clearance rate analysis Yes
7.6 Reconstruction
7.6.1 Transversal reconstruction Yes
7.6.2 Sagittal reconstruction Yes
7.6.3 Coronal reconstruction Yes
7.6.4 Customized cardiac sectional reconstruction Yes
7.7 Report system English
7.7.1 User information management system Yes
7.7.2 Image printing software Yes
7.8 Quality control software English
7.8.1 Pixel size adjustment function Yes
7.8.2 Automatic gain correction function Yes
7.8.3 Energy correction function Yes
7.8.4 Linearity correction function Yes
7.8.5 Uniformity correction function Yes

8 Quality control
8.1 QC phantom Yes
8.2 Source Yes
8.3 User manual Yes
8.4 Free software upgrading Yes
