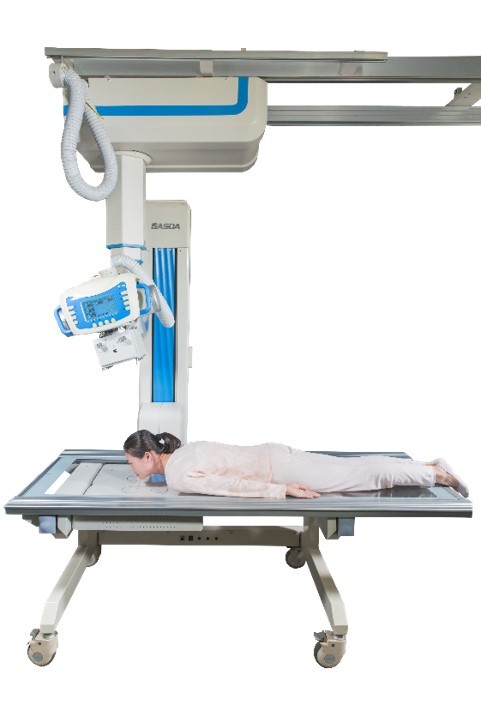

FPD Digital X Ray Machine BTR-X500

FPD Digital X Ray Machine BTR-X500

FPD Digital X Ray Machine BTR-X500
FPD Digital X Ray Machine BTR-X500
FPD Digital X Ray Machine BTR-X500
Product Details:
Place of Origin: Guangdong, P.R.C.
Brand Name: Basda Medical
Certification: CE, ISO13485
Model Number: BTR-X500
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: 1 unit/wooden box
Delivery Time: 5-8 Work Days
Payment Terms: Credit card, Paypal, T/T, Western Union, MoneyGram
Supply Ability: 300 Machines per Year
Contact Now
Detailed Product Description
Type: DDR Tube: Large Capacity
Gantry: Ceiling Collimator: Manual Control
Cable: >9m Power Output: 50KW
High Light:

Ceiling FPD Digital X Ray Machine

,

50KW igital X Ray Machine

,

50KW x ray mobile machine

BTR-X500 Digital X-Ray Ceiling X-Ray 50kW FPD Remote control automatic large tube heat capacity



Product Description



  1. Digital X-Ray flat panel detector

  2. Acquisition and processing workstation

  3. Fully electric ceiling suspended system

  4. Extra high voltage generator

  5. Advanced image processing software







No. Part Specification
1 High voltage generator Power output: 50kW
Max. kV value: 150kV
Max. mA value: 630mA
2 Console

CPU :≥3.0GHz

OS:≥Window 7

RAM:≥4GB

HDD: ≥1TB

DVD recorder: ≥4.5GB

Video card resolution: ≥2048×1536

Ethernet: 100BaseT/1000BaseT

Comply DICOM3.0

LCD size:≥24"

Software resolution:1920×1200

3 Tube Max peak X-ray tube voltage: 150KV
Anode heat storage capacity: 300kHU
Focal spot: 0.6mm/1.2mm
4 Gantry Detector support vertical movement range:≥1200mm
Detector support horizontal movement range:≥2000mm
Tube support rotation range ≥360°
5 Collimator Manual control
6 Detector Size: 17〞× 17〞
Space resolution:≥3.4LP/mm
9 Cable >9m
10 Patient table

Length: 2000mm

Width: 650mm

Height: 700mm





FPD Digital X Ray Machine BTR-X500 0



After-sales service
  • We will keep the customers updated with the preparation status of the goods as well as the necessary information for site preparation to help the customers on grounding, power distribution, etc.
  • Make installation, adjustment and training plan per goods arrival status and site preparation status.
  • After the arrival of goods, we will provide free installation, adjustment and training, as well as installation, operation and maintenance documents.
  • One year full warranty, lifetime maintenance. Free maintenance/change of spare parts is available within warranty.
  • For goods out of warranty, we provide lifetime maintenance and spare parts at favorable price. Free software upgrade is provided within its lifetime.
  • Service hot-line: 4006000815



Training

  • Equipment function introduction;
  • Operation manual introduction;
  • Device maintenance;
  • Efficient use ways of the device.
