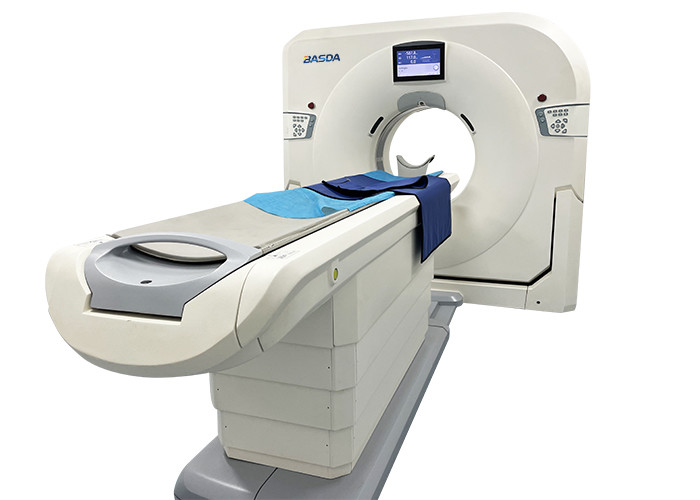

5.3MHU 64 Slice CT Scan Machine

CT scan,Computed Tomography system,64 slices detector,76cm,5.3MHU

BCT-64 MS Helical CT scanner introduction

• BCT - 64 is a new 64 slice spiral CT scanner that BASDA company introduced in 2016, the system includes the industry's top technology, it can produce high-definition images, it has rich software function, meets the demand of the hospital for large daily patient flow, it has the major characteristics include:
• The image chain of BCT-64 adopts mature technologies, the integrity of the system is balanced and strong.​

Key Features

l   76cm large bore: Fast workflow and comfortable scan environment

l   64 slice high definition image

l   8.0MHu X-Ray tube heat capacity

l   80kW Generator power rate

l   50cm Scan FOV

l   1950mm Patient table movement range

l   250kg Patient table load capacity

l   Reconstruction Matrix: 512×512,768×768,1024×1024

Environment requirements

l   Temperature:scan room:20°C~26°C;operation room 18°C~28°C;

l   Humidity:scan room :30 %~70 %,(Non-condensing); operation room:20%~80%,(Non-condensing)

l   Atmospheric pressure: 70kPa~106kPa

Power requirements

a) Power capacity:100kVA

b) Voltage:3-phase 380VAC,3-phase imbalance: less than 10%

c) Frequency: 50Hz/60Hz ± 1Hz

Excellent Clinical Image
