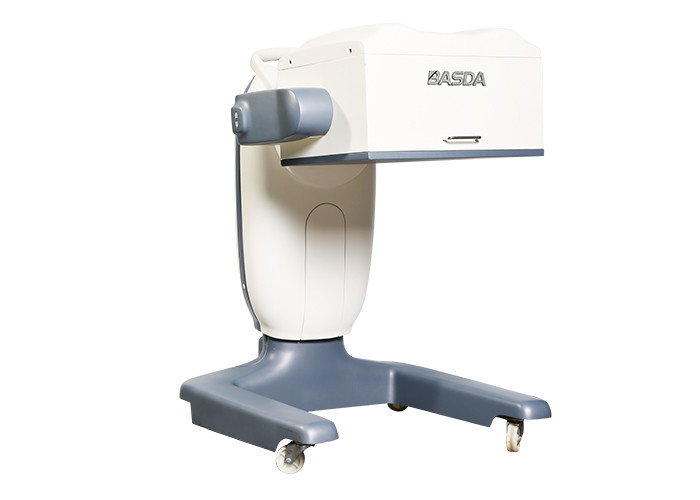

4 Wheels Nuclear Medicine Machine

4 Wheels Nuclear Medicine Machine

  • 4 Wheels Nuclear Medicine Machine
  • 4 Wheels Nuclear Medicine Machine
4 Wheels Nuclear Medicine Machine
Product Details:
Place of Origin: China
Brand Name: BASDA
Certification: ISO
Model Number: BDH-L
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 1 unit/wooden box
Delivery Time: 30-45 working days
Payment Terms: Credit card, Paypal, T/T, Western Union, MoneyGram
Supply Ability: 10 Sets per Month
Contact Now
Detailed Product Description
Key Word: Gamma Camera Probe Lifting Range: Not Less Than 280mm
Radiation Ray: Gamma Detector: 1
Application: Full Body Probe Rotation Range: -40 To 180 Degree
Max. Energy: 170 KeV Energy Resolution: 0-99mTc
High Light:

4 Wheels Nuclear Medicine Machine

,

Gamma Camera Nuclear Medicine Machine

,

4 Wheels nuclear scan machine

BDH-L Gamma Camera Big size detector for kidney thyroid imaging 4 wheels


Product Specifications


Probe specifications
  • FOV:340mmx300mm
  • Energy range:170keV
  • Inherent spatial resolution: in UFOV, FWHMui≤3.6mm, FWTMui≤7.0mm
  • intrinsic heterogeneity: in Ufov , differential inhomogeneity <±2.5%
  • inherent spatial non-linearity: in Ufov, differential linearity ≤1.5mm
  • Energy resolution: ≤9.9% ( to 99mTc)
  • inherent maximum observed count rate: ≥120kcps



Mechanical Specifications

1. probe rotation range: -40°~+180°
2. rotating range of probe bracket : -45°~+180°
3. probe lifting range: not less than 280mm
4. bed capacity:0kg~135kg



Data Acquisition and Clinical Processing Specifications

1. Data acquisition function: Acquisition and processing software, basic data acquisition function including:
2. static acquisition
3. dynamic acquisition
4. general image displays and analysis
5. image amplification
6. image reduction
7. image duplication
8. image filtering
9. film display
10. ROI establishment
11. statistics display
12. palette selection
13. window width and window level adjustment
14. curve and image operation
15. time – radioactive curve
16. image mathematical operation
17. distance measurement
18. reporting system: User Information Management system
19. image printing.
20. Quality control
21. pixel size adjustment
22. automatic gain correction
23. energy correction
24. linear correction
25. uniformity correction
26. daily quality control



4 Wheels Nuclear Medicine Machine 0
Configuration

No. Item Unit Quantity Remark
1 Gantry Gantry PC 1
Probe PC 1 Full digital
2 Collimator and cart Parallel hole low energy high resolution collimator PC 1
Cart PC 1
3 Cabinet   PC 1
4 Workstation Computer Set 1

CPU:≥2.8GHz

HDD:≥320Gbyte

RAM:2G

Video ram:128Mbyte

CD/DVD

Keyboard

Mouse

Monitor PC 1
Data acquisition software Set 1
Post process software Set 1
Reporting software Set 1
