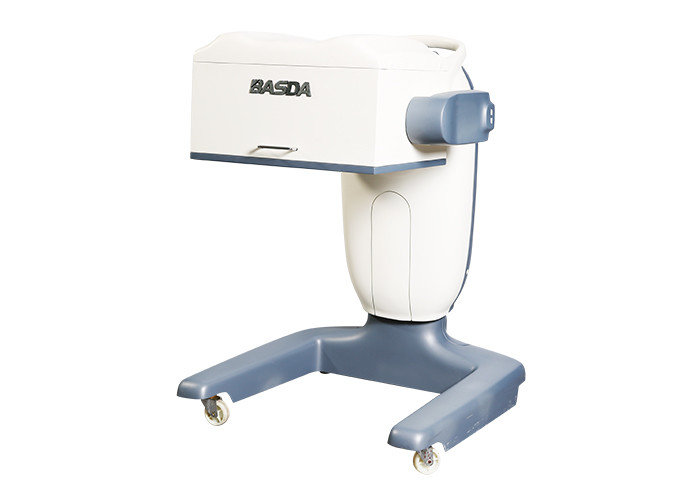

Mobile γ Ray Nuclear Medicine Machine For Kidney Thyroid Imaging Gamma Camera BDH-L

Mobile γ Ray Nuclear Medicine Machine For Kidney Thyroid Imaging Gamma Camera BDH-L

Mobile γ Ray Nuclear Medicine Machine For Kidney Thyroid Imaging Gamma Camera BDH-L
Mobile γ Ray Nuclear Medicine Machine For Kidney Thyroid Imaging Gamma Camera BDH-L
Mobile γ Ray Nuclear Medicine Machine For Kidney Thyroid Imaging Gamma Camera BDH-L
Product Details:
Place of Origin: China
Brand Name: BASDA
Certification: ISO
Model Number: BDH-L
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 1 unit/wooden box
Delivery Time: 30-45 working days
Payment Terms: Credit card, Paypal, T/T, Western Union, MoneyGram
Supply Ability: 10 Sets per Month
Contact Now
Detailed Product Description
Product Name: Gamma Camera Max. Bed Capacity: 135 Kg
Ray Of Radiation: Gamma Ray Detector: 1
FOV: 340x300mm Probe Rotation: -40 To +180°
High Light:

γ Ray Nuclear Medicine Machine

,

γ Ray nuclear medicine equipment

Specifications

Mechanical Specifications

1. probe rotation range: -40°~+180°
2. rotating range of probe bracket : -45°~+180°
3. probe lifting range: not less than 280mm
4. bed capacity:0kg~135kg




Data Acquisition and Clinical Processing Specifications

1. Data acquisition function: Acquisition and processing software, basic data acquisition function including:
2. static acquisition
3. dynamic acquisition
4. general image displays and analysis
5. image amplification
6. image reduction
7. image duplication
8. image filtering
9. film display
10. ROI establishment
11. statistics display
12. palette selection
13. window width and window level adjustment
14. curve and image operation
15. time – radioactive curve
16. image mathematical operation
17. distance measurement
18. reporting system: User Information Management system
19. image printing.
20. Quality control
21. pixel size adjustment
22. automatic gain correction
23. energy correction
24. linear correction
25. uniformity correction
26. daily quality control


Probe specifications

1. FOV:340mmx300mm
2. Energy range:170keV
3. Inherent spatial resolution: in UFOV, FWHMui≤3.6mm, FWTMui≤7.0mm
4. intrinsic heterogeneity: in Ufov , differential inhomogeneity <±2.5%
5. inherent spatial non-linearity: in Ufov, differential linearity ≤1.5mm
6. Energy resolution: ≤9.9% ( to 99mTc)
7. inherent maximum observed count rate: ≥120kcps




Our Service

After-Sale Service

  • Local service partners, around-the-clock response
  • Each and every case tracked
  • Imaging center remote support
  • Specified technical support
  • Operation training
  • Application training at the enduser's site
  • Yearly visit for every case tracked
  • Free software upgrade
  • Life-time marketing support


Client Training



1) Equipment function introduction;

2) Operation manual introduction;

3) Device maintenance;

4) Efficient use ways of the device.
