Multi Parameters Patient Monitoring Machine

Multi Parameters Patient Monitoring Machine

  • Multi Parameters Patient Monitoring Machine
Multi Parameters Patient Monitoring Machine
Product Details:
Place of Origin: Guangdong, P.R.C.
Brand Name: Basda Medical
Certification: ISO9001, ISO13485
Model Number: BMP-15A
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: 1 unit/carton, 345mm*310mm*380mm
Delivery Time: Various by Logistics and Custom
Payment Terms: Credit card, Paypal, T/T, Western Union, MoneyGram
Supply Ability: 3 Days per 10 Units
Contact Now
Detailed Product Description
Application: SPO2, 2TEMP, ECG, RESP, NIBP, PR, 2IBP, CO2 AC: 100-240V
Power Supply: Built-in Battery Material: Plastic, Steel
Form: Standing After-Sale Service: Online Technical Support Or Replacement
High Light:

Multi Parameters Patient Monitoring Machine


240VAC Patient Monitoring Machine


240VAC patient monitoring device

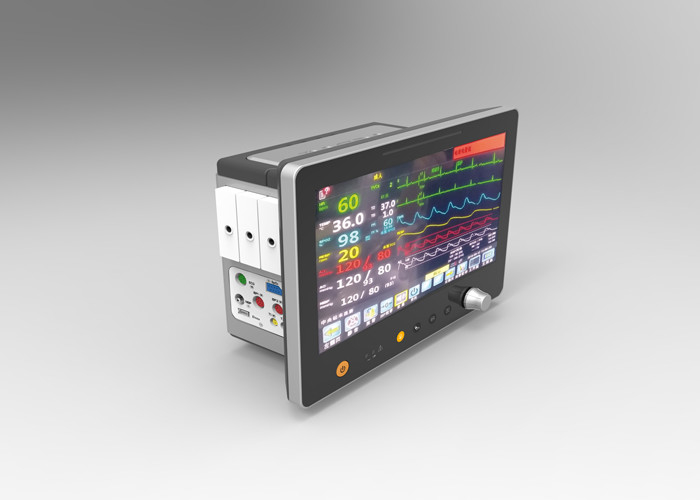

Luxury 15-Inch Portable ECG Monitor Patient Monitor 15 Inch Multi Parameters ECG, RESP, SpO2, PR, NIBP, TEMP

BASDA Luxury 15-Inch ECG Monitor
When evaluating overall patient health, vital signs monitors are an efficient method for collecting accurate readings. The ECG monitor with 8-inch, 12-inch and 15-inch models, produced by a team who focused on developing patient monitor for over 20 years, continue the tradition of timely and accurate vital sign data collection for comprehensive care.
A person’s vital signs indicate how his or her body is operating at a given time. Our ECG monitors offer a flexible solution for accurate vital analyses. Compact, lightweight, and portable monitors are easy to use providing an authentic measurement of a patient’s temperature, blood pressure, pulse oximetry, respiratory rate, and heart rate (ECG, RESP, SpO2, PR, NIBP and dual-channel TEMP). Current health practices rely on data from vital signs monitors to ensure optimal spot checks for low acuity areas of your hospital.

Special Features for Luxury Edition

Special Feature

Internet connectivity slot

15-Inch TFT LED Color Touch screen

Themal recorder

Wi-Fi and Bluetooth

2-BP, C O Etco, Multi-gas, BIS, NMT

12-Lead ECG


Thermal Paper Roll Paper with 50 mm*30m

Detailed Configuration

Parameter Configuration

Lead Mode 3-lead and 5-lead are optional

Lead Selection I, II, III, AVR, AVL, AVF, V

Wave 5-lead: 2 channels

3-lead: 1channel

Gain ×2.5mm/mV, ×5.0mm/mV, ×10mm/mV, ×20mm/mV
HR Measuring and Alarm Range
Range 15 ~ 300 bpm
Accuracy ±1% or ±1bpm, which is greater
Alarm Accuracy ±2bpm
Resolution 1 bpm

Monitor ≥ 100 dB
Surgery ≥ 100 dB
Diagnosis ≥ 60 dB
Bandwidth Surgery 1 ~ 20 Hz(+0.4dB,-3dB)
Monitor 0.5 ~ 40 Hz(+0.4dB,-3dB)
Diagnosis 0.05~75Hz(+0.4dB,-3dB); 76Hz~150Hz(+0.4dB,-4.5dB)
Calibration Signal 1 mV (Vp-p), ±5% Accuracy
ST Segment Monitoring Measuring and Alarm Range -0.6 mV~ + 0.8 mV
Alarm Available
Review Available
Scan Speed for ECG Waveform is adjustable 12.5mm/s accuracy ±10%
25mm/s accuracy±10%
50mm/s accuracy±10%
Method R-F(RA-LL) Impedance
Differential Input Impedance >2.5 MΩ
Measuring Impedance Range 0.3~5.0Ω
Baseline Impedance Range 100Ω– 2500Ω
Bandwidth 0.3 ~ 2.5 Hz
Resp. Rate Measuring and Alarm Range 0~120rpm
Resolution 1 rpm
Measuring Accuracy ±2 rpm
Alarm Accuracy ±3rpm
Apnea Alarm 10 ~ 40 S
NIBP Method Oscillometry
Mode Manual, Auto, continuous
Measuring Interval in AUTO Mode 1 /2 /3 /4 /5/ 10/ 15/ 30 /60 /90/120/240/480/960 Min
Measuring Period in Continuous Mode 5 Min
Measuring and Alarm Range 10~270mmHg
Alarm Type SYS, DIA, MEAN
Resolution Pressure 1mmHg
Cuff Pressure ±3 mmHg
Accuracy ±10% or ±8mmHg, which is greater
Over-pressure Protection:
Adult Mode 315±10 mmHg
Pediatric Mode 265±10 mmHg
Neonatal Mode 155±10 mmHg
SPO2 Measuring Range 0 ~ 100 %
Alarm Range 0 ~ 100 %
Resolution 1 %
Accuracy 70% ~ 100% ±2%
0% ~ 69% unspecified
Pulse Rate(PR) Measuring and Alarm Range 0~250bpm
Resolution 1bpm
Measuring Accuracy ±2bpm or ±2%, which is greater
Alarm Accuracy ±2bpm
TEMP Channel dual-channel
Measuring and Alarm Range 0 ~ 50°C
Resolution 0.1°C
Accuracy ±0.1°C
Actualization Interval about 1 Sec.
Average Time Constant < 10 Sec.
Alarm responding Time ≤2min
ETCO2 Method Sidestream or Mainstream
Measuring Range for CO2 0~150mmHg
Resolution for CO2:
0.1 mm Hg 0 to 69 mm Hg
0.25 mm Hg 70 to 150 mm Hg
Accuracy for CO2: 0 – 40 mm Hg ±2 mm Hg
41 – 70 mm Hg ±5%
71 – 100 mm Hg ±8%
101 – 150 mm Hg ±10%
Respiration Rate>80BPM ±12%
AwRR Range 2~150 rpm
AwRR Accuracy ±1BPM
Apnea Alarm Available
IBP Channel dual-channel
Label ART, PA, CVP, RAP, LAP, ICP, P1, P2
Measuring and Alarm Range -50~350 mm Hg
Resolution 1 mm Hg
Accuracy ±2% or 1mm Hg, which is greater

They come with the main machine

  1. 1 Set of Reusable ECG Leadwires
  2. 1 Set of LNOP Reusable SpO2 Sensor
  3. 1 Set of NIBP Hose
  4. 1 Set of Blood Pressure Cuffs
  5. 2 Sets of Temperature Trunk Cables
  6. 1 Bag of ECG Electrodes
  7. 2 Sets of Fuse
  8. 1 Set of Power Cord
  9. 1 Set of Grounding Cable
  10. 1 Set of ECG Recording Paper
  11. 1 Set of D-lite++ Patient Spirometry Sets
