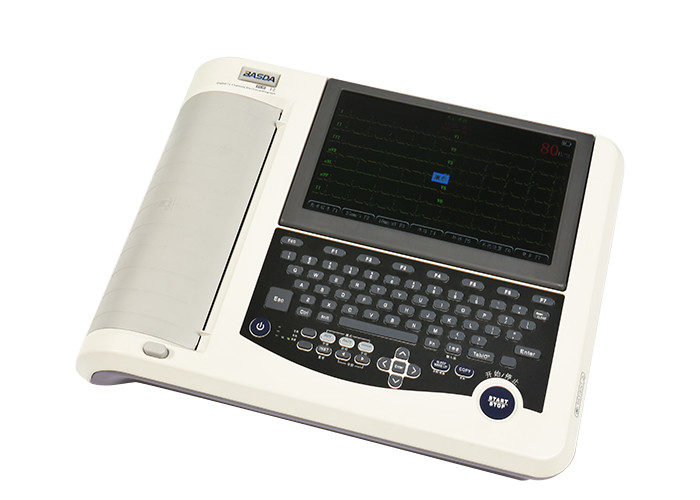

Portable ECG Machine 3/6/12 Channel 12 Leads Medical ECG/EKG
Product Details:
Place of Origin: Guangdong, P.R.C.
Brand Name: Basda Medical
Certification: NMPA, ISO9001, ISO13485
Model Number: BEP Series
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: 1 unit/carton, 390mm*195mm*360mm
Delivery Time: Various by Logistics and Custom
Payment Terms: Credit card, Paypal, T/T, Western Union, MoneyGram
Supply Ability: 3 Days per 10 Units
Contact Now
Detailed Product Description
Instrument Classification: Class II Channel: Standard 3/6/12 Channel
Weight: Varies Standard: ISO9001, ISO13485
Power Source: Electricity Optional Function: Touch Screen, Network Port, CPU Bit
High Light:

ISO 3 Channel Portable ECG Machine

,

Class II 3 channel ecg machine

,

Class II 3 lead ecg machine

Feature



Simple and convenient operation, user friendly design, to bring more comfortable operating experience to medical staff



● Portable delicate design, big color display and soft keyboard operation



● 7-inch and 10.2-inch TFT Color LED, angle-adjustable, shows the working status and ECG waveform



Built-in rechargeable Lithium high capacity battery, Support SD Card to extend memory



Full alphanumeric/alphabetical keyboard with shortcut keys, efficient in operation, portable handle, easy to carry



Built-in high resolution thermal printer, support roll and Z-fold paper



Include multiform printing modes and format, such as 6+3 (rhythm), 6, 3+3 (rhythm), 4, 3+1 (rhythm), 3, 2, rhythm 7, rhythm 6, rhythm 5, rhythm 4, rhythm 3, rhythm 2, manual; the length of wave printing can be adjusted and the function of periodic printing is included to satisfy different applications.



The instrument has the function of regular auto-analysis and auto-interpretation of ECG waveform parameter, provides measurement parameters such as HR, P-R interval, P Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1), etc. and auto-interpretation conclusion to help reducing doctor’s abundance and improve working efficiency.



● Language: English, Chinese, French, Italian, Spanish, Russian, Germany, Portuguese, Romanian, and Turkish





All Product Comparison:





  12 Lead/Channel 6 Lead/Channel 3 Lead/Channel
Screen 10.2-inch TFT LED 7-inch TFT LED 7-inch TFT LED
Keyboard Alphabetical Alphanumeric Alphanumeric

Thermal Paper 215mm*30m 112mm*30m 80mm*30m
Thermal Paper Z-Fold and Roll Roll Roll

Machine Size 420x400x95 mm 310x244x65 mm 310x244x65 mm
Package Size 550x455x285mm 380x330x230mm 380x330x230mm
Net Weight 4.12 kg 2.0 kg 1.9 kg
Gross Weight 9.1 kg 4.6 kg 4.5 kg

3/6/12 Channel Luxury Version Standard Version Basic Version
  Network Port N/A N/A
  24-Bit CPU 12-Bit CPU 12-Bit CPU
  Touch Screen N/A N/A









Specification Example of 12-Lead:



Lead Standard 12 leads Time constant ≥3.2s
lead acquisition 12bit/1000Hz(synchronously 12 leads) Frequency response 0.05~160Hz(-3db)
Work mode 22 Series:Man / Auto/Analysis Noise level <15μVp-p
33 Series: Man / Auto/Analysis/Storage
Filter AC Filter : 50Hz / 60Hz Inter-channel Interference ≤0.5mm
EMG Filter : 25Hz / 45Hz
Anti-Drift Filter : 0.15Hz (Adaptive)
CMMR ≥100dB (with AC FILTER) Sensitivity 5,10,20, 40, Auto (mm/mV)
Input circuit Floating; Protection circuit against Recording mode 3ch+++,6ch,6ch+,12ch
Defibrillator effect Default Man. Mode is 3ch+ format
  Default Auto. Mode is 12ch+ format
Input Impedance ≥50MΩ Paper speed 6.25,12.5,25,50mm/s(±3%)
Input circuit current ≤0.05μA Paper 210/215 mm*30m Roll paper
210mm*140mm Z-fold paper (only for 33 series)
Patient current leakage <10μA Communication SD Memory Card, Network Port
Calibrating voltage 1mV±2% Power Supply AC 110-230V(±10%),50/60Hz(±1Hz),60VA
DC Built-in rechargeable battery,14.4V(4400mmAh)
Voltage tolerance ≥±500mV Dimension/Weight 330mm×270mm×72mm/3.8Kg








Portable ECG Machine 3/6/12 Channel 12 Leads Medical ECG/EKG 0







In the box (at least):



✔Main Machine 1 set
✔Lead Wire 1 set
✔Limp Clip 4 pcs
✔Chest Suction Ball 6 pcs
✔Power Cable 1 piece
✔Fuse 1 piece
