| Parameter | |
| Special Feature | Network connectivity and touch screen |
| Thermal Paper | Roll Paper with 112 mm*30m |
| Keyboard | Alphanumeric |
| Dimension/Weight (Net) | 310 x 224 x 65 mm; 2.0 kg |
| Dimension/Weight (Gross) | 380 x 330 x 230mm; 4.6 kg |
Seamless Connectivity
- ECG data can be transfered to the ECG management software* through SD Card or LAN Port
- Data access with HIS/ PACS/ EMR system based on FTP/ DICOM* /HL7* standard protocol
- Multiple format reports export: PDF, JPG, BMP, XML, SCP*, DICOM, FDA-XML
- Patient information can be retrieved from the worklist*
Powerful functions

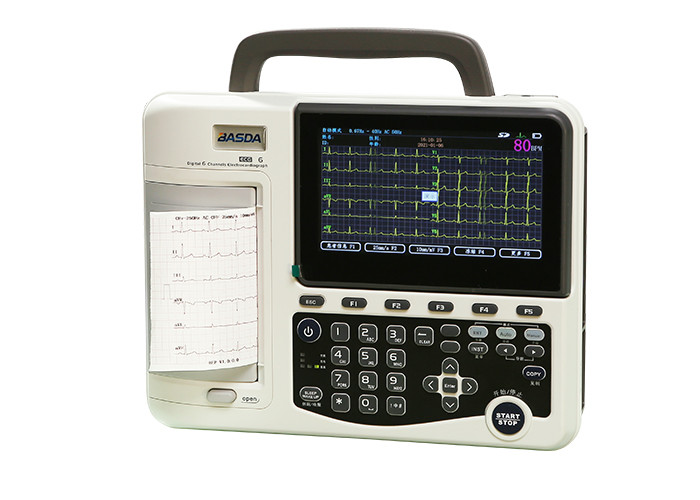

- 7-inch TFT Color LED shows the working status and ECG waveform; soft keyboard control, more convenient for operation.
- 6 Leads ECG simultaneous acquisition, digital signal processor, to get higher quality ECG waveforms through the AC filter, baseline filter and EMG filter of the ECG signals.
- Simultaneous display of 3/6 leads ECG waveform, and the state of printing mode, sensitivity, speed, filter etc., to be easy for interpretation.
- Include multiform printing modes and format, such as 6, 3+3 (rhythm), 4, 3+1 (rhythm), 3, 2, rhythm 6, rhythm 5, rhythm 4, rhythm 3, rhythm 2, manual; the length of wave printing can be adjusted and the function of periodic printing is included to satisfy different applications.
- The instrument has the function of regular auto-analysis and auto-interpretation of ECG waveform parameter, provides measurement parameters such as HR, P-R interval, P Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1), etc. and auto-interpretation conclusion to help reducing doctor’s abundance and improve working efficiency.
- Under the review mode, you can see the saved ECG waveform, auto-analysis and auto-interpretation of ECG waveform parameter, auto-interpretation conclusion
- Compatible with 112mm*30m roll, high resolution thermal paper to print ECG.
- Multi-language(English, Chinese, French, Italian, Spanish, Russian, Germany, Portuguese, Romanian, and Turkish) interface and report.
