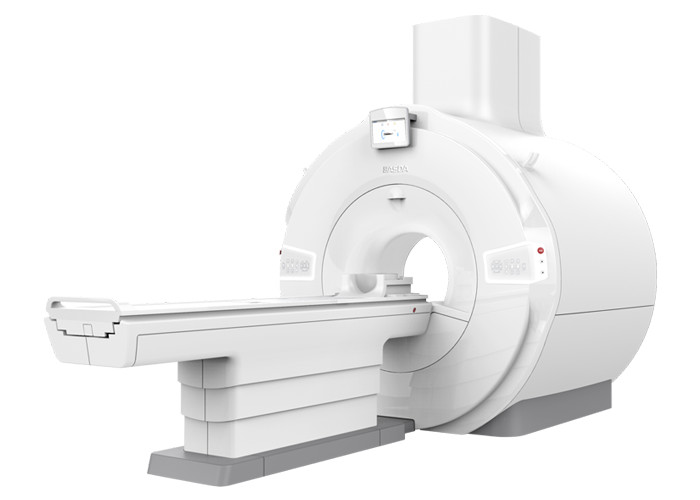

3.0 Tesla Superconducting MRI Machine

3.0 Tesla Superconducting MRI Machine

3.0 Tesla Superconducting MRI Machine
3.0 Tesla Superconducting MRI Machine
3.0 Tesla Superconducting MRI Machine
Product Details:
Place of Origin: China
Brand Name: BASDA
Certification: ISO13485
Model Number: Bstar-300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 unit/wooden box
Delivery Time: 30-45 Days
Payment Terms: Credit card, Paypal, T/T, Western Union, MoneyGram
Supply Ability: 200 Machines per Year
Contact Now
Detailed Product Description
Type: Bore Magnet: Superconducting
Magnet Weight: 4600 KG Field Strength: 3.0 Tesla
Vertical Gap: 60 Cm Volume Of Liquid Helium: 1450 L
High Light:

3.0Tesla Superconducting MRI Machine

,

1450L Superconducting MRI Machine

,

3.0 Tesla full body mri scanner



BSTAR-300 superconducting MRI bore type low liquid helium good image quality more patient



3.0T Superconductive MRI System ---- One of the ONLY two 3.0T Superconductive MRI System in China


Due to the severe COVID-19 pandemic around the world, the current global manufacturing pressure is on China. The price of the Permanent magnet MRI is high since the price of magnetic parts increased dramatically. As a superconducting MRI, this is a great substitute product for a Permanent MRI machine.

FAST DESCRIPTION

  • Main Field strength:3.0T
  • Spectrometer: Full Digital
  • Receiving Channel: 816
  • Receiving Coil: Phase Array Coils
  • Comprehensive scanning sequences
  • Advanced imaging techniques and clinical application
  • Zero consumption of liquid helium



Special Features

1) it config 4k cold head from Japan, the brand is Sumitomo, that provides "zero" consumption of the liquid helium.
2) its cold head sound reduction technology helps to reduce the patient's claustrophobic fear, effectively avoid the involuntary movement which may cause the image artifacts and other potential risk.
3) it has fastest scanning speed, and the image quality is also much better than 1.5T MRI.
4) it is using all famous parts suppliers ensuring the stable system quality.



Gradient sub system



Gradient sub system directly determines the spatial encoding of MRI system, it produces the signal information, at the same time it can perform GR series sequence scanning, it is the foundation of MRI system’s spatial resolution ability, gradient sub system also directly affect the scanning image thin slice scanning.



The linearity of gradient system of MRI system determine the accuracy of spatial location information, ensuring that in any acquisition, the image distortion is limited.



Gradient switching rate is an important factor of MRI scanning speed. Bstar-300 using the self-shielding gradient coil and high duty cycle gradient amplifier system, together with eddy elimination technology and design, can avoid the eddy current between the metal shielding layers, raise up the spatial encoding ability of the magnetic resonance signal and make the scan more precise, ensure high resolution image quality.



During superconducting MRI scans, the noise is much bigger, and staying in a closed environment, the patient is easy to fall into tension. Bstar-300’s gradient sub system adopts special hardware noise reduction design technology, the gradient noise is reduced to 2/3, provide patients with friendly scanning environment.



The gradient system is equipped with automatic detection function, if the temperature is too high, the system can intelligently stop the scanning, to protection of hardware from being damaged.



The system uses water chiller to produce a stable running condition.





RF sub system



The RF sub system is the source of MRI proton excitation energy, its efficiency directly affects the MRI relax signal. RF receiver receive MRI relax signal, a good receiving coil can improve the SNR of image.



The RF sub system is similar as highway lane, the more lanes, the faster flow of vehicles. Vice versa, the more the RF system channels, the faster parallel acquisition, thus the system can process the greater the amount of data in the same time, reduce the imaging time. Bstar-300 uses 16/32 channel radio frequency receiving, combined with the latest parallel sampling technology, using the DDC digital direct sampling, can short the scan time and get excellent image quality.



3.0 Tesla Superconducting MRI Machine 0


Our Product Bstar-150 1.5T Superconducting MRI Installed in Manila, Philippines



Company Introduction:


As a leading and innovative medical technology and digital solutions provider in China, Basda Medical was established in 2000. Located in Shenzhen, the frontier city of China’s “reform and opening up”, Basda Medical has emerged and developed as a national high-tech company focusing on R&D, production, trading, and services on medical imaging, digital solutions and radiotherapy products.



The core technicalstaffs atBasda Medicalare the one of the earliest technical teams engaging in medical magnetic resonance R&D in China. Our company has obtained several hundred intellectual property rights such as patents, software copyright, proprietary technologies, etc. as the core R&D team collaborate to break through the technical barriers, master the key algorithms, conquer the main components and achieve the system innovation. Insisting on self-innovation while rooted in effective cooperation mechanisms on production, study, research and clinical trial, Basda Medical has established long-term partnership with China’s best knownuniversities such as Peking University, Harbin Institute of Technology, Southern Medical University and etc.



Basda Medicalwon numerous honors and was qualified as "National High-tech Enterprise", “Second Place of National Technology Invention", "Key Hi-tech Enterprise of State Torch Program", "First Place of China Machinery Industry Science and Technology Award", "ProvincialHigh Field MRI System Engineering and Technology R&D Center", "Shenzhen Technology Innovation Award", “Intellectual Property Management System”, etc.. Furthermore, numerous technology innovation and projects gained financial support and partnering from major investment institutions, national and regional government.



Basda Medical specializes in progressive medical imaging technologies including 9 series with over 100 products. Today, weare pioneering medical imaging trends with the MRI series, and are rapidly developing X-Ray series such as CT scanner and DR, as well as color doppler ultrasound products,and the radiotherapy products.



Specifically, our products in the permanent MRI system series have varying magnetic field strengths of 0.20T, 0.30T, 0.35T, 0.42T and 0.50T respectively. Our superconductive MRI systems have magnet filed strength range from 0.5T, 0.52T, 0.7T, 1.2T, 1.49T, 1.5T to 3.0T. On the other hand, our CT scannerseries has products with various slide widths of 16 slice, 32slice and 64 slice. Moreover, the products in the DR series include ceiling suspension DR, U-arm DR, mobile DR, digital X-Ray, DRF system, and digital mammography. Furthermore, our color doppler ultrasound system products range from portable, wireless to trolley products. Lastly, we also provide medical linear acceleratorradiotherapy series and nuclear medicine series such as positron emission computed tomography(PET-CT), single-photon emission computed tomography (SPECT), wide FOV gamma camera, etc.



5 out of 9 series products of Basda Medical are included in the key research areas of China’s government directed program "Made in China 2025". Basda Medicalhas high profile among China’s medical imaging manufacturers due to several facts. We are known as the one of the earliest manufacturers of 3.0T MRI system in China. We successfully developed the world's first 0.5T and 0.7T open superconducting MRI systems. We producedChina’s first specialized extremity MRI systems and first SPECT with independent intellectual property right. With a decades-long track record of delivering high quality, high-tech products and excellent service, At present, it has more than 3000 global users, becoming the backbone of import's high-end medical products substitution, our markets cover all domestic provinces and more than 40 countries and regions globally ranging from Europe, America, Africa, the Middle East, to Asia.
