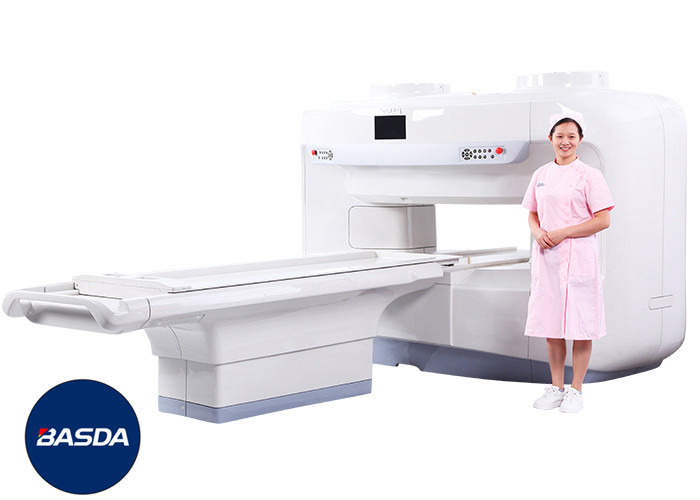

0.7T Open Type MRI Machine Superconductive Eddy Zero Self Shielding Type Bstar-070

0.7T Open Type MRI Machine Superconductive Eddy Zero Self Shielding Type Bstar-070

  • 0.7T Open Type MRI Machine Superconductive Eddy Zero Self Shielding Type Bstar-070
0.7T Open Type MRI Machine Superconductive Eddy Zero Self Shielding Type Bstar-070
Product Details:
Place of Origin: Guangdong, P.R.C.
Brand Name: Basda Medical
Certification: CE, ISO13485
Model Number: Bstar-070
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 1 unit/wooden box
Delivery Time: 30-45 Days
Payment Terms: Credit card, Paypal, T/T, Western Union, MoneyGram
Supply Ability: 200 Machines per Year
Contact Now
Detailed Product Description
Name: Superconductive MRI Capacity Of The Helium: No More Than 120 Liters
Magnet Strength: 0.7T Technology: Eddy Zero
Table Load: Up To 230 Kg Shielding Type: Self Shielding Type
High Light:

0.7T open type MRI machine

,

Eddy Zero open type MRI machine

,

Superconductive wide open mri machine





Coils

  • Auto recognized PA coils
  • Flexible coil configuration, cover the full body scans

0.7T Open Type MRI Machine Superconductive Eddy Zero Self Shielding Type Bstar-070 0



Imaging Technology



  • Short scan time, high image quality provide clinical confidence



Evolution Compared To Conventional MRI:

Low investment & high revenue comes with comprehensive service guarantee. This high cost- performance MRI system is zero consumption and superior low volume of liquid helium to ensure the minimum consumption. Independently-developed core technologies and compact structure design ensure the minimum installation area.



In the magnet structure, Bstar-070 uses liquid helium get the superconductive environment, and equipped by multiple Helmholtz superconducting coil charging with current to generate the magnetic field, the magnetic field strength is 0.7T.



The Helmholtz coil is made of a number of same radius coil, the coils are coaxial concatenated placed. The coil array can generate up to dozens tesla's magnetic field.



The magnet system config with two sets of superconducting coil, inside set and outside set. The inside coil is used to generate the magnetic field, the outside coil is used to limit the scope of magnet field, nameed "magnet curtain technology", with this technology the magnetic field can be limited in the range at minimum range. Two sets of coils are well connected to ensure the reliability and security of the system, together with dynamic shimming technology, the system can perform well at any time.

Bstar-070 using active and passive shimming technology, to ensure that the magnet field has a good uniformity, and the good magnet field uniformity is the cornerstone of good image quality and large FOV clinical application, even if the scanning field reaches 45cm, the system also can obtain good images.

Bstar-070 uses less than 120L liquid helium content, (when regular 1.5T superconductive MRI systems usually uses more than 1500L), even in case of quenching, the customer also do not need to worry about maintenance costs. The system uses 4k cold head imported from Japan, provide “liquid helium zero consumption technology”, the filling cycle of liquid helium is 4 years or longer.

Conventional superconductive MRI uses water-cooled helium compressor, the helium compressor need to continue working to keep the magnet temperature at superconductive environment, its cost on the electricity and water is a very large. Bstar-070 innovatively uses the air-cooled helium compressor, greatly reduce the electricity bills, and zero water consumption, help the user to save money.




Special Characteristic of This Product:

A, very large open space;

B, very good magnet stability without the interference of magnet temperature.

C, very good magnet field homogeneity.

D, Liquid helium only 120L, much better than any 1.5T MRI system.

E, 46cm magnet gap, even better than permanent MRI system.

F, perfectly support the MRI intervention operations.









0.7T Open Type MRI Machine Superconductive Eddy Zero Self Shielding Type Bstar-070 1

BTI-030 0.3 Tesla Permanent MRI Installed In Prague, Czech

Tag:

40cm Gap 0.3 tesla mri machine,

0.5 Tesla Open Air Mri Machine,

40cm Gap 0.3 Tesla Open MRI Machine
