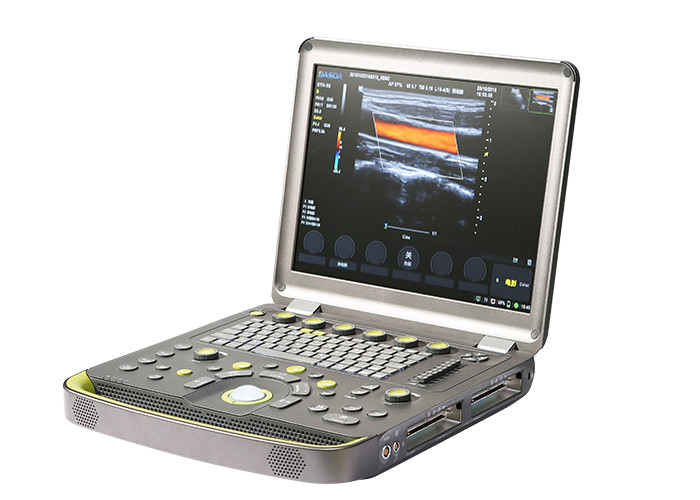

3D Color Doppler Laptop Ultrasound Scanner Triplex Synchronous Trapezoidal Imaging

3D Color Doppler Laptop Ultrasound Scanner Triplex Synchronous Trapezoidal Imaging

  • 3D Color Doppler Laptop Ultrasound Scanner Triplex Synchronous Trapezoidal Imaging
3D Color Doppler Laptop Ultrasound Scanner Triplex Synchronous Trapezoidal Imaging
Product Details:
Place of Origin: China
Brand Name: BASDA
Certification: NMPA, ISO9001, ISO13485
Model Number: BTH-50S
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 1 unit/form package in wooden box
Delivery Time: 5-8 Work Days
Payment Terms: Credit card, Paypal, T/T, Western Union, MoneyGram
Supply Ability: 100 Units Per Month
Contact Now
Detailed Product Description
Clinical Type: Color Doppler Size Of The Equipment: 370mm×355mm×65mm
Size Of The Package: 660mm×545mm×500mm Array Element: 128
Standard Probes: Linear And Convex Probes Beamformer: 64 Channels
High Light:

Color Doppler Laptop Ultrasound Scanner

,

Triplex Synchronous Laptop Ultrasound Scanner

,

Trapezoidal Imaging Portable Ultrasound Device

BTH-50S Portable Color Doppler Ultrasound doppler spectrum 2 probe sockets large volume battary


1 Application
It is mainly applied for ultrasonic diagnosis and scientific research of Abdomen / Cardiac / Obstetrics / Gynecology / Fetal Cardiology / Transcranial Doppler / Small Parts / Vascular / Orthopedics / Hearts.


Technology



Function
Tissue harmonic imaging
Harmonic fusion imaging
Spatial composite imaging
Lateral gain compensation
Ultra-wide steer angle
Multi sampling gates
Time-spatial speckle suppression imaging
Automatic intima media thickness measurement
Automatic spectrum tracking measurement
Duplex & Triplex Synchronous Display
Directional Power Doppler
Imaging Parameters Preset
Tissue Special Image
PW Auto Trace
Update in line
CF+B mode in one screen
Complex Model Imaging
IMT auto measurements
Virtual convex array
Trapezoidal imaging



Pan/Zoom


Real-Time Image Zoom, Zoom Range: 100%~400%, Up/Down/Left/Right Inversion




Hardware Specification


LCD Monitor







Imaging Modes



B, 2B, 4B, M, B/M, B/C, B/D, B/C/D, B/CFM/D, PDI Color, Dual Color, Simultaneous 2D/Color Compound, PW, Duplex/Triplex, CFM, CDE, PD, Directional PD, CD




Probe:

Probe specification:

3.2.1 Support transducer type: convex array, linear array, phased array, and endocavity
3.2.2 The maximum number of array elements: ≥ 192
3.2.3 Transducer supports biopsy guide
3.2.4 Frequency range:
  • Convex array transducer frequency: 2.5-5.5 MHz
  • Phased array transducer frequency: 2.5-4.5 MHz
  • Linear array transducer frequency: 5.0-12.0 MHz
  • Endocavity transducer frequency: 5.0-8.0MHz
3.2.5 Imaging modes:
  • Convex array transducer: B/M/CDI/PWD
  • Linear array transducer: B/M/CDI/PWD
  • Endocavity transducer: B/M/CDI/PWD
  • Phased array transducer: B/M/CDI/PWD/CWD





3D Color Doppler Laptop Ultrasound Scanner Triplex Synchronous Trapezoidal Imaging 0






The system has the advanced imaging technology and many unique features:

Holo Platform

3D Color Doppler Laptop Ultrasound Scanner Triplex Synchronous Trapezoidal Imaging 1


Holo PW technology
• Max 3 sample gates simultaneous
• Allow to move each gate in real-time mode and frozen status.
• Used before, at & after vascular pathologic change position with synchronized one heart beat measurement.
• Holding breath becomes a history. With Holo PW, user can acquires several vessels at same time, such as renal artery and vein.




Spatial-Time Speckle Reduce Technology
• Noise movement trace is random
• Like Brown movement
• Based on the HOLO TM platform, system capture the noise with high frame rate
• Reduce the noise in the spatial and time two dimensions



Ultra-wide Accurate Steer imaging
• High performance probe with ultra-wide beaming
• Maximum steer angle for linear probe is 30°
• The minimum step size is 1°
• Accurate matching human blood vessels path
Obtaining more stronger Doppler signal, getting better spectrum and blood flow images


B independent steering
• The steering can make the needle tip and needle path more clear
• B images also support ultra-wide angle accurate steering



FZoom function

  • One key zoom the image in the full screen
  • For the anesthesia application, the doctor can see the image clearly


After the normal measurement, you can name this application measurement item base on the value result. In daily clinical applications, it can help doctors to simplify the operation, to avoid duplication of measurements, to shorten the time of bed in next checking.

Movie dynamic storage

Complete recording operation process, adjust the depth, switch to the Color mode, you can provide a complete teaching demonstration video for anesthesia and so on
Most of competitors do no support such function
