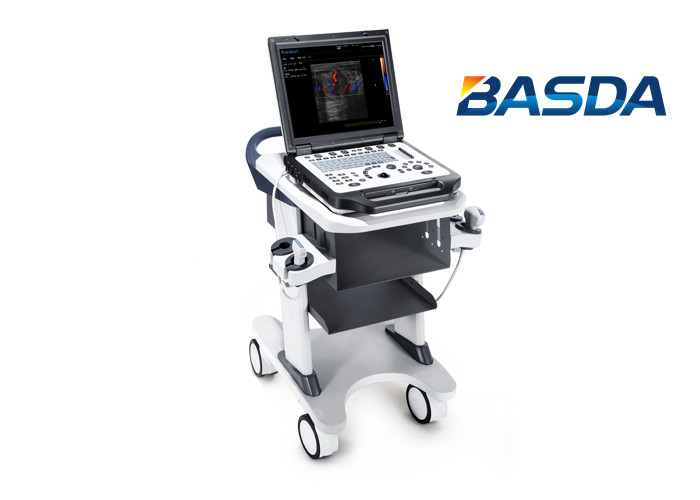

Convex Probe Portable Ultrasound Scanners 120VA BTH-20S For Orthopedics

Convex Probe Portable Ultrasound Scanners 120VA BTH-20S For Orthopedics

  • Convex Probe Portable Ultrasound Scanners 120VA BTH-20S For Orthopedics
  • Convex Probe Portable Ultrasound Scanners 120VA BTH-20S For Orthopedics
Convex Probe Portable Ultrasound Scanners 120VA BTH-20S For Orthopedics
Product Details:
Place of Origin: China
Brand Name: BASDA
Certification: NMPA, ISO9001, ISO13485
Model Number: BTH-20S
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 1 unit/form package in wooden box
Delivery Time: 5-8 Work Days
Payment Terms: Credit card, Paypal, T/T, Western Union, MoneyGram
Supply Ability: 100 Units Per Month
Contact Now
Detailed Product Description
Clinical Use: Multiple Clinic Application Product Type: Portable, Desktop
Standard Probe: Convex And Linear Screen Size: 15-inch
Input Voltage: AC 100-242V Measurement: Auto
High Light:

Orthopedics Portable Ultrasound Scanners

,

Convex Probe Portable Ultrasound Scanners

,

120VA Portable Ultrasound Device

BTH-20S Portable Color Doppler Ultrasound Factory Price 3D Color Doppler ultrasound Machine



Application



Abdomen / Cardiac / Obstetrics / Gynecology / Fetal Cardiology / Transcranial Doppler / Small Parts / Vascular / Orthopedics



Physical Specifications


Dimensions and Weight

  • Equipment size: 360mm×360mm×80mm

  • Equipment weight: 5.5kg

  • Packing size: 495mm×495mm×315mm

  • Packing weight: 9 kg


System Configuration
Standard Configuration
Display
  • 15-inch LCD
  • Flicker-Free
  • Contrast & Brightness adjustable
  • Screen Saver: Time adjustable
  • Angle adjustable







Tech Specifications



ePure

  • Intelligent speckle noise suppression technology can intelligently identify different tissue information in different spatial dimensions point-to-point, suppress the edge information display of speckle noise, and make the image more exquisite.

eSCI

  • Electronic space composite imaging technology can update the echo signals received from different angles in real time through multi-angle deflection scanning in space and continuously update fusion imaging. On the premise of ensuring the time resolution.

eFCI

  • The function can automatically identify and measure the thickness of endovascular media. At the same time, the measurement report of inner and middle membrane thickness is provided to users with more accurate and more efficient assessment information of vascular diseases.

eView

  • Ultra-wideband Imaging with expansion of the special tissue anatomical structure through visualization to provide more and more complete tissue relationship information.

eSpeed

  • The function could help process clear images automatically depending on different exam modes which could enhance the efficiency for users.





Application:

Multiple Clinic Application
Product Usage
Application Directions

  • Digestive System: liver, gall bladder, pancreas, stomach
  • Urology System: kidney, ureter, bladder, prostate gland
  • Genital System: ovary, womb/testicle, pregnancy check
  • Surgery: abdomen, superficial masses, abdominal tumor and effusions
  • Others: cardiology, thyroid, joint


General Specification


Power Supply
  • Input Voltage: AC 100V-242V
  • Input Power: 120VA
  • Frequency: 60Hz/50Hz
  • Continuous Working Time >2.0h
  • Li-battery: BT10G /10.0A/11.1V

Ambient Conditions

Operation Conditions
  • Temperature: +5℃~+40℃
  • Relative humidity: ≤80%
  • Atmospheric pressure: 700hPa~1060hPa


Transportation and Storage

Transportation
  • Environmental temperature range: -40℃~+55℃
  • Relative humidity range: ≤95%
  • Atmospheric pressure range: 500hPa~1060hPa

Storage
  • Environmental temperature range: -20℃~+40℃
  • Relative humidity range: ≤80%
  • Atmospheric pressure range: 500hPa~1060hPa

Convex Probe Portable Ultrasound Scanners 120VA BTH-20S For Orthopedics 0








Imaging Performance


Startup Time (Max):Avg. < 90 seconds


Preset Switching Time:Avg. < 1 second


Storage Time (Image to Disk):Avg. < 0.5 second





Probe





Probe Convex Array Probe Linear Array Probe Intra-Cavity Probe Micro-convex probe Micro-convex probe (optional)
Frequency Central 3.5 MHz
(2.0MHZ to 5.0MHZ)
Central 7.5 MHz
(5.0MHZ to 12.0MHZ)
Central 6.5 MHz
(5.0MHZ to 10.0MHZ)
Central 4.0 MHz
(2.5MHZ to 5.0MHZ)
Central 4.0 MHz
(5.0MHZ to 10.0MHZ)
Pitch 0.516mm 0.352mm 0.216mm
Radius 60mm N/A 10 mm
Elements 128 128 128 128







Convex Probe Portable Ultrasound Scanners 120VA BTH-20S For Orthopedics 1
