BTH-50 system features

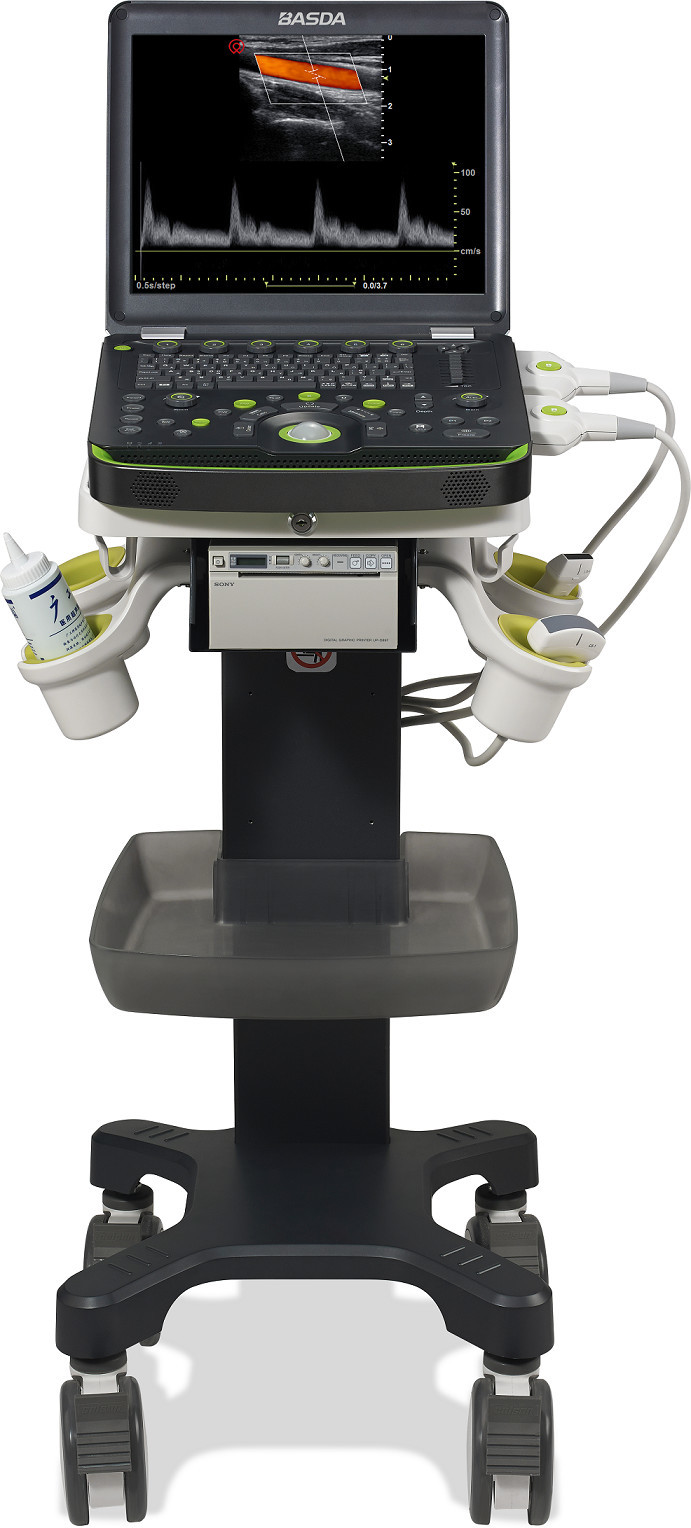

BTH-50 is a portable color Doppler ultrasound systems that suitable for versatile applications:

• Vascular, MSK
• Small Part
• Point of care
• Internal Medine
• OB/ GYN
• Sport Medicine

The system has the advanced imaging technology and many unique features,

Holo Platform

Holo PW technology

• Max 3 sample gates simultaneous

• Allow to move each gate in real-time mode and frozen status.

• Used before, at & after vascular pathologic change position with synchronized one heart beat measurement.

• Holding breath becomes a history. With Holo PW, user can acquires several vessels at same time, such as renal artery and vein.

Spatial-Time Speckle Reduce Technology

• Noise movement trace is random

• Like Brown movement

• Based on the HOLO TM platform, system capture the noise with high frame rate

• Reduce the noise in the spatial and time two dimensions

Ultra-wide Accurate Steer imaging

• High performance probe with ultra-wide beaming

• Maximum steer angle for linear probe is 30°

• The minimum step size is 1°

• Accurate matching human blood vessels path

Obtaining more stronger Doppler signal, getting better spectrum and blood flow images

Extend FOV

B independent steering

• The steering can make the needle tip and needle path more clear

• B images also support ultra-wide angle accurate steering

FZoom function

• One key zoom the image in the full screen
• For the anesthesia application, the doctor can see the image clearly

After the normal measurement, you can name this application measurement item base on the value result. In daily clinical applications, it can help doctors to simplify the operation, to avoid duplication of measurements, to shorten the time of bed in next checking.

Movie dynamic storage

Complete recording operation process, adjust the depth, switch to the Color mode, you can provide a complete teaching demonstration video for anesthesia and so on

Most of competitors do no support such function

5s start-up

No matter the emergency time, intensive time, or windy rain weather outside, the clover in order to save the valuable time not more than golden 120s for the critically patient. It can be rapid start-up of the 5S and excellent image, convenient operation.

Auto Doppler

• One button press: B, PW, Color

• Auto location the ROI on the vessel

• PW & Color Steer angle auto optimization

• PW SV size, position and correct angle

• High efficiency, save time

Needle Enhancement

Auto adjustment the steer angle

Improve the efficiency without manual adjustment angle

IMT

Auto position the ROI and measurement result

Revise ability the ROI size and position

BTH-50 is your best choice in portable ultrasound systems.
