| Place of Origin: | CHINA |
| Brand Name: | BASDA |
| Certification: | ISO |
| Model Number: | BTR-500NS |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | WOOD BOX |
| Delivery Time: | 5-8 Work Days |
| Payment Terms: | T/T, L/C, Western Union, FOB, CIF, EX-WORK |
| Supply Ability: | 300 Machines per Year |
| Type: | U Arm | Power Input: | A.c 380V, 50/60Hz |
|---|---|---|---|
| Ratio: | 10:1 | Rotation Speed: | 2700 Rpm |
| SID: | 1000mm～1800mm | Density: | 40L/cm |
| High Light: | FPD Type Digital X Ray Machine,Electric Movement Digital X Ray Machine,FPD Type digital x ray equipment |
||
Product Description

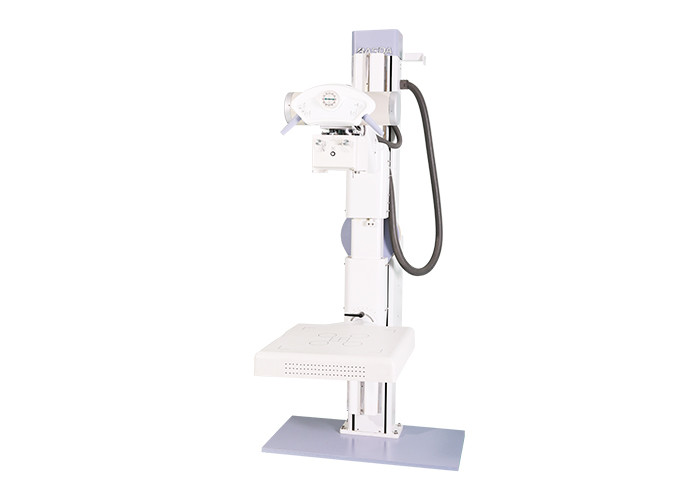

BTR-500YS/BTR-500NS
① Innovative straight U arm design
② Full size CsI Digital imaging detector (None CCD)
③ Acquisition and processing workstation
④ Room-saving
⑤ Power assistant steering control
Patents
• Obtained 100+ patents, software copyrights and proprietary technologies
• Granted “Second Prize of National Technology Invention” by the president of China in January 2018
• "State High-tech Enterprise"
• "Key Hi-tech Enterprise of State Torch Program"
• "First Prize of China Machinery Industry Science and Technology Award"
• “Second Prize of National Technology Invention"
Parameters
| No. | Item | Specification |
| 1 | X ray generator | |
| 1.1 | Max.kV | 150KV |
| 1.2 | Max.mA | 630mA |
| 1.3 | Power input | a.c 380V, 50/60Hz |
| 1.4 | APR | Yes |
| 1.5 | Max. output power | 50KW |
| 2 | X ray tube | |
| 2.1 | Focus | 0.6mm/1.2mm |
| 2.2 | Tube voltage | 40kV - 150kV |
| 2.3 | Max. anode heat capacity | 150kHU |
| 2.4 | Max. sheath heat capacity | 1250kHU |
| 2.5 | Rotation speed | 2700 rpm |
| 2.6 | Cooling type | Air |
| 3 | Detector | |
| 3.1 | FPD type | CsI, a-Si |
| 3.2 | Imaging size | 17”* 17”(43cm * 43cm) |
| 3.3 | Pixel size | 139μm |
| 3.4 | Matrix | 3072×3072 |
| 3.5 | Preview time | <3s |
| 4 | Gantry | |
| 4.1 | Motion | Motorized |
| 4.2 | Gantry rotation | -30° - 120° |
| 4.3 | Gantry vertical movement | 1200mm |
| 4.4 | Gantry rotation | ±45° |
| 4.5 | SID | 1000mm～1800mm |
| 4.6 | Tube rotation | ±90° |
| 5 | Grid | |
| 5.1 | Density | 40L/cm |
| 5.2 | Ratio | 10:1 |
| 6 | Collimator | Manual |
| 7 | Table | |
| 7.1 | Size | 2000mm×700mm×650mm |
| 7.2 | Lock | Mechanical |
| 7.3 | Loading capacity | ≥200kg |
| 8 | Workstation | |
| 8.1 | CPU | ≥3.0GHz |
| 8.2 | OS | Windows |
| 8.3 | RAM | ≥2GB |
| 8.4 | HDD | ≥320GB |
| 8.5 | DVD/CD | ≥4.5GB |
| 8.6 | Resolution | 1920×1200 |
| 8.7 | Ethernet | 100BaseT/1000BaseT |
| 8.8 | DICOM3.0 | Yes |
| 8.9 | Monitor | ≥24” |
| 8.10 | Brightness | ≥250 CD/m2 |
| 9 | Workstation | |
| 9.1 | Image preview | Yes |
| 9.2 | Window level / window length | Yes |
| 9.3 | Negative / positive film | Yes |
| 9.4 | Image invert | Yes |
| 9.5 | Image rotation | Yes |
| 9.6 | Image pan | Yes |
| 9.7 | Image tailing | Yes |
| 9.8 | Contrast enhancement | Yes |
| 9.9 | Zoom in / out | Yes |
| 9.10 | R/L mark | Yes |
| 9.11 | Image saving | Yes |
| 9.12 | Patient inquiry | Yes |
| 9.13 | Image inquiry | Yes |
| 9.14 | DICOM recording | Yes |
| 9.15 | Disk space checking | Yes |
| 9.16 | Backup and old date deleting | Yes |
| 9.17 | Connection with PACS | Yes |
| 9.18 | Exposure control | Yes |
| 9.19 | Dose template customizing | Yes |
| 9.20 | Part template customizing | Yes |
| 9.21 | Positioning template customizing | Yes |
| 9.22 | Patient body form - dose preset | Yes |
| 9.23 | Online dose control | Yes |
| 9.24 | Generator focus control | Yes |
| 9.25 | Image measurement | Yes |
| 9.26 | Image marking | Yes |
| 9.27 | Tissue balance | Yes |
| 9.28 | Edge enhancement | Yes |
| 9.29 | Image auto reorganization | Yes |
| 9.30 | Post processing 1:1 preview | Yes |
| 9.31 | Dynamic range optimizing | Yes |
| 9.32 | Dynamic image curve compression | Yes |
| 9.33 | High frequency image enhancement | Yes |
| 9.34 | Noise reduction | Yes |
| 9.35 | Auto filter | Yes |
| 9.36 | Film layout setting | Yes |
| 9.37 | Film print setting | Yes |
| 9.38 | Auto layout | Yes |
| 9.39 | Connecting with camera | Yes |
| 9.40 | Film label setting | Yes |
| 9.41 | Printing queue | Yes |
| 9.42 | Printing priority setting | Yes |
