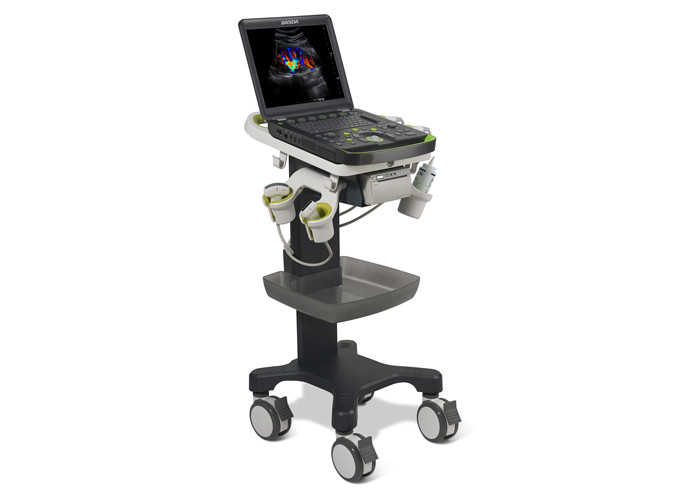

BTH-50S Portable Color Doppler Ultrasound doppler full body 2 probe sockets large volume battary
1 Application
It is mainly applied for ultrasonic diagnosis and scientific research of abdomen, obstetrics and gynecology, reproduction, blood vessels, heart, superficial tissue, breast, neonates, surgery, nerves, etc.
2 Specification:
2.1 Include:
2.1.1 High resolution B imaging
2.1.2 Color doppler imaging (CDI )
2.1.3 Pulse wave doppler (PWD)
2.1.4 Continuous wave doppler (CWD)
2.1.5 Power doppler imaging (PDI)
2.1.6 Direction Power doppler imaging (DirPDI)
2.1.7 M mode imaging
2.1.8 Multi angle M imaging
2.1.9 Tissue harmonic imaging
2.1.10 Real-time spacial composite imaging, both used for transmit and receive, ≥7 lines
2.1.11 Adaptive imaging enhancement, clear Speckle noise, improve resolution of tissue boundary contrast.
2.1.12 Frequency composite imaging, the transmitting frequency is adjusted adaptively and composited according to depth.
2.1.13 *Three PWD sampling gates and three PWD imaging appear simultaneously within one heart cycle
2.1.14 *Auto doppler blood vessel tracing: Auto locates the blood vessels, then adjusts the color ROI box position, steer angle, gate size, PWD steer angle and correction angle
2.1.15 Smart one key imaging optimization: optimize B, CDI, PWD imaging
2.1.16 Zoom in full screen
2.1.17 Real-time zoom
2.2 Measurement and analysis:
Preset parameters: for different examined organs, the optimal image examination parameters are preset to reduce the adjustment during operation; users are permitted to define and save preset parameters
2.3 Patient data management:
2.3.1 Patient data include: personal information, image, cine, report, etc
2.3.2 Patient data establishment, storage, playback, modification, retrieval and printing
2.3.3 Built-in integrate ultrasound workstation
2.3.4 Image storage format: PNG, JPEG, BMP
2.3.5 Cine storage format: AVI
3 Technical parameters:
3.1 System general configure:
3.1.1 Full digital uwb beamformer: digital channels ≥ 28672
3.1.2 A/D sampling ≥ 14 BIT
3.1.3 15 inch high resolution LED color monitor
3.1.4 Net weight built-in battery: ≤ 5 kg
3.1.5 Operation panel:physical keyboard and mechanical trackball
3.1.6 *Dual transducer connectors, non-extended connector
3.1.7 Battery life on real-time scanning: ≥ 70 min
3.1.8 SSD≥250G
3.1.9 Interfaces: network, HDMI, S-video, VGA,USB
3.1.10 Support U disk or mobile HDD storage
3.1.11 Support black white printer and color printer
3.1.12 Optional special trolley with storage box
3.2 Transducer specification:
3.2.1 Support transducer type: convex array, linear array, phased array, and endocavity
3.2.2 The maximum number of array elements: ≥ 192
3.2.3 Transducer supports biopsy guide
3.2.4 Frequency range:
- Convex array transducer frequency: 2.5-5.5 MHz
- Phased array transducer frequency: 2.5-4.5 MHz
- Linear array transducer frequency: 5.0-12.0 MHz
- Endocavity transducer frequency: 5.0-8.0MHz
3.2.5 Imaging modes:
- Convex array transducer: B/M/CDI/PWD
- Linear array transducer: B/M/CDI/PWD
- Endocavity transducer: B/M/CDI/PWD
- Phased array transducer: B/M/CDI/PWD/CWD
3.3 B imaging parameters:
3.3.1 Display mode: B, B/B,4B, M,B/M
3.3.2 Gain adjustment: TGC ≥8; LGC ≥2
3.3.3 Transmit beam focusing: ≥ 4
3.3.4 Gray scale: ≥ 256
3.3.5 Scanning depth: ≥ 29cm
3.3.6 Visual and adjustable dynamic range: 30 ~ 180dB
3.3.7 Cineloop: B images playback ≥16000 frames
3.3.8 B scanning rate:
- phased array transducer: when depth is 18 cm, the full-field scanning
- frame rate ≥70 f/s
- convex array transducer: when depth is 18 cm, the full-field scanning
- frame rate ≥79 f/s
3.4 Color doppler imaging parameters:
3.4.1 Type: CDI, PDI, Dir PDI
3.4.2 Display modes: B/CDI, B/PDI, B/Dir PDI
3.4.3 B and color dual real-time contrast
3.4.4 Zero movement: ≥8 levels adjustable
3.4.5 Steer angle: linear array transducer image steer range: -30°~ +30°
3.4.6 Color scanning rate:
- phased array transducer: when depth is 18 cm, the full-field scanning frame rate ≥ 16 f/s
- convex array transducer: when depth is 18 cm, the full-field scanning frame rate ≥ 8 f/s
3.5 Spectral doppler imaging parameters:
3.5.1 Type:PWD,CWD,HPRF
3.5.2 Display modes: B/PWD, B/CWD, B/HPRF, B/CDI/PWD, B/CDI/CWD, duplex/triplex
3.5.3 The maximum blood flow velocity : ≥8.5 m/s by PWD ; ≥35 m/s by CWD
3.5.4 The lowest blood flow velocity:≤3 mm/s (non-noise signal)
3.5.5 Cineloop:≥ 400s,cineloop of doppler mode and M mode can be measured and calculated
3.5.6 Zero movement: ≥8 levels
3.5.7 Sampling width and position range: 1- 30 mm grading
3.6 Specification
- Holographic Ultrasound Platform
- Triple Sampling Gates of PW (Pulse Wave) Doppler
- Speckle Noise Suppression Technology
- Space and Frequency Composite Imaging
- One-Click Automatic Optimization
- Automatic Tracking and Measurement
- Ultra-rapid Intelligent Search
