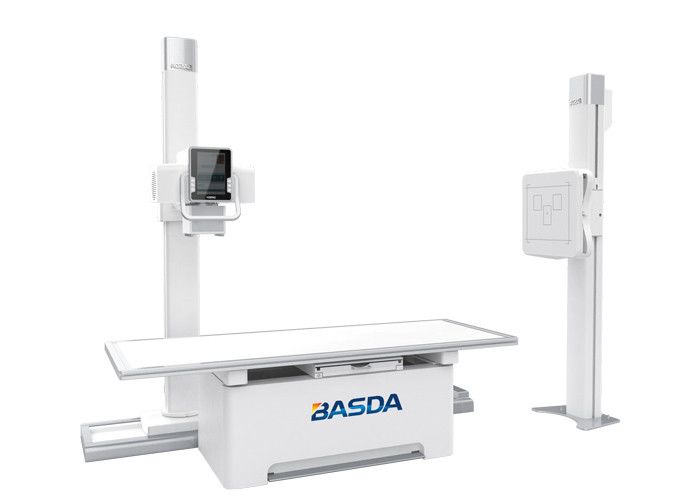

BTR-650B DR system 65kW DDR 1/2 FPD Dual Column Digital X-Ray Machine

BTR-650B DR system 65kW DDR 1/2 FPD Dual Column Digital X-Ray Machine

BTR-650B DR system 65kW DDR 1/2 FPD Dual Column Digital X-Ray Machine
BTR-650B DR system 65kW DDR 1/2 FPD Dual Column Digital X-Ray Machine
BTR-650B DR system 65kW DDR 1/2 FPD Dual Column Digital X-Ray Machine
Product Details:
Place of Origin: Guangdong, P.R.C.
Brand Name: Basda Medical
Certification: CE, ISO13485
Model Number: BTR-650B
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: 1 unit/wooden box
Delivery Time: 5-8 Work Days
Payment Terms: Credit card, Paypal, T/T, Western Union, MoneyGram
Supply Ability: 300 Machines per Year
Contact Now
Detailed Product Description
Type: DDR Gantry: Floor Mounted
Another Name: Dual Column X-Ray Machine Tube: Large Capacity
CPU: 3.2GHz Detector: Flat Panel Detector


BTR-650B

Product Description

  • Digital X-Ray flat panel detector
  • Acquisition and processing workstation
  • Fully automatic tracking and positioning
  • Intelligent control
  • Advanced image processing software
  • AEC function and DAP function


Automatic background recognition removal technology



  • The software automatically identifies and removes artifacts and grids outside the anatomical structures of various parts of the human body, maximizing effective tissue contrast and resolution.
  • The images quality are shown below.



Optimized full spinal stitching function

  • Self-developed algorithm and technology, can easily complete the seamless stitching of the whole spine imaging, overcoming the inconsistent gray and dark contrast of the traditional stitching image.
  • The image quality is shown below.



Unique post-processing optimization techniques

  • Unique post-processing optimization technique spatially fills the original image captured by the detector, improving data integrity makes the edges of the tissues sharper, the tissue hierarchy better, the structure is clearer and the image uniformity is more consistent.
  • Taking the region of complex bony structures as an example, the pre-optimization (left) and post-optimization (right) results are shown below.




Ergonomic software design

  • Independent technician accounts: the system can assign a separate account to each operator technician, each of which can store their unique usage habits.
  • Including exposure data, sending and printing habits, etc., technicians do not interfere with each other.
  • Graphic design APR, objective and clear.
  • The software includes modules for patient management, image acquisition, image post-processing, film printing, remote support, etc., which can be used for multiple purposes and effectively save costs for the hospital.
  • Image data can be taken and used on traditional media such as CDs, DVDs, portable hard drives, etc., or can be generated in common PC formats such as DICOM protocol supports PACS or RIS, facilitating efficient data management, printing, and other functions., archiving, etc.



AEC

  • Air Ionization Chamber is a detector that uses the ionization effect of ionizing radiation to measure the ionizing radiation to achieve automatic exposure control.
  • The function. The ionization chamber is divided into three advantageous areas of multiple choice according to the characteristics of the human body.
  • The software will preset different advantageous zone combinations on the operation panel of the high voltage generator according to different parts of the film, so there is no need to select them manually.



Simple design exposure console

  • HV on
  • HV ready
  • HV off
  • Exposure ready
  • Exposure



Full feature in-room console

  • Selecting the location for photography
  • SID
  • Tube height
  • Detector height
  • Angle of column rotation
  • mAs value
  • mA value
  • kV value
  • mAs value
  • AEC (automatic exposure control)
  • Density value
  • Selection of large and small focus points
  • Exposure Icon
  • Detailed information about thermal capacity

BTR-650B DR system 65kW DDR 1/2 FPD Dual Column Digital X-Ray Machine 0

Specification:

No. Part Specification
  Power input 220V, 5kW
1 High voltage generator Power output: 50kW
Max. kV value: 150kV
Max. mA value: 630mA
Min. exposure time: 1ms
Min. mAs: 0.4mAs
With APR function
HV console at workstation
With AEC link function
Inverter frequency: 100kHz
2 Console

CPU :3.2GHz

OS:win 7

RAM:8GB

HDD:1000GB

DVD recorder: 4.5GB

Ethernet: 100BaseT/1000BaseT

Comply DICOM3.0 including print, storage, CD/DVD, transfer / receive and worklist

LCD size:≥19"

Mouse and keyboard

Patient register module

Exposure parameter module

3D APR function

Image view and process module

Print module

3 Tube Brand: Toshiba
Anode rotation speed: 9000rpm
Max peak X-ray tube voltage: 150KV
Anode heat storage capacity: 300kHU
Focal spot: 0.6mm/1.2mm
4 Gantry Type: dual column
With auto tracking function
Tube console parameter: exposure, SID, tube angle, focal spot, AEC
Tube console size: 10.1”
Detector support longitudinal movement range:≥1800mm
Detector support vertical movement range:≥1000mm
Tube support rotation range ≥360°
5 Collimator

Manual control

Coherent filter: 1.0-1.3mmAL

Adjustable filter: 0.5/1.0mmAL

Min. exposure field: 10mm×10mm

Max. exposure field: 430mm×430mm;

6 Detector Material: ASi-CsI
Mobile type
Min. pixel size: 140um
A/D: 16bit
Space resolution: 3.6lp/mm
Preview time: 3s
Detector size: 17” * 17”
Matrix: 3000 * 3000
9 Cable

>9m
