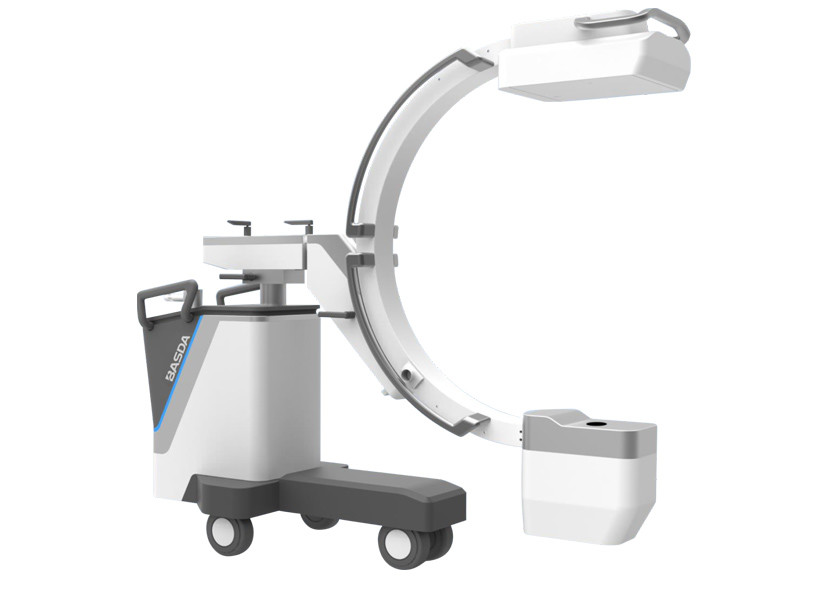

BTC-1600 C-arm System middle C arm large open gap low dose mobile

BTC-1600 C-arm System middle C arm large open gap low dose mobile

  • BTC-1600 C-arm System middle C arm large open gap low dose mobile
BTC-1600 C-arm System middle C arm large open gap low dose mobile
Product Details:
Place of Origin: Guangdong, P.R.C.
Brand Name: Basda Medical
Certification: CE, ISO13485
Model Number: BTC-1600
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: 1 unit/wooden box
Delivery Time: 5-8 Work Days
Payment Terms: Credit card, Paypal, T/T, Western Union, MoneyGram
Supply Ability: 300 Machines per Year
Contact Now
Detailed Product Description
Type: C Shape Detector: Large
Application: Otho Color: White
Matrix: 2048×1792 Ghost(%,300uGy,60s): ﹤0.25

Product Description



BTC-1600



         •  Digital image acquisition, processing, display

           High resolution images for complex surgery

           16KW output power

           With DSA function for comprehensive clinical applications.

           Unique C-arm ratation





  Item Specification
 ① FPD type a-Si
 ② Scintillator Csl
 ③ Image size 250.88×286.72
 ④ Matrix 2048×1792
 ⑤ Pixel size 140um
 ⑥ A/D converter 16bit
 ⑦ Min. detect dose 14nGy
 ⑧ Max. linear dose(uGy,RQA5) 110
 ⑨ Max. frame rate(1×1,140um,2048×1792) 14
 ⑩ Max. frame rate(2×2,280um,1024×896) 30

 ⑪ Max. frame rate

(4×4,560um,512×448,Under Development)

60
  MTF@1.0LP/mm 0.60/0.65/-
 ⑬ MTF@2.0LP/mm 0.30/0.33/-
 ⑭ MTF@3.0LP/mm 0.15/0.18/-
 ⑮ DQE@0.0LP/mm(2.5uGy) 0.58/0.60/-
 ⑯ DQE@1.0LP/mm(2.5uGy) 0.43/0.45/-
 ⑰ DQE@2.0LP/mm(2.5uGy) 0.30/0.32/-
 ⑱ DQE@3.0LP/mm(2.5uGy) 0.13/0.15/-
 ⑲ Ghost(%,300uGy,60s) ﹤0.25
 ⑳ Space resolution 3.6LP/mm
 ㉑ kV range 40-150KV
 ㉒ Data interface Gig/802.11sc
 ㉓ Power 20W
 ㉔ Input voltage DC 24V,60W
 ㉕ Detector size 278.16×315×18.05
 ㉖ Detector weight 4.3kg
 ㉗ Detector cover material Carbon, Al Alloy
 ㉘ Water proof level lPX3
 ㉙ Working environment 5-35℃,10-75%RH
 ㉚ Diameter 1300mm
 ㉛ SID ≥1100mm
 ㉜ C arm depth ≥720mm
 ㉝ Horizontal movement range 0~200mm
 ㉞ Vertical movement (motorized) 0~400mm
 ㉟ Horizontal swing range ±15°
 ㊱ Horizontal rotation ±180°
 ㊲ Tracking slide range ±90°
 ㊳ Diagnostic space ≥1000mm
 ㊴ Laser positioning Yes
 ㊵ Grid ratio 8:1
 ㊶ Focus distance 1m
 ㊷ Cart Can place workstation, printer, monitor
 ㊸ Workstation

Dual core

4G ram

1T HDD

USB3.0

 ㊹ Monitor

1920*1080

23” monitor * 2 sets

 ㊺ Generator power (380V input) 17KW(40khz)
 ㊻ IBS function Yes
 ㊼ Pulse fluoroscopy function Yes
 ㊽ Organ key Yes
