300 Liters Low Helium Superconducting MRI Scanner 0.52T Open MRI Machine Foldable Coil Bstar-052

300 Liters Low Helium Superconducting MRI Scanner 0.52T Open MRI Machine Foldable Coil Bstar-052

  • 300 Liters Low Helium Superconducting MRI Scanner 0.52T Open MRI Machine Foldable Coil Bstar-052
300 Liters Low Helium Superconducting MRI Scanner 0.52T Open MRI Machine Foldable Coil Bstar-052
Product Details:
Place of Origin: China
Brand Name: BASDA
Certification: ISO13485
Model Number: Bstar-150F
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 unit/wooden box
Delivery Time: 30-45 Days
Payment Terms: Credit card, Paypal, T/T, Western Union, MoneyGram
Supply Ability: 200 Machines per Year
Contact Now
Detailed Product Description
Highlight Feature: Low Liquid Helium Water Cooling Gradient: Yes
Volume Of Helium: ≤300 Liters Digital Fiber Channel: 16
Gradient Cooling System: Water Cooling Magnet Length: ≤ 1.34m
High Light:

300 Liters Superconducting MRI Scanner

,

Foldable Coil Superconducting MRI Scanner

,

0.52T Open MRI Machine

Basda Launched China's First Low Liquid Helium 0.52T Superconducting MRI System





Basda Medical has been a leader in China’s MRI field for many years, not only with its range of bench top scanners but also with its digital X Ray machine, ultrasound and nuclear medicine machine, which have the widest range of capabilities both for pre-clinical and whole body scanners.

The new product is innovative 16-Channel Digital Fiber Spectrum Meter: cost-effective design with independent innovation spectrum meter which was qualified with SGS Standards which is the highest quality certification international standard since 1991





What is new about the world's first bore type 0.52 Tesla superconducting MRI system?

  1. Shortest closed magnet: 1.34 Meters
  2. Lighter weight: 2.3 Tons
  3. Smaller space: only 22 Squared Meters Scanning Room Space
  4. Low Liquid Helium: Only 300 Liters required
  5. Lower height allows various ways of transportation: less than 2 meters
  6. Lower requirements on RF cage size: 2.3m * 2.3m * 3.7m
  7. High-performance gradient: Maximum gradient strength:30mT/m
  8. Maximum gradient slew rate:120T/m/s
  9. Cooling Gradient: Water-Cooling
  10. igh Power RF: 6kW RF improves the images for overweight patients
  11. One-Button Start-Stop Design: Time-saving
  12. Wider visual range design on coils: decreases the claustrophobia symptom




Compatible with Rich Coil

The Receiver coil, together with parallel acquisition technology, improve the signal-to-noise ratio and image quality. The customer can choose according to the clinical needs (specific configuration of the coil number and types will be subject to final contract).

  • Coil Integration: New design makes head and neck scan simultaneously

  • Multiple Coil Compatible: Knee, shoulder, angle, wrist and breast

  • Foldable Coil Design: the coil can be folded to apply on different body parts

  • 8-Channel Body Coil: enhances the image quality

  • Special imaging technique: Pulmonary perfusion imaging enables research on lung disease

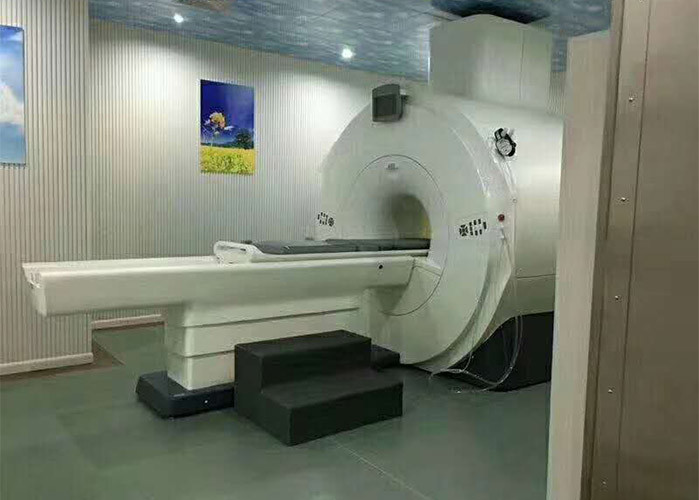

300 Liters Low Helium Superconducting MRI Scanner 0.52T Open MRI Machine Foldable Coil Bstar-052 0





Brand New 16-Channel Digital Fiber 0.52T Superconducting MRI System
