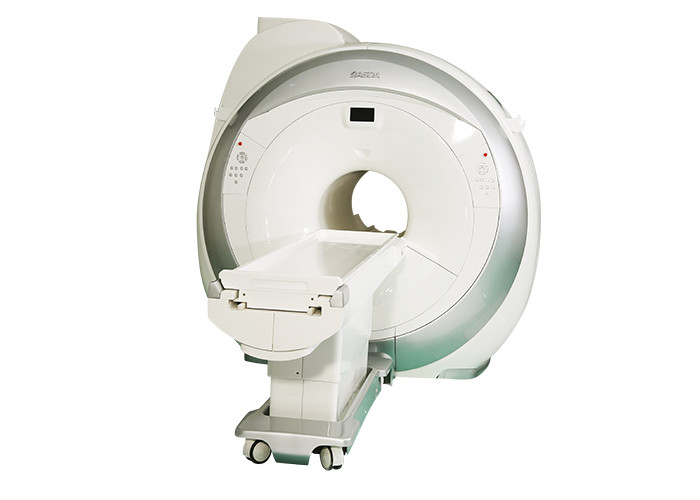

70cm Wide Bore Mri Scanner , Superconducting 1.5 Tesla Mri Machine Bstar-150

70cm Wide Bore Mri Scanner , Superconducting 1.5 Tesla Mri Machine Bstar-150

  • 70cm Wide Bore Mri Scanner , Superconducting 1.5 Tesla Mri Machine Bstar-150
  • 70cm Wide Bore Mri Scanner , Superconducting 1.5 Tesla Mri Machine Bstar-150
  • 70cm Wide Bore Mri Scanner , Superconducting 1.5 Tesla Mri Machine Bstar-150
70cm Wide Bore Mri Scanner , Superconducting 1.5 Tesla Mri Machine Bstar-150
Product Details:
Place of Origin: Shenzhen, China
Brand Name: BASDA
Certification: CE, ISO13485
Model Number: Star-150 plus
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 unit/wooden box
Delivery Time: 30-45 Days
Payment Terms: Credit card, Paypal, T/T, Western Union, MoneyGram
Supply Ability: 200 Machines per Year
Contact Now
Detailed Product Description
Shape: MRI Material: Superconducting
Magnetic Field: 1.5T Bore Size: 70 Cm
Max. Table Load: 200 Kg Cold Head: 4K
High Light:

70cm Wide Bore Mri Scanner

,

Superconducting 1.5 Tesla Mri Machine

,

70cm Bore 1.5 Tesla Mri Machine

Bstar-150 Wide-bore Superconducting MRI system



Bstar-150 Wide-bore Superconducting MRI System


Software



Bstar-150 provides comprehensive scan kit and scanning sequence, with rich clinical application of the full body, with a full range of scan plan, assist the customer’s clinical diagnosis. Advanced scanning sequence are provided as well as all routine scan, the system also can take vascular imaging, includes a broad range of capabilities supporting fast, accurate diagnosis of brain conditions and injuries. From anatomical depiction to vascular 3D reconstruction.





Bstar-150 provides the power, coils and sequences for fast, intuitive, high quality spine imaging, from routine views to advanced stitching studies.





Bstar-150 provides a versatile suite of imaging capabilities for body imaging to meet the growing demands of abdominal, pelvic, and breast exams. Including MRU/MRCP/MRM imaging, and other advanced imaging sequences. Rich post-processing software can optimize images in case necessary to help in complex diseases diagnosis, excellent image quality and abundant imaging techniques.





Workflow is critical to the efficient operation of an MRI. It impacts patient satisfaction, image quality and cost effectiveness. Bstar-150 provides full preset of clinical diagnostic scan protocol, based on rich clinical experience, corresponding arrangement and optimization have been made per related clinical application features for the scan procedure and sequence parameters of the preset scan method.With unmatched clinical capability, Bstar-150 provides an unprecedented ability to acquire complete exams with a motion compensated scan technique.





By adopting the brand-new phase array coil and scan control software, application of parallel acquisition accelerating technique, improve most sequence scanning speed, on the premise of image quality guarantee, accelerating factor can reach 6 or more as the maximum. Bstar-150 system keeps pace with international design and research, keeps improving the present clinical functions to provide lifetime free software upgrade for its users as well as let the hospital enjoy the most advanced MRI clinical application techniques.





The RF system, delivers integrated coil technology to simplify patient positioning and extend coverage with high SNR, providing extremely fast scan solution, with the help of brand-new multi-channel coil and parallel accelerating technique, it gives higher spatial resolution of head images, clearer display of anatomic structure and lesions, and less artifact.




For restless patients and those who can’t cooperate, the preset extremely fast scan sequence can be used, which is very appropriate for fetus, newborns and infants.





K_Rotat artifact erasing technique, by using stripped K space rotating filling method to complete acquisition, can completely erase the effect of movement artifact on images and greatly improve SNR at the same time to provide guarantee for accurate diagnosis.





scDWI (optional)

In DWI, acquisition of low-b-value has better tissue SNR, but is not sensitive enough to water proton;



Acquisition of high-b-value has better DW sensitivity of water proton, but reduces the tissue SNR as well as the lesion location function;



By using special computation method, scDWI only needs one single DWI sequence to complete the calculation of multi-b-value within certain range, min. 100s/mm².





Meanwhile, comparing to direct acquisition of DWI images, scDWI technique greatly improved the SNR of high-b-value DW image, avoid distortion of high-b-value images, very good for lesion diagnosis.





Why Choose Basda Medical?



Employee Distribution



  • A skillful, dedicated and experienced R&D team. 30%+ R&D team.



  • Participated in the China's first generation of independent intellectual property rights of electromagnetic magnetic resonance



  • 6% ~ 10% sales revenue is reinvested in R&D









Bstar-150 Specification.

No. Item Specification
1 Magnet System
1.1 Magnet Type Superconducting
1.2 Field Strength 1.5T
1.3 Shielding Method Active
1.4 Shimming Method and Type Active + Passive + Dynamic
1.5 Magnet stability ≤0.1ppm/h
1.6 Homogeneity (DSV, VRMS)
  10cm ≤0.01ppm
1.7 Length of magnet(exclude cover) 150cm
1.8 Inner diameter of magnet 700mm
1.9 5 Gauss fringe field(X,Y,Z axis) ≤2.5m x 2.5m x 4.0m
1.10 Liquid helium boil off 0 cc/hr
1.11 Filling liquid helium period ≥4 Years
1.12 Liquid helium “zero”consumption technology Yes
2 Gradient System
2.1 Maximum gradient field (single axis, invalid) 41mT/m
2.2 Maximum gradient slew rate(single axis, invalid) 187mT/m/ms
2.3 Minimum gradient rise time 0.22ms
2.4 Maximum gradient field and slew rate reached at the same time Yes
2.5 Gradient cooling system Water cooling
2.6 Full digital real-time transmit and receiving gradient control system Yes
3 RF System
3.1 Max RF amplifier power 18kW
3.2 Center frequency 63.87MHz
3.3 Real-time digital RF energy monitoring Yes
3.4 Real-time digital RF short-term accumulation monitoring Yes
3.5 Real-time digital RF long-term accumulation monitoring Yes
3.6 Parallel working RF receiver channels 8/16
3.7 Parallel working RF A/D converters 8/16
3.8 Each coil unit has corresponding pre-amplifier Yes
3.9 Parallel acquisition technology platform Yes
3.10 Maximum bandwidth of each parallel acquisition receive channels ≥1.0MHz
3.11 Transmission bandwidth 550kHz
3.12 Maximum receiver signal resolution ≥16bit
3.13 Fully digital RF system Yes
3.14 RF receiving amplifier noise level ≤0.45dB
3.15 Multi-channel phased array receiver coil
4 Scan environment
4.1 Patient table driven mode Motor-driven
4.2 Position accuracy ≤0.5mm
4.3 Table length 2400mm
4.4 Horizontal movement range 2055mm
4.5 Horizontal motion maximum speed ≥200mm/s
4.6 Patient table lowest height 675mm
4.7 Maximum patient weight 225kg
4.8 Feet-first entry mode Yes
4.9 Table can be controlled by machine cover in case of emergency Yes
4.10 Table control system on both side of rack Yes
4.11 Lighting, ventilation, call system Be able to adjust
5 Computer system
5.1 MRI software BASDA
5.2 System software WINDOWS 7
5.3 CPU ≥3.1GHz
5.4 Main memory ≥4GB
5.5 Hard disk ≥500GB
5.6 Color LCD monitor 24”
5.7 Monitor resolution 1920×1200
5.8 External storage DVD/USB
5.9 DICOM3.0 Yes
6 Scanning parameter
6.1 Spin-echo sequence Yes
6.1.1 SE 2D/3D Yes
6.1.2 FSE 2D/3D Yes
6.1.3 FSE sharing Yes
6.1.4 Single shot FSE Yes
6.1.5 Spin echo fat-suppression imaging Yes
6.1.6 Spin echo frequency fat suppression imaging Yes
6.1.7 Spin echo water suppression imaging Yes
6.2 GRE 2D/3D Yes
6.3 DWI Yes
6.3.1 Max. b value 10000
6.4 IR sequence Yes
6.4.1 IR Yes
6.4.2 FIR(water / fat suppression) Yes
6.4.3 FLAIR Yes
6.4.4 STIR Yes
6.4.5 Water-fat Separation Yes
6.5.1 Pre-saturation Yes
6.6 Gating Yes
6.7 Accelerated sequence Yes
6.8 Anti-movement scanning technology Yes
6.9 Min. 2D thickness 0.1mm
6.10 Min. 3D thickness 0.05mm
6.11 Max. FOV 50cm
6.12 Min. FOV 1cm
7 Advanced imaging technology
7.1 Body Imaging Yes
7.1.1 Ultra-fast imaging technology Yes
7.1.2 Phase / de-phase imaging technology Yes
7.1.3 MR cholangiopan-creatography (MRCP) Yes
7.1.4 MR urography (MRU) Yes
7.1.5 MR Myelography (MRM) Yes
7.2 Neuro imaging Yes
7.3 Diffusion weighted imaging set Yes
7.3.1 Isotropic acquisition Yes
7.3.2 ADC measurement Yes
7.4 MR angiography(MRA) Yes
7.4.1 2D/3D TOF technology Yes
7.4.2 Continuous multi-layer 3D TOF technology Yes
7.4.3 Contrast enhanced MRA Yes
7.4.4 Magnetization transfer (MTC) Yes
7.4.5 Maximum intensity projection Yes
7.5 Susceptibility weighted imaging (SWI) Yes
7.6 Parallel acquisition technology Yes
7.6.1 Algorithm based on image Yes
7.6.2 Algorithm based on K-space Yes
7.6.3 Max. parallel acquisition acceleration factor 4
7.6.4 Automatic calibration technology Yes
7.6.5 Applied direction of parallel acquisition factor X,Y,Z
7.7 Artifact correction technology Yes
7.7.1 Fluid compensation Yes
7.7.2 Respiratory compensation Yes
7.7.3 Head motion artifact correction Yes
7.7.4 Elimination of magnetic sensitive artifact Yes
7.7.5 Eddy current adaptive correction Yes
7.7.6 Gradient linearity correction Yes
7.7.7 Multi-echo phase correction Yes
7.8 Rapid automatic correction technology Yes
7.9 Automatic frequency tracking technology Yes
7.10 Automatic coil recognition technology Yes
7.11 Automatic phase correction technology Yes
7.12 Echo navigation technology Yes
7.13 RF balance drive technology Yes
7.14 RF de-phase technology Yes
7.15 Gradient de-phase technology Yes
7.16 Section scanning technology Yes
