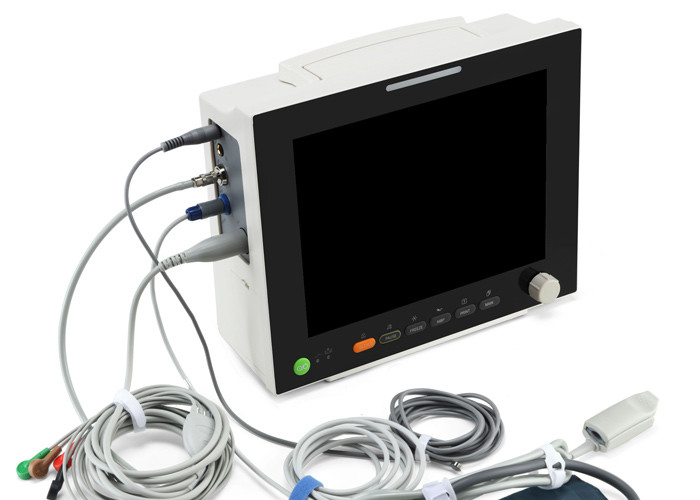

12" TFT 800×600 Dpi Digital Patient Monitor ECG NIBP Patient Monitoring Devices

12" TFT 800×600 Dpi Digital Patient Monitor ECG NIBP Patient Monitoring Devices

12" TFT 800×600 Dpi Digital Patient Monitor ECG NIBP Patient Monitoring Devices
12
12" TFT 800×600 Dpi Digital Patient Monitor ECG NIBP Patient Monitoring Devices
Product Details:
Place of Origin: Guangdong, P.R.C.
Brand Name: Basda Medical
Certification: CE, ISO
Model Number: BMP-9000JA
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: 1 unit/carton, 370*210*430mm
Delivery Time: Various by Logistics and Custom
Payment Terms: Credit card, Paypal, T/T, Western Union, MoneyGram
Supply Ability: 3 Days per 10 Units
Contact Now
Detailed Product Description
Screen: 12" Color TFT Screen Name: Patient Monitor
After Sale Support: Online Technical Support Size: 370*210*430 Mm
Weight: 5.5 Kg Gross Battery: Built-in Rechargeable Lithium Battery
High Light:

12" TFT Digital Patient Monitor

,

800×600 Dpi Digital Patient Monitor

,

ECG NIBP Patient Monitoring Devices





Features:



1. 12.1” color TFT display, high resolution: 800×600dpi;



2. Separated para board: ECG, NIBP, SpO2 board;



3. Full touch-screen enables intuitive operation by clicking on the specific parameters or the waveform in real-time, standard configuration includes the navigation knob.



4. Real-time S-T segment analysis, and ARR analysis;



5. SpO2 Pitch Tone Variation and Drug Dose Calculation;



6. Parameter waveform and characters color selectable



7. Multi-display: Standard, Large font, Trend Coexis, OxyCRG dynamic



8. Standby mode for Energy saving and suspend monitoring;



9. 7-lead ECG waveforms display in phase;



10. Capture dynamic waveforms;



11. Built-in rechargeable lithium battery, and battery volume checking,



12. AC power checking



13. Efficient resistance to interference of defibrillator and HF knife;



14. SINNOR F-6 SpO2 technology, VS NELLCOR accuracy;



15. Networking capacity and TCP/IP networking platform enable abundant future upgrade



16. Time delay switch-off function keep the monitor data restart monitor;



17. Complete and flexible mounting solution for transportation and in-patient monitoring





Standard parameters:



5-lead ECG, SpO2(F-5),NIBP, TEMP,RESP,PR,HR.





Optional:



Touch Screen, Thermal Recorder, 3/12-lead ECG, 2/4-IBP,4-TEMP,2-SpO2, Nellcor/Masimo SpO2,BIS, Phaisein/ Respironics Multi-gas, ICG/CO, FHR, FM, TOCO,





Specifications





Display

12.1”color TFT

Rolling and refreshing waveform display

Resolution: 800×600

Multi display selectable including:

Large-font display

Trend coexist display

OxyCRG dynamic view display.

Bed-to-bed view display

Trend

Parameter graphic and tabular trends:

5s/piece, 8 hours;

1min/piece,168 hours(24hour×7days)

5min/piece,1000 hours.

Storage

NIBP: 1000 groups

Alarm: 200 groups

Full disclosure waveforms: 3600S

Battery

Rechargeable lead acid cell, 12v/4AH



Max.24 hour for charging, 4 hours for continue working

Alarm

User-adjustable High, Medium and Low limits 3-level



Audible and visual alarm

Indicator

Power/battery indicator light



QRS beep and alarm sound

Networking

Connected to central monitoring system

TCP/IP netting platform

Trace

9 waveforms(7 ECG, 1 SPO2 and 1 RESP)



Sweep speed:12.5mm/s,25mm/s,50mm/s

Recorder

Build-in, thermal array



Plethysmogram caveform:2 channels



Record mode: manual, on alarm, time-defined



Recording width: 50mm



Printing speed: 50mm/s

Recording type

Frozen waveform record



NIBP recall record



Trend table record



Alarm record



Fixed -time record

















What is in the box?





1. Reusable ECG Leadwires----1 set

2. LNOP Reusable SpO2 Sensor----1 set

3. NIBP Hose----1 set

4. Chest electrode (10pcs/set)

5. Temperature Trunk Cables----1 set

6. 5 Lead ECG Electrodes----1 set

7. Power Cord----1 set

9. Grounding Cable----1 set

10. ECG Recording Paper----1 set

11. D-lite++ Patient Spirometry Sets----Optional
