Cartbase Linear Probe 110V Medical Ultrasound Machine BTH-90S

Cartbase Linear Probe 110V Medical Ultrasound Machine BTH-90S

    • Cartbase Linear Probe 110V Medical Ultrasound Machine BTH-90S
  • Cartbase Linear Probe 110V Medical Ultrasound Machine BTH-90S

    Product Details:

    Place of Origin: China
    Brand Name: BASDA
    Certification: NMPA
    Model Number: BTH-90S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD 15000/unit
    Packaging Details: 1 unit/wooden box
    Delivery Time: 8 Work Days
    Payment Terms: Credit card, Paypal, T/T, Western Union, MoneyGram
    Supply Ability: 100 Units Per Month
    Contact Now
    Detailed Product Description
    Display Mode: B, B/B,4B, M,B/M Type: Trolley Or Cartbase
    Application: Full Body Probe With Stardard Version: Linear And Convex
    Imaging Parameter Type: CDI, PDI, Dir PDI Sampling Width: 0.5 - 30 Mm
    High Light:

    Cartbase Linear Probe Medical Ultrasound Machine

    ,

    110V Medical Ultrasound Machine

    ,

    CDI Portable Ultrasound Scanner

    Cartbase Linear Probe 110Volt Medical Ultrasound Machine BTH-90S




    BTH-90's Advanced Technology

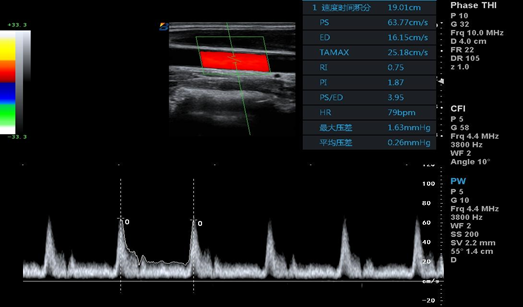

    1.Adaptive Doppler imaging



    Enhance the spectral signal through complex digital processing techniques to improve the Doppler signal and reduce noise.



    Cartbase Linear Probe 110V Medical Ultrasound Machine BTH-90S 0



    2. Speckle suppression imaging



    Based on the current scanning adaptively suppress the speckle noise, make the image clearer and more detailed.


    Cartbase Linear Probe 110V Medical Ultrasound Machine BTH-90S 1

    Before and After






    3. Trapezoidal imaging



    Increases the scan area by approximately 20%, providing a larger field of view and improving lesion detection rate.









    Applicable Area:



    • Digestive System: liver, gall bladder, pancreas, stomach
    • Urology System: kidney, ureter, bladder, prostate gland
    • Genital System: ovary, womb/testicle, pregnancy check
    • Surgery: abdomen, superficial masses, abdominal tumor and effusions
    • Others: cardiology, thyroid, joint





    BTH-90S Specification

    1 Application
    It is mainly applied for ultrasonic diagnosis and scientific research of abdomen, obstetrics and gynecology, reproduction, blood vessels, heart, superficial tissue, breast, neonates, surgery ,nerves, etc.

    Cartbase Linear Probe 110V Medical Ultrasound Machine BTH-90S 2

    2 Specification:

    2.1 Include:

    2.1.1 High resolution B imaging
    2.1.2 Color doppler imaging (CDI )
    2.1.3 Pulse wave doppler (PWD)
    2.1.4 Continuous wave doppler (CWD)
    2.1.5 Power doppler imaging (PDI)
    2.1.6 Direction Power doppler imaging (DirPDI)
    2.1.7 M mode imaging
    2.1.8 Tissue harmonic imaging
    2.1.9 Harmonic fusion imaging
    2.1.10 Spatial composite imaging
    2.1.11 Adaptive speckle noise suppression
    2.1.12 Extend imaging
    2.1.13 Parallelogram imaging
    2.1.14 Trapezoid imaging
    2.1.15 Smart one key imaging optimization
    2.1.16 Freehand 3D imaging
    2.1.17 Static 3D imaging
    2.1.18 Real-time 3D/4D imaging
    2.1.19 Optional tissue doppler imaging
    2.1.20 Optional anatomical M imaging

    Cartbase Linear Probe 110V Medical Ultrasound Machine BTH-90S 3

    2.2 Measurement and analysis:

    2.2.1 Preset parameters: for different examined organs, the optimal image examination parameters are preset to reduce the adjustment during operation; users are permitted to define and save preset parameters
    2.2.2 General measurement
    2.2.3 Obstetrics measurement
    2.2.4 Gynecology measurement
    2.2.5 Vessel measurement
    2.2.6 Urology measurement
    2.2.7 Cardiac measurement
    2.2.8 Abdomen measurement
    2.2.9 User defined measurement
    2.2.10 Doppler blood flow measurement
    2.2.11 Small organs and superficial tissue measurement
    2.2.12 Auto doppler spectrum tracking and analysis
    2.2.13 *Optional auto measurement of intima-media thickness

    Cartbase Linear Probe 110V Medical Ultrasound Machine BTH-90S 4

    2.3 Patient data management:

    2.3.1 Patient data include: personal information, image, cine, report, etc
    2.3.2 Patient data establishment, storage, playback, modification, retrieval and printing
    2.3.3 Built-in integrate ultrasound workstation
    2.3.4 Image storage format: PNG, JPEG, BMP
    2.3.5 Cine storage format: AVI
    2.3.6 Optional DICOM 3.0

    3 Technical parameters:

    3.1 System general configure:

    3.1.1 Full digital beamformer
    3.1.2 Multibeam parallel processing
    3.1.3 Dynamic focusing and apodization
    3.1.4 A/D sampling: ≥ 14 BIT
    3.1.5 Monitor: ≥19 inch, high resolution LED color monitor that can be moved up, down, left and right
    3.1.6 Touchscreen: ≥10 inch,high sensitivity capacitive touchscreen
    3.1.7 Control panel: ergonomic design
    3.1.8 Transducer interfaces:≥4, fully activated, transducer can be connected to any connectors freely
    3.1.9 Interfaces: network, DVI, USB
    3.1.10 Built-in DVD recorder
    3.1.11 Harddisk: ≥ 1T
    3.1.12 Support U disk or mobile HDD storage
    3.1.13 Support black white printer and color printer



    3.2 Transducer specification:

    3.2.1 Support transducer type: convex array, linear array, phased array, endocavity, volume
    3.2.2 Supports biopsy guide
    3.2.3 Visual and adjustable transducer frequency ≥4, all modes of B ,color and doppler frequency are adjusted independently
    3.2.4 Frequency range:
    • Convex array transducer frequency: 2.5-5.5 MHz
    • Phased array transducer frequency: 1.7-5.0 MHz
    • Linear array transducer frequency: 4.0-14.0 MHz
    • Endocavity transducer frequency: 3.0-10.0 MHz
    • Volume transducer frequency: 2.0-6.0 MHz

    3.2.5 Imaging modes:

    • Convex array transducer: B/M/CDI/PWD
    • Linear array transducer: B/M/CDI/PWD
    • Endocavity transducer: B/M/CDI/PWD
    • Phased array transducer: B/M/CDI/PWD/CWD
    • Volume transducer: B/M/CDI/PWD/3D/4D



    3.3 B imaging parameters:

    3.3.1 Display mode: B, B/B,4B, M,B/M
    3.3.2 Gain adjustion: TGC ≥8; LGC ≥8
    3.3.3 Transmit beam focusing: ≥7
    3.3.4 Scan lines density: ≥512
    3.3.5 Gray scale ≥ 256
    3.3.6 *Scanning depth ≥ 30cm
    3.3.7 Visual and adjustable dynamic range: 30 ~ 180dB
    3.3.8 B images playback ≥10000 frames
    3.3.9 B scanning rate:
    phased array transducer: when depth is 18 cm, the full-field scanning
    frame rate ≥ 65 f/s
    convex array transducer: when depth is 18 cm, the full-field scanning
    frame rate ≥ 50 f/s

    Cartbase Linear Probe 110V Medical Ultrasound Machine BTH-90S 5

    3.4 Color doppler imaging parameters:

    3.4.1 Type: CDI, PDI, Dir PDI
    3.4.2 Display modes: B/CDI, B/PDI, B/Dir PDI
    3.4.3 B and color dual real-time contrast
    3.4.4 Zero movement: ≥8 levels adjustable
    3.4.5 Steer angle: linear array transducer image steer range: -20°~ +20°

    3.5 Spectral doppler imaging parameters:

    3.5.1 Type: PWD, CWD, HPRF
    3.5.2 Display modes: B/PWD, B/CWD, B/HPRF, B/CDI/PWD, B/CDI/CWD
    3.5.3 The maximum blood flow velocity : ≥5 m/s by PWD ; ≥10 m/s by CWD
    3.5.4 The lowest blood flow velocity:≤0.5 mm/s (non-noise signal)
    3.5.5 Sampling width : 0.5 - 30 mm



    Company Profile





    As a leading and innovative medical technology and digital solutions provider in China, Basda Medical was established in 2000. Located in Shenzhen, the frontier city of China’s “reform and opening up”, Basda Medical has emerged and developed as a national high-tech company focusing on R&D, production, trading, and services on medical imaging, digital solutions and radiotherapy products.



    5 out of 9 series products of Basda Medical are included in the key research areas of China’s government directed program "Made in China 2025". Basda Medicalhas high profile among China’s medical imaging manufacturers due to several facts. We are known as the one of the earliest manufacturers of 3.0T MRI system in China. We successfully developed the world's first 0.5T and 0.7T open superconducting MRI systems. We produced China’s first specialized extremity MRI systems and first SPECT with independent intellectual property right.



    With our qualified products and excellent service, we have over 3000 global users from over 40 countries globally including Europe, Africa, Latin America, Middle East and South East Asia. At present, we have several international quality control certifications to meet the quality and safety requirements of users in various countries.





    Cartbase Linear Probe 110V Medical Ultrasound Machine BTH-90S 6



    Bstar-150 @ Berhampur, India







    Cartbase Linear Probe 110V Medical Ultrasound Machine BTH-90S 7



    BTI-020@Buenos Aires, Argentina
