Product Advanced Technology

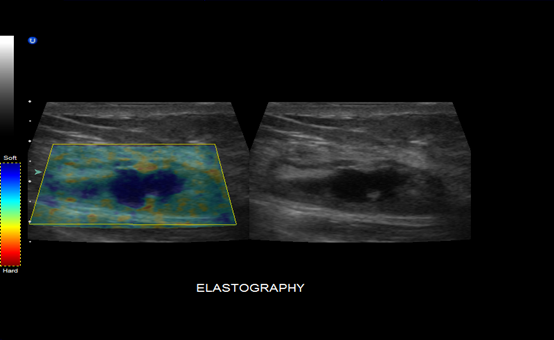

1.Elastography
Elastography assesses tissue stiffness in real time with dual real-time contrast imaging, which already has been validated in a wide range of clinical applications.
2. Multiple rendering modes
Surface mode and fluoroscopy mode display all details more comprehensively.

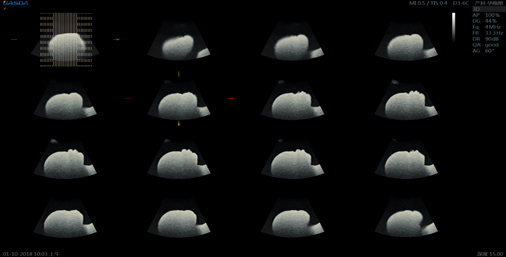

3. Ultrasound tomography
Multi-sectional display at any angle reconstructed from stereo database acquired by volume image, making measurement, analysis and dynamic recording easier.
Company Description
• As a leading and innovative medical technology and digital solutions provider in China, Basda Medical was established in 2000. Located in Shenzhen, the frontier city of China’s “reform and opening up”, Basda Medical has emerged and developed as a national high-tech company focusing on R&D, production, trading, and services on medical imaging, digital solutions and radiotherapy products.
• The core technicalstaffs at Basda Medicalare the one of the earliest technical teams engaging in medical magnetic resonance R&D in China. Our company has obtained several hundred intellectual property rights such as patents, software copyright, proprietary technologies, etc. as the core R&D team collaborate to break through the technical barriers, master the key algorithms, conquer the main components and achieve the system innovation. Insisting on self-innovation while rooted in effective cooperation mechanisms on production, study, research and clinical trial, Basda Medical has established long-term partnership with China’s best knownuniversities such as Peking University, Harbin Institute of Technology, Southern Medical University and etc.
Patents
• Obtained 100+ patents, software copyrights and proprietary technologies
• Granted “Second Prize of National Technology Invention” by the president of China in January 2018
• “Second Prize of National Technology Invention"
• “National Postdoctoral Innovation Practice Base”
• "State High-tech Enterprise"
• "Key Hi-tech Enterprise of State Torch Program"
• "First Prize of China Machinery Industry Science and Technology Award"
• "Guangdong High Field MRI System Engineering and Technology Researching and Developing Center "
Market Share
• BASDA’s products are exported to 40 countries and regions globally including Europe, Africa, Latin America, Middle East and South East Asia
• Best Permanent MRI Seller in China
• 3000 global customers
• A medical apparatus manufacturer with most complete variety of products

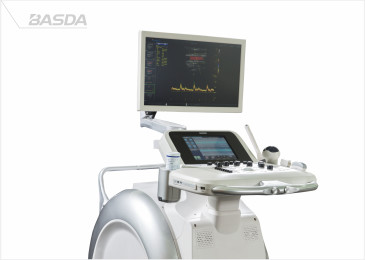

BTH-200S Specification
1 Application
• It is mainly applied for ultrasonic diagnosis and scientific research of abdomen, obstetrics and gynecology, reproduction, blood vessels, heart, superficial tissue, breast, neonates, surgery, nerves, etc
2 Specification:
2.1 Include:
2.1.1 High resolution B imaging
2.1.2 Color doppler imaging (CDI )
2.1.3 Pulse wave doppler (PWD)
2.1.4 Continuous wave doppler (CWD)
2.1.5 Power doppler imaging (PDI)
2.1.6 Direction Power doppler imaging (DirPDI)
2.1.7 M mode imaging
2.1.8 Tissue doppler imaging
2.1.9 Tissue harmonic imaging
2.1.10 Pulse reverse harmonic imaging
2.1.11 Spatial composite imaging
2.1.12 Speckle noise suppression
2.1.13 Trapezoid imaging
2.1.14 Zoom in full screen
2.1.15 Real-time zoom
2.1.16 Smart one key imaging optimization
2.1.17 Static 3D imaging
2.1.18 Real-time 3D/4D imaging
2.1.19 Ultrasound tomography imaging
2.1.20 Magic cut: edit arbitrarily for 3D imaging
2.1.21 Render types:maximum, minimum, X ray display, surface, smoothness
2.1.22 Optional volume ultrasound tomography imaging
2.1.23 Optional multi angle M imaging
2.1.24 Optional color M mode imaging
2.1.25 Optional panorama imaging
2.1.26 Optional elastography imaging
2.1.27 Optional tissue velocity imaging
2.1.28 Optional tissue velocity M imaging
2.1.29 Optional gray-scale inversion imaging
2.1.30 Optional ultrasound learning and guide function: anatomical schematic diagram, scanning manipulation diagram, standard ultrasonic image, scanning method description, etc
2.2 *37 parameters adjustment when playback images:
2.2.1 Preset parameters: for different examined organs, the optimal image examination parameters are preset to reduce the adjustment during operation; users are permitted to define and save preset parameters
2.2.2 15 parameters on B and M mode: gain, dynamic range, TGC, image rollover, gray filter, tissue optimization, image rotation, left and right rollover, gray map, pseudocolor, frame average, spatial smooth, speckle rejection, edge enhance, M speed
2.2.3 8 parameters on CDI mode: color optimization, base line, color rollover, color map,color threshold adjustment, glitter rejection, spatial smooth, color M speed
2.2.4 14 parameters on PWD mode: gain, base line, angle revise,quick angle adjustment, spectrum rollover, display format, refresh rate, rejection, gray map, pseudocolor, dynamic range, spectrum optimization, auto tracking, sensitivity tracking
2.3 Measurement and analysis:
2.3.1 General measurement
2.3.2 Obstetrics measurement
2.3.3 Gynecology measurement
2.3.4 Vessel measurement
2.3.5 Urology measurement
2.3.6 Cardiac measurement
2.3.7 Abdomen measurement
2.3.8 User defined measurement
2.3.9 Doppler blood flow measurement
2.3.10 Small organs and superficial tissue measurement
2.3.11 Intelligent volume calculation
2.3.12 Auto doppler spectrum tracking and analysis
2.3.13 Optional auto measurement of intima-media thickness(Auto IMT)
2.3.14 Optional auto neck transparent layer thickness measurement(Auto NT)
2.4 Patient data management:
2.4.1 Patient data include: personal information, image, cine, report, etc
2.4.2 Patient data establishment, storage, playback, modification, retrieval and printing
2.4.3 Built-in integrate ultrasound workstation
2.4.4 Image storage format: PNG, JPEG, BMP, TIFF
2.4.5 Cine storage format: AVI, VRD
2.4.6 Optional DICOM 3.0
3 Technical parameters:
3.1 System general configure:
3.1.1 1-25MHz high frequency system platform
3.1.2 Full digital uwb beamformer
3.1.3 A/D sampling ≥ 14 BIT
3.1.4 Monitor: ≥21 inch, high resolution LED color monitor that can be moved up, down, left and right
3.1.5 Touchscreen: ≥10 inch, high sensitivity capacitive touchscreen
3.1.6 Control panel: ergonomic design, lifted and rotated
3.1.7 *Built-in couplant heater
3.1.8 Transducer interfaces:≥3, fully activated, transducer can be connected to any connectors freely
3.1.9 Interfaces: network, DVI, USB, S-video
3.1.10 Built-in DVD recorder
3.1.11 Harddisk: ≥ 1T
3.1.12 Support U disk or mobile HDD storage
3.1.13 Support black white printer and color printer
3.2 Transducer specification:
3.2.1 Support transducer type: convex array, linear array, phased array, endocavity, volume
3.2.2 Supports biopsy guide
3.2.3 Visual and adjustable transducer frequency ≥4, all modes of B ,color and doppler frequency are adjusted independently
3.2.4 Frequency range:
Convex array transducer frequency: 2.5-6.5 MHz
Phased array transducer frequency: 2.0-5.0 MHz
Linear array transducer frequency: 6.0-16.0 MHz
Endocavity transducer frequency: 5.0-11.0 MHz
Volume transducer frequency:3.0-6.0 MHz
3.2.5 Imaging modes:
Convex array transducer: B/M/CDI/PWD
Linear array transducer: B/M/CDI/PWD
Endocavity transducer: B/M/CDI/PWD
Phased array transducer: B/M/CDI/PWD/CWD
Volume transducer: B/M/CDI/PWD/3D/4D
3.3 B imaging parameters:
3.3.1 Display mode: B, B/B,4B, M,B/M
3.3.2 Gain adjustment: TGC ≥8; LGC ≥8
3.3.3 Transmit beam focusing: ≥7
3.3.4 Scan lines density: ≥512
3.3.5 Gray scale: ≥ 256
3.3.6 Focus numbers ≥8
3.3.7 *Scanning depth ≥ 36cm
3.3.8 *Visual and adjustable dynamic range: 30 ~ 280dB, step 2
3.3.9 B images playback: ≥10000 frames, playback time: ≥1000 s
3.3.10 *B scanning rate:
phased array transducer: when depth is 18 cm, the full-field scanning
frame rate ≥ 100 f/s
convex array transducer: when depth is 18 cm, the full-field scanning
frame rate ≥ 55 f/s
3.4 Color doppler imaging parameters:
3.4.1 Type: CDI, PDI, Dir PDI
3.4.2 Display modes: B/CDI, B/PDI, B/Dir PDI
3.4.3 B and color dual real-time contrast
3.4.4 Zero movement: ≥ 12 levels adjustable
3.4.5 Steer angle: linear array transducer image steer range: -20°~ +20°
3.4.6 Color scanning rate:
phased array transducer: when depth is 18 cm, the full-field scanning frame rate ≥ 24 f/s
convex array transducer: when depth is 18 cm, the full-field scanning frame rate ≥ 15 f/s
3.5 Spectral doppler imaging parameters:
3.5.1 Type: PWD, CWD, HPRF
3.5.2 Display modes: B/PWD, B/CWD, B/HPRF, B/CDI/PWD, B/CDI/CWD
3.5.3 The maximum blood flow velocity : ≥10 m/s by PWD ; ≥20 m/s by CWD
3.5.4 The lowest blood flow velocity:≤1 mm/s (non-noise signal)
3.5.5 Spectral images playback: ≥10000 frames
3.5.6 Zero movement ≥12 levels
3.5.7 Sampling width : 0.5 - 28 mm
3.5.8 B/CDI/PWD steer independently
3.6 Ultrasound power output adjust for B, M, PWD, CWD,CDI
