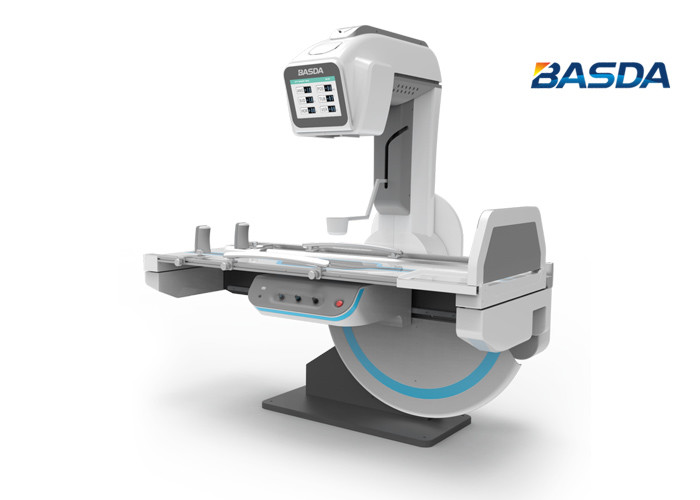

CE Island Table Gastrointestinal Digital X Ray Equipment BTF-650DRF

CE Island Table Gastrointestinal Digital X Ray Equipment BTF-650DRF

CE Island Table Gastrointestinal Digital X Ray Equipment BTF-650DRF
CE Island Table Gastrointestinal Digital X Ray Equipment BTF-650DRF
CE Island Table Gastrointestinal Digital X Ray Equipment BTF-650DRF
Product Details:
Place of Origin: Guangdong, P.R.C.
Brand Name: Basda Medical
Certification: CE, ISO13485
Model Number: BTF-650DRF MAX
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: 1 unit/wooden box
Delivery Time: 5-8 Work Days
Payment Terms: Credit card, Paypal, T/T, Western Union, MoneyGram
Supply Ability: 300 Machines per Year
Contact Now
Detailed Product Description
Type: Dynamic FPD: DDR
Material: CsI Hard Disk Capacity: ≥1T
CPU: ≥I5 Double Focus, Focus Size: 0.6 Mm/1.2mm
High Light:

Island Table Digital X Ray Equipment

,

CE Gastrointestinal Digital X Ray Equipment

,

CE medical x ray equipment

Product Description



BTF-650RF MAX





Digital R&F System

  1. Large field of view and high pixels
  2. High quality HV generator
  3. Advanced image acquisition and processing software
  4. Stylish and sophisticated diagnostic bed, realize wide application
  5. With various functions, e.g. spot photography, fluoroscopy gastrointestinal contrast imaging. etc

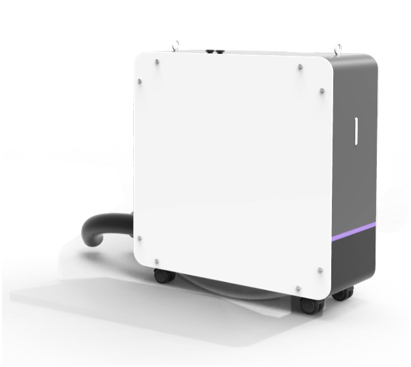

High Voltage Generator
CE Island Table Gastrointestinal Digital X Ray Equipment BTF-650DRF 0
  1. Use HF high voltage generator, stable output current, guarantees clear images, reduces soft X-ray harm to patients, equipped with failure automatic detection software, integrated with rich exposure mode, convenient operation and stable performance.
  2. It can monitor the tube in real-time and reach the best performance status, make sure low noise when image output.
  3. Soft ray is a byproduct of X-ray.
  4. It affects image quality, causes harm to human body. High inverter frequency of high voltage generator is the fundamental resolution to reduce soft rays.
  5. BASDA DR is equipped with HF high voltage generator, which reduces radiation effectively and ensures image quality.







Tube
  1. Use tube with large heat capacity, rotating anode ensures super long lifetime.
  2. Tube focus meets the requirements of different body parts.



Automatic switching function of recursive noise level:
  1. In order to solve the drag-and-tail phenomenon of moving organs, BTF-650DRF MAX adopts the self-developed noise level automatic switching system.
  2. The noise reduction levels are automatically adjust to the lower level, and the image is automatically adjusted to the high level when the image is static.




Full Image Chain Digital Control

  1. The core image chain components and the control of the whole image chain is fully digital interface, with high control accuracy and a large reduction in the dosage of patients.
  2. All the digital interface circuit and the sensor output signal are converted into digital signal, the microprocessor operations in digital form in order to realize the precision control of the high voltage generator.
  3. Its advantage is: operation ability, high precision, and a variety of complex exposure parameters combination can be programmed in the high voltage generator, the operator only needs to choose default exposure parameters at workstation, the system can easily get a perfect exposure.
  4. In addition, full digital design helps to reduce the system weight, reliability and service life.

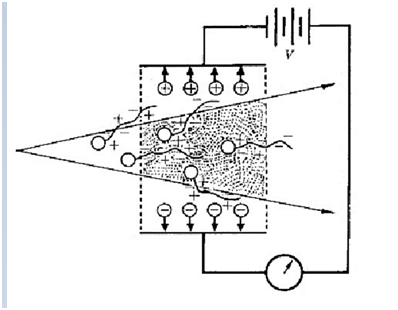

AEC Control System:

  1. Compared with common one-way control exposure of gastrointestinal machine on the market, BTF-650DRF MAX adopts the expensive AEC configuration, which can achieve the best image acquisition and the lowest exposure dose.
  2. BTF-650DRF MAX with AEC control system can reduce the X-ray exposure dose more than 80% lower than normal dose (in certain case), the image quality, image consistency is greatly improved.

CE Island Table Gastrointestinal Digital X Ray Equipment BTF-650DRF 1

  1. The AEC real-time closed loop monitoring of BTF-650DRF MAX controls the X - ray dose and reduce the patient's injury, realize low dose with improved image resolution.



Automatic Fusion Link Exposure Parameter Function:

BTF-650DRF MAX provides automatic fusion link exposure parameter function, provides the following functions and features:

  1. the dynamic exposure parameters are set according to the perspective scan, and it can seamless connect to the static exposure parameters, without any additional operation, free and comfortable switching.
  2. the switching time is very short
  3. by this technology, the exposure process will not be interrupted by the switching operation, makes the film clear without artifact.





Items Name Brand/Place Remark
1 High-voltage generator BASDA

Maximum tube voltage: 150kV

Maximum tube current: 800mA

Maximum output electric power: 65kW

2 X-ray tube assembly Varian

Double focus, focus size: 0.6 mm/1.2mm

Use tube voltage: 40kV~150kV

Maximum anode heat capacity: 300kHU

3 Flat panel detector China

Detector type: dynamic flat panel detector

Material: Amorphous silicon cesium iodide whole board

Image size: 17×17 inches

4 Beam limiter BASDA Inherent filtration: 1.0mmAL/70kv
5

Remote diagnosis bed

Control cabinet

BASDA

Tube movement (SID electric): 1100mm-1800mm

Bed rotation: +90°~-20°

Tube rotation range: +30°~30°

6 Remote operation console BASDA LCD touch screen
7 Compressor BASDA 最大压力100N
8 Pointing device BASDA
9 Foot switch BASDA
10 Acquisition workstation BASDA CPU: ≥I5
11 system software BASDA

Memory capacity: ≥8GB

Hard disk capacity: ≥1T

Display: 24 inches

Chinese and English interface based on WINDOWS







CE Island Table Gastrointestinal Digital X Ray Equipment BTF-650DRF 2
