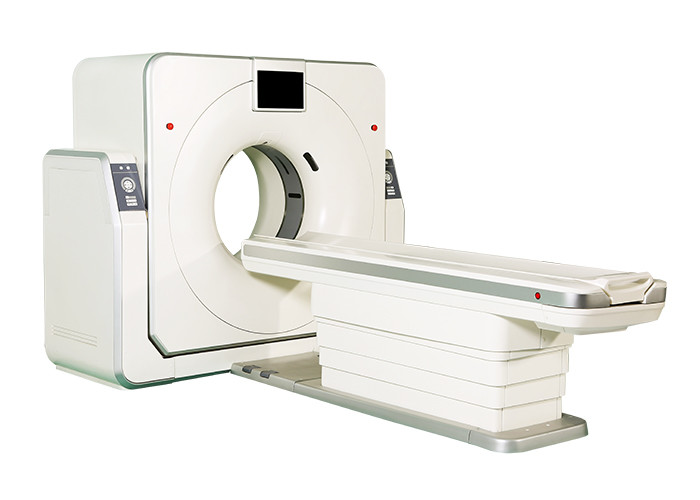

Low End 76cm 5.3MHU 64 Slices Computed Tomography Machine

Low End 76cm 5.3MHU 64 Slices Computed Tomography Machine

Low End 76cm 5.3MHU 64 Slices Computed Tomography Machine
Low End 76cm 5.3MHU 64 Slices Computed Tomography Machine
Low End 76cm 5.3MHU 64 Slices Computed Tomography Machine
Product Details:
Place of Origin: Shenzhen, China
Brand Name: BASDA
Certification: ISO 13485
Model Number: BCT-64
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden
Delivery Time: 30-45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Slices: 64 Hole: 76cm
Tube: 5.3MHU Heat Dissipation Rate: 931 KHU/min
Tube Heat Capacity: 8.0MHu Maximum Output Power Of Generator: 80kW
High Light:

5.3MHU computed tomography machine

,

76cm 64 slice ct scanner

,

5.3MHU 64 slice ct scan machine

Low end CT scan,Computed Tomography system,32 row detector,76cm,3.5MHU

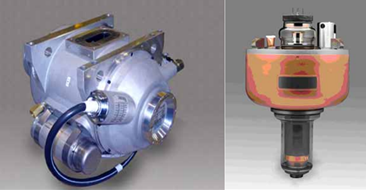

This tube can meet the demand of large patient flow and complex scanning, in the meantime, guarantee the system operating costs under control.

Low End 76cm 5.3MHU 64 Slices Computed Tomography Machine 0

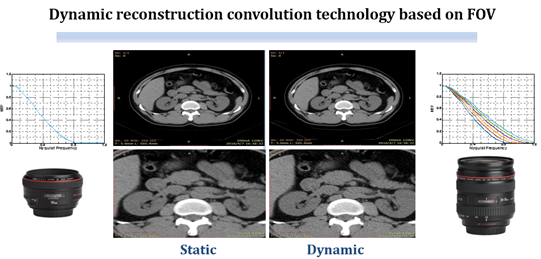

  • Dynamic reconstruction convolution technology based on FOV
  • Dynamic reconstruction convolution technology based on FOV can real-time match the algorithm along with the different field of view to ensure different tissues have an optimal effect in the images, this technology is similar as the digital camera, ensures that the users can dynamically capture the best photos.



Low End 76cm 5.3MHU 64 Slices Computed Tomography Machine 1



(1) The upper left and right image are identical and replace them with a better patient body image generated by our CT at FOV of 50cm, 45cm or 40cm, whichever is appropriate.

(2) The lower left image was just cut off the upper left image into half in size and enlarge by factor 2 to get the same size but blurred image.

(3) Replace the blank blue block with the image reconstructed at half FOV of the upper right image, using the image matrix dimension 512x512 identical to that of the upper right image.

(4) As such, the point of dynamic reconstruction kernel can be illustrated.

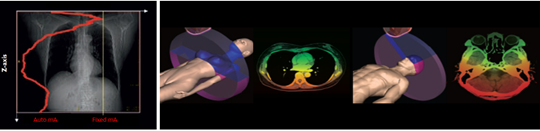

Intelligent mA tracking technology

  • On the premise of the quality of the image guaranteed, the system can automatically adjusts the output tube current in Z axis direction and X axis direction. Intelligent mA tracking technology can reduce about 40% radiation dose.



Low End 76cm 5.3MHU 64 Slices Computed Tomography Machine 2

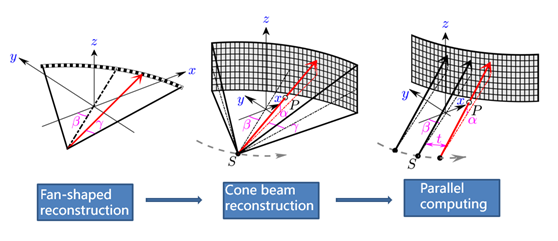

Parallel 3D cone beam reconstruction technology

  • Integrated parallel computing reconstruction based on true 3D cone beam, the final image is closer to the true tissue, the image is clearer.

Low End 76cm 5.3MHU 64 Slices Computed Tomography Machine 3







iDream tensor iteration low-dose technology

  • 76 cm aperture design
  • Place the patients at ease and comfortable.



Patents, Award, Certificates

  1. Our Team Developed the First Conducting MRI in China Since the Year 1990
  2. Obtained 100+ patents, software copyrights and proprietary technologies
  3. Developed second ultra-high field 3.0T superconducting magnetic resonance
  4. Granted “Second Prize of National Technology Invention” by the president of China in January 2018
  5. “Second Prize of National Technology Invention"
  6. “National Postdoctoral Innovation Practice Base”
  7. "State High-tech Enterprise"
  8. "Key Hi-tech Enterprise of State Torch Program"
  9. "First Prize of China Machinery Industry Science and Technology Award"
  10. "Guangdong High Field MRI System Engineering and Technology Researching and Developing Center "

Low End 76cm 5.3MHU 64 Slices Computed Tomography Machine 4

Low End 76cm 5.3MHU 64 Slices Computed Tomography Machine 5















Hardware configuration

1 Console CPU 1
RAM 1
HDD 1
GPU 1
Standard mouse and keyboard 1
2 Power adaptor   1
3 CT voice control system   1
4 Gantry Laser light 1
Control system 1
Detector 1
Tube 1
HV generator 1
5 Cable   1
6 Table   1
7 Table mattress   1
8 Head support   1
9 Knee support   1
10 Forehead belt   1
11 Mandible belt (L size)   1
12 Mandible belt (S size)   1
13 Abdomen – thorax belt   1
14 Abdomen – thorax belt (S size 1)   1
15 Abdomen – thorax belt (S size 2)   1
16 Operating manual   1
17 Phantom   1
18 Phantom support   1
