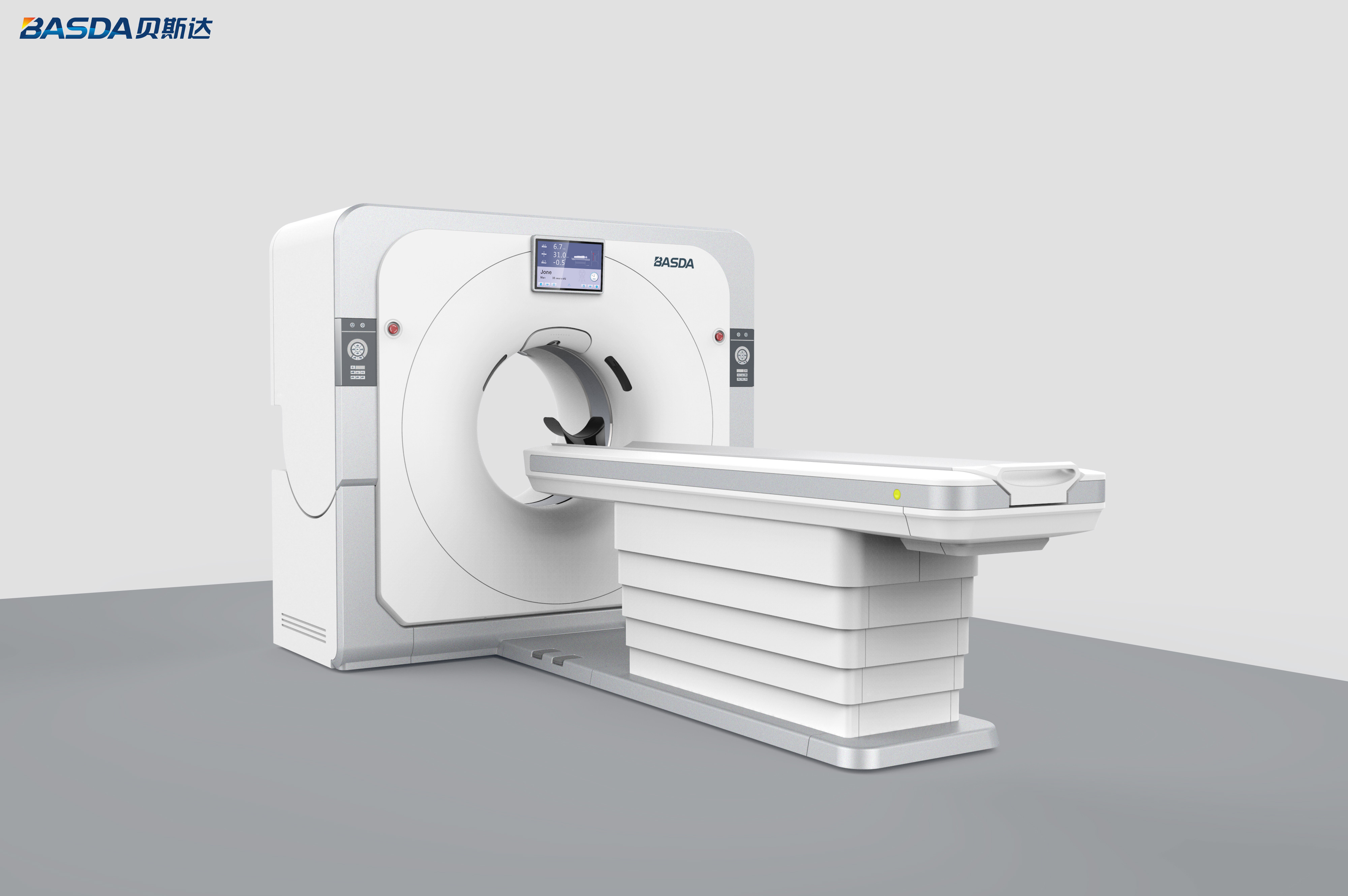

16 Slice Row Detector 76cm 8MHU CT Scan Machine / Computed Tomography System

16 Slice Row Detector 76cm 8MHU CT Scan Machine / Computed Tomography System

16 Slice Row Detector 76cm 8MHU CT Scan Machine / Computed Tomography System
16 Slice Row Detector 76cm 8MHU CT Scan Machine / Computed Tomography System
16 Slice Row Detector 76cm 8MHU CT Scan Machine / Computed Tomography System
Product Details:
Place of Origin: Shenzhen, China
Brand Name: BASDA
Certification: ISO 13485
Model Number: BCT-16
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden
Delivery Time: 30-45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Slices: 16 Hole: 76cm
Tube: 5.3MHU Maximum Output Power Of Generator: 50kW
High Contrast Resolution: ≥20lp/cm (0% MTF) Isotropic Imaging Resolution: 0.3mm
High Light:

8MHU CT Scan Machine

,

76cm CT Scan Machine

,

8MHU Computed Tomography System

CT scan,Computed Tomography system,16 slices detector,30 degree tilt, motor table

BCT-16 Introduction

Technical Aspects

1) New Generation Modularized Detector

  • The detector design uses an optimized ultra-high speed rare earth ceramic scintillating material that increases the quantum efficiency detection. The material also has a very quick decay time and is less susceptible to radiation damage. This design ensures longer life and stability of the detector and can produce good image quality at a lower dose.
  •
  • The unique compact ASIC chip allows the detector module to have a smaller overall package size. The ASIC has lower electronic noise, high sampling rates and has better detection performance at low contrast levels.
  •
  • An innovative anti-scatter grid (ASG) with optimized tungsten plates are used in the BCT-16 system. The ASG design fully meets the Scatter to Primary Ratio (SPR). The ASG design implements a special process to maintain its stability and interface to the detector modules.
  •
  • The detector is segregated from the heat generating sources in the gantry to reduce any temperature variations that the detector would be exposed to. This greatly improves the thermal stability and operating environment for the detector.


2) Multi-Point Temperature Control Technology

  • BCT-16 has multi-point temperature control technology; it measures the real-time gantry temperature changes and can rapidly adjust the system temperature through its cooling mechanism, ensuring a stable working condition for the system.
  •
  • Meanwhile, it also measures and controls the real-time detector temperature. This enables the temperature consistency in different detector modules and eliminates the artifacts caused by the temperature deviation between modules.

3) One-Side Integration Design For The Gantry Control Unit

  • BCT-16 system controls were designed and packaged to in a single location on the gantry.
  • This optimizes the cooling that is required for the components and provides a platform for meeting all of the shielding requirements for EMC.
  • In addition the system controls packaging design allows for minimum space being needed for maintenance.

4) Operation interface and operation flow

  • The GUI or operator interface was designed with the end user in mind.
  • The operator interface is simple and allows easy operation of the system while being fully functional and meeting the functionality requirements of the end user.

5) Scanning Parameters

  • BCT-16 has the fastest scanning speed among all the 16-slice systems with a scan speed of 0.5 s/360°.
  • This not only gives you quicker patient throughput but also reduces any motion artifacts that would be due to any respiratory motion.
  • The helical pitch range of BCT-16 is 0.25~2.0, the maximum helical scan time is 100s, and the maximum helical scan range is 1700 mm.

6) Intelligent dose control technology(WIP)

  • BCT-16 is equipped with imA intelligent dose control technology which can automatically adjust the generator's current output according to the different X-ray attenuations that are needed for scanning the different areas of the patients anatomy.
  •
  • The mA value is updated and optimized to only use what is necessary for a specific area of the patient’s anatomy.
  •
  • This allows the image quality to be uniform across the entire scan range and also reduces the radiation dose received by the patient.

7) Auto bolus tracking(WIP)

  • BCT-16 is equipped with the auto bolus tracking function.
  • Detecting the CT value changes in the region of interest (ROI) after the contrast agent has been injected.
  • When the CT value exceeds the set threshold, the scan will be triggered automatically.

8) Distinguished Image Quality

  • Under the support of powerful hardware and technology, BCT-16 is able to achieve a distinguished image quality, using the CATPHAN phantom, at 120 kVp, 200mA, with a scan speed of 1s with a slice thickness of 1.2 mm.
  • High contrast resolution can be achieved of 14 lp/cm at MTF = 10%, 21.8 lp/cm @ MTF = 0% and a low contrast resolution can be achieved to 3 mm @ 0.3%.









No. Item Specification
1 Gantry
1.1 Patient Opening 76cm
1.2 Gantry Driven Type Motor-driven
1.3 Tilt Capability ±30°
1.4 Gantry Remote-Control Yes
1.5 Detector Type GOS high-definition solid detector
1.6 Distance of Focus-Isocenter 570mm
1.7 Numbers of Detector Rows 24
1.8 Width of Z-Axle Detector 20mm
1.9 Detector Columns of Channels per Row 864
1.10 Numbers of Detector Columns 27648
1.11 Slice Number 16
1.12 DAS Column Number 55296
1.13 DAS Acquisition Modes 32×0.625mm
16×1.25mm
8×2.5mm
4×5.0mm
2×10mm
1.14 Data-Transfer Type RF,optical fiber communication
1.15 3D Laser Orientation Provided
1.16 Automatic Exposure Control Provided
1.17 Auto-Voice Function Yes
2 Scan Parameter
2.1 Shortest 360 Degree Rotation Time 0.5s
2.2 Allowed Rotation Times

0.5s,0.6s,0.7s

0.8s,1.0s,2.0s

2.3 Slice Numbers of Rotation 32
2.4 Minimum Scan Slice Thickness 0.625mm
2.5 Minimum Reconstruction Thickness 0.625mm
2.6 Maximum Scan Slice Thickness 10mm
2.7 Reconstruction Slice Thickness 0.625mm
2.8 Speed of Image Reconstruction 40 frames/s
2.9 Scan FOV 50cm
2.10 Max. Image Reconstruction Matrix 1024×1024
2.11 Max. Image Display Matrix 1024×1024
2.12 Maximum Continuous Scan Duration 100s
2.13 Maximum Continuous Scan Length 1950mm
2.14 Range of Pitch 0.13-1.5
2.15 Scan Mode Scout Scan
Axial Scan
Helical Scan
Cine Scan
3 HV generator and Tube
3.1 Maximum Output Power of Generator 50kW
3.2 Tube kV Selections

80kV,100kV

120kV,140kV

3.3 Tube mA Range 10~420mA
3.4 Tube Heat Capacity 8MHu
3.5 Heat Dissipation Rate >1000 kHU/min
3.6 Type of Cooling Oil cooling + Air cooling
3.7 Tube Focus

1.1mm×1.1mm

0.5mm×1.0mm

3.8 Flying Focal Spot Technology Provided
3.9 mA Modulation Technology Provided
4 Patient Table
4.1 Can Position Outside of Scan Room Yes
4.2 Laser Position System Accuracy ±1mm
4.3 Maximum Horizontal Movable Range 1950mm
4.4 Table Horizontal Scan Range 1850mm
4.5 Table accuracy 0.25mm
4.6 Table Vertical Movable Range 425~990mm
4.7 Maximum Speed of Vertical Movement 16.5mm/s
4.8 Maximum Speed of Horizontal Movement 5 mm/s ~ 160 mm/s ±3%
4.9 Maximum Patient Weight 250kg
4.10 Foot Pedal of Table Optional
5 Image Quality
5.1 High Contrast Resolution

≥20lp/cm

(0% MTF)

5.2 Low Contrast Resolution

3.0mm@0.30%

(31mGy)

5.3 Isotropic Imaging Resolution 0.3mm
5.4 Range of CT Value -1000~+1000
5.5 Image Noise ≤70dB
6 Computer
6.1 CPU 4coreX3.5Hz
6.2 Memory 32GB
6.3 Storage of Hard-Disk 5TB
6.4 Monitor 24’’ LCD Monitor
6.5 Resolution of Monitor 1920 x 1200
6.6 Image-Data External Storage Type CD/DVD/USB
6.7 DICOM 3.0 Provided
6.8 Worklist Provided
6.9 3D Post-Processing MPR,CPR,SSD,MIP,VR,CTA
6.10 Contrast Agent Automatically Tracking and Trigger Technology Provided
6.11 X-ray intelligent control technology Provided
6.12 Maximum CTA Scan Range 1850mm
6.13 Beam Artifacts Correction Technology Provided
6.14 Posterior Fossa Image Optimization Technology Provided
6.15 Metal Artifacts Algorithm Provided
6.16 Scalpel Simulate Technology Provided
6.17 Child Mode Provided





1 Console CPU 1
RAM 1
HDD 1
GPU 1
Standard mouse and keyboard 1
2 Power adaptor   1
3 CT voice control system   1
4 Gantry Laser light 1
Control system 1
Detector 1
Tube 1
HV generator 1
5 Cable   1
6 Table   1
7 Table mattress   1
8 Head support   1
9 Knee support   1
10 Forehead belt   1
11 Mandible belt (L size)   1
12 Mandible belt (S size)   1
13 Abdomen – thorax belt   1
14 Abdomen – thorax belt (S size 1)   1
15 Abdomen – thorax belt (S size 2)   1
16 Operating manual   1
17 Phantom   1
18 Phantom support   1
