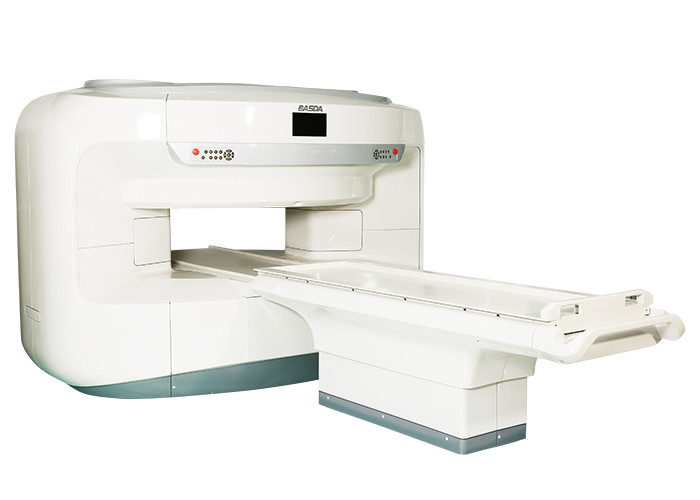

0.7 Tesla Open MRI Machine

0.7 Tesla Open MRI Machine

0.7 Tesla Open MRI Machine
0.7 Tesla Open MRI Machine
0.7 Tesla Open MRI Machine
Product Details:
Place of Origin: Guangdong, P.R.C.
Brand Name: Basda Medical
Certification: CE, ISO13485
Model Number: Bstar-070
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 1 unit/wooden box
Delivery Time: 30-45 Days
Payment Terms: Credit card, Paypal, T/T, Western Union, MoneyGram
Supply Ability: 200 Machines per Year
Contact Now
Detailed Product Description
Other Name: Superconducting MRI Total Capacity Of Liquid Helium: 120 L
Magnet: 0.7T Open Technology: Self Shielding
Table Load: Up To 200kg Shielding Type: Self Shielding
High Light:

0.7 tesla Open MRI Machine

,

0.7 tesla open mri scanner

,

120L Open MRI Machine

BSTAR-070 open type superconducting MRI 0.7T good image quality less consumption dual column strong gradient and RF


Shinning Features:

  1. The world’s first open type superconductive MRI product
  2. the system combines with both superconductive magnetic resonance system’s advantage of fast scanning speed
  3. high image signal-to-noise ratio features
  4. same advantage of patient comfort and low operating cost as permanent magnet MRI



Evolution Compared To Conventional Permanent Magnet MRI:



In the magnet structure, Bstar-070 uses liquid helium get the superconductive environment, and equipped by multiple Helmholtz superconducting coil charging with current to generate the magnetic field, the magnetic field strength is 0.7T.



The Helmholtz coil is made of a number of same radius coil, the coils are coaxial concatenated placed. The coil array can generate up to dozens tesla's magnetic field.





Special Characteristic of This Product:

A, very large open space;

B, very good magnet stability without the interference of magnet temperature.

C, very good magnet field homogeneity.

D, Liquid helium only 120L, much better than any 1.5T MRI system.

E, 46cm magnet gap, even better than permanent MRI system.

F, perfectly support the MRI intervention operations.



The magnet system config with two sets of superconducting coil, inside set and outside set. The inside coil is used to generate the magnetic field, the outside coil is used to limit the scope of magnet field, nameed "magnet curtain technology", with this technology the magnetic field can be limited in the range at minimum range. Two sets of coils are well connected to ensure the reliability and security of the system, together with dynamic shimming technology, the system can perform well at any time.

Bstar-070 using active and passive shimming technology, to ensure that the magnet field has a good uniformity, and the good magnet field uniformity is the cornerstone of good image quality and large FOV clinical application, even if the scanning field reaches 45cm, the system also can obtain good images.

Bstar-070 uses less than 120L liquid helium content, (when regular 1.5T superconductive MRI systems usually uses more than 1500L), even in case of quenching, the customer also do not need to worry about maintenance costs. The system uses 4k cold head imported from Japan, provide “liquid helium zero consumption technology”, the filling cycle of liquid helium is 4 years or longer.

Conventional superconductive MRI uses water-cooled helium compressor, the helium compressor need to continue working to keep the magnet temperature at superconductive environment, its cost on the electricity and water is a very large. Bstar-070 innovatively uses the air-cooled helium compressor, greatly reduce the electricity bills, and zero water consumption, help the user to save money.


Gradient sub system

Gradient sub system directly determine the spatial encoding of MRI system, it produces the signal information, at the same time it can perform GR series sequence scanning, it is the foundation of MRI system’s spatial resolution ability, gradient sub system also directly affect the scanning image thin slice scanning.

The linearity of gradient system of MRI system determine the accuracy of spatial location information, ensuring that in any acquisition, the image distortion is limited.

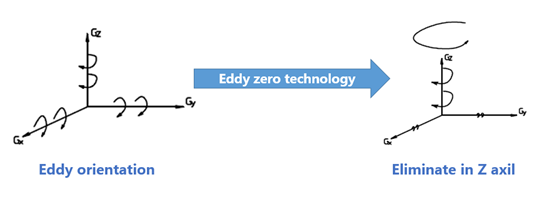

Gradient switching rate is an important factor of MRI scanning speed. Bstar-070 using the self-shielding gradient coil and high duty cycle gradient amplifier system, together with eddy zero technology and design, not only can avoid the eddy current between the metal shielding layers, but also can concentrate the eddy current from X axis and Y axis to Z axis, then by software algorithm, eliminate all eddy current. This technology can raise up the spatial encoding ability of the magnetic resonance signal and make the scan more precise, ensure high resolution image quality

When gradient system working its current is high, and switching rate is high as well, thus the noise emitted by MRI system is easy to make the patient discomfort, Bstar-070 using special hardware noise reduction design technology, the original gradient noise is reduced up to 66%, and Bstar-070 provides a friendlier scanning environment for the patients.

The gradient system using air cooling to save maintenance cost for the user.


RF sub system

The RF sub system is the source of MRI proton excitation energy, its efficiency directly affects the MRI relax signal. RF receiver receive MRI relax signal, a good receiving coil can improve the SNR of image.

The RF sub system is similar as highway lane, the more lanes, the faster flow of vehicles. Vice versa, the more the RF system channels, the faster parallel acquisition, thus the system can process the greater the amount of data in the same time, reduce the imaging time. Bstar-070 suing 4 channel radio frequency receiving, combined with the latest parallel sampling technology, using the DDC digital direct sampling, can short the scan time and get excellent image quality.


0.7 Tesla Open MRI Machine 0


0.7 Tesla Open MRI Machine 1

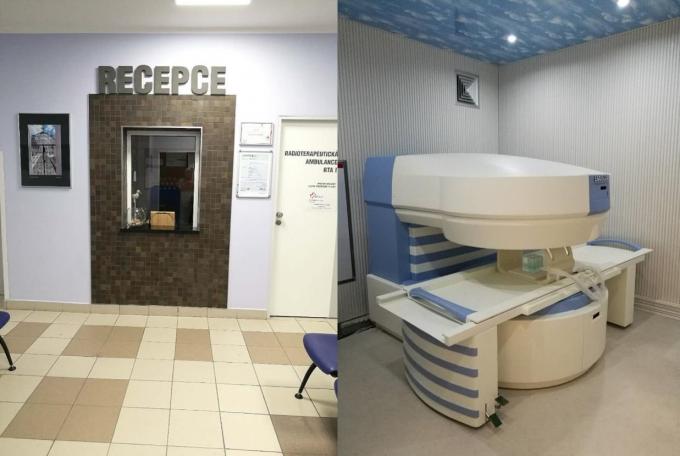

BTI-030 0.3 Tesla Permanent MRI Installed In Prague, Czech
