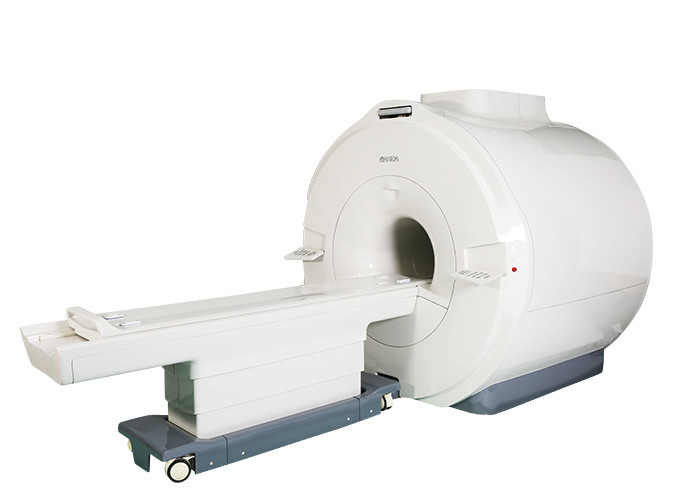

Dual Transmit RF Superconducting MRI Machine , Mri Scan 3 Tesla Machine BSTAR-300

Dual Transmit RF Superconducting MRI Machine , Mri Scan 3 Tesla Machine BSTAR-300

Dual Transmit RF Superconducting MRI Machine , Mri Scan 3 Tesla Machine BSTAR-300
Dual Transmit RF Superconducting MRI Machine , Mri Scan 3 Tesla Machine BSTAR-300
Dual Transmit RF Superconducting MRI Machine , Mri Scan 3 Tesla Machine BSTAR-300
Product Details:
Place of Origin: China
Brand Name: BASDA
Certification: ISO13485
Model Number: Bstar-300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 unit/wooden box
Delivery Time: 30-45 Days
Payment Terms: Credit card, Paypal, T/T, Western Union, MoneyGram
Supply Ability: 200 Machines per Year
Contact Now
Detailed Product Description
Machine Type: Bore Field Strength: 3.0 Tesla
RF: Dual Transmit Height Of Magnet: 60 Cm
Magnet Length: 160 Cm Magnet Material: Niobium-titanium Alloys
High Light:

3.0 Tesla Superconducting MRI Machine

,

Dual transmit RF Superconducting MRI Machine

,

Dual transmit RF 3 tesla mri scanner

BSTAR-300 superconducting MRI bore type low liquid helium good image quality fast scan 4k cold head strong gradient RF



At present, only two domestic brands passed SFDA's product registration for 3.0 Tesla superconducting MR. We proudly announce that Basda Medical is one of them.




Parameters
  • Main Field strength:3.0T
  • Spectrometer: Full Digital
  • Receiving Channel: 816
  • Receiving Coil: Phase Array Coils
  • Comprehensive scanning sequences
  • Advanced imaging techniques and clinical application
  • Zero consumption of liquid helium

Gradient sub system
  • During superconducting MRI scans, the noise is much bigger, and staying in a closed environment, the patient is easy to fall into tension. Bstar-300’s gradient sub system adopts special hardware noise reduction design technology, the gradient noise is reduced to 2/3, provide patients with friendly scanning environment.
  • The gradient system is equipped with automatic detection function, if the temperature is too high, the system can intelligently stop the scanning, to protection of hardware from being damaged.
  • The system use water chiller to produce a stable running condition.







RF sub system



The RF sub system is the source of MRI proton excitation energy, its efficiency directly affects the MRI relax signal. RF receiver receive MRI relax signal, a good receiving coil can improve the SNR of image.



The RF sub system is similar as highway lane, the more lanes, the faster flow of vehicles. Vice versa, the more the RF system channels, the faster parallel acquisition, thus the system can process the greater the amount of data in the same time, reduce the imaging time. Bstar-300 uses 16/32 channel radio frequency receiving, combined with the latest parallel sampling technology, using the DDC digital direct sampling, can short the scan time and get excellent image quality.



Rich coil configuration

The Receiver coil, together with parallel acquisition technology, improve the signal-to-noise ratio and image quality. The customer can choose according to the clinical needs (specific configuration of the coil number and types will be subject to final contract).
  • AIT coil set
  • Knee coil
  • Shoulder coil
  • Ankle coil
  • Wrist coil Breast coil







E-alarm technology



At the same time, in Bstar-300 configuration there is a special monitoring system, it is simple and easy to operate, it can real-time monitoring the magnet internal pressure, temperature and liquid helium level, if the magnet condition is abnormal, the monitoring system can automatically send alarm information to the user's phone, it can greatly reduce the risk of magnet quenches.





Water chiller set

Intelligent touch screen design, visual operation, and be convenient for maintenance.



  1. automatic overheating, leaking, fault detection, safe and reliable.
  2. one key recovery function.
  3. config with a set of spare water chilling unit, no need to have any worry about the system downtime.



Interactive environment

  1. Motor-driven patient table, 200kg weight capacity.
  2. High positioning accuracy.
  3. Built-in-magnet high resolution screen, the operation is convenient.
  4. Have emergency stop function, protect the patients.
  5. Support operation on both sides of the magnet, convenient and quick.



News



Dual Transmit RF Superconducting MRI Machine , Mri Scan 3 Tesla Machine BSTAR-300 0

Basda Medical Successfully Developed 3.0T MR



At present, only two domestic brands passed SFDA's product registration for 3.0 Tesla superconducting MR. We proudly announce that Basda Medical is one of them.



During the past 6-7 years, though some domestic manufacturers have successively introduced some 1.5T superconducting MRI, the key technology of 3.0T magnetic resonance has always been in the hands of a few oversea well-known brands. To give a vivid example, 1.5T superconducting magnetic resonance is like an intermediate family car which everyone can drive and conquer well. However, the 3.0T superconducting MR is an F1 racecar, and only a professionally trained driver can skillfully drive it. The metaphor is also true in the field of MRI machines. The design and development problems of 3.0T MRI has long plagued the major domestic brands.



Let's take a look at what are the majority "difficulties" in the design and development of a 3.0T MRI?



The first problem, as we all know, there is imaging noise similar to "white noise" in MRI scans procedure. Most of the noise comes from electronic equipment inherent in the patient's body and the MRI system. One of the most important goals of developing a magnetic resonance is to increase the "signal" while reducing the "noise". In this term, it means to enhance the “signal-to-noise” ratio. In fact, the method of reducing noise and improving signal-to-noise ratio is completely different for 3.0T MRI compared with 1.5T MRI. The R&D team of Basda Medical has taken painstaking technical research and adapted a novel sequence architecture and acquisition technology to raise the signal-to-noise ratio of 3.0T MRI to a new level.



The second problem is how to balance the higher field strength and stronger radio frequency and gradient systems in order to obtain better image clarity while providing faster scanning speed. 3.0T MRI has twice the magnetic field strength of 1.5T MRI. The problem solving also tests the research and development capabilities of MRI manufacturers. Through independent research and development of the key imaging technologies, the R&D team of Basda Medical has achieved a perfect balance between the two.



The third problem is the high SAR value and image interference caused by the high-intensity radio frequency excitation of 3.0T MR. The biological effect of radio frequency pulses on the human body is mainly manifested in the heating effect, which is SAR. The more frequency energy absorbed by human tissues, the higher temperature the tissue gets. The increase in body temperature is related to the duration of the radio frequency pulse, the rate of energy deposition, the temperature and humidity of the environment, and the state of the patient's thermoregulation system. The heat generated by radio frequency is strongly related to the MR frequency. The higher the frequency, the greater the heat generation. Therefore, the radio frequency pulse SAR of 3.0T magnetic resonance is much greater than 1.5T. The R&D team has repeatedly tens of thousands of scanning experiments to optimize the RF hardware and sequence pulse design to ensure patients’ safety.



The fourth problem is the application. How to connect the clinical application of advanced MR sequences between the diagnosis and scientific research? For instance, how to further optimize the imaging effect of fiber bundle tracing under ultra-high field DTI imaging, and how to further enhance both the accuracy and the speed of rapid MRI scanning? How to enhance the efficiency and image quality of whole body mosaic imaging? How to further reduce the noise caused by the ultra-high field gradient system? How to combine both the automatic positioning and diagnosis technology containing artificial intelligence components together? Basda Medical’s R&D team works closely with the clinical expert team, conducts repeated experiment, and integrates advanced sequences and clinical practices to better serve the practical diagnosis.



In addition to the problems listed above, there are many more problems with ultra-high field magnetic resonance. However, "the edge of the sword comes from sharpening, and the fragrance of plum blossom comes from the bitter cold." The National Development and Reform Commission issued public document of the "Three-Year Action Plan to Enhance the Core Competitiveness of Manufacturing Industry (2018-2020)", which proposes that the "13th Five-Year Plan" should focus on enhancing the core competitiveness of manufacturing industries such as the high-end medical devices and the key pharmaceutical technology industries. To respond to the call of our home country while adhering to the concept of "Technology Safeguards Our Lives", Basda Medical is here to defy the difficulties, forge ahead and stride forward to create a best-known advanced medical machine brands of made in China!
