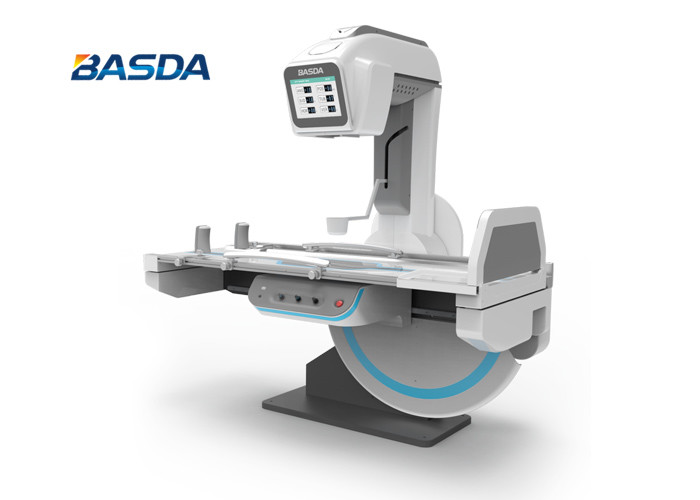

Dynamic Multi-Functional X-Ray (Digital Gastrointestinal Machine) 65kW Full size FPD
Product Description
Full-digital dynamic imaging system:
- The product can make fluoroscopy diagnosis without conventional X-ray image intensifier, IP board, static DR plate/film.
- The system config with dynamic tablet DR detector based on the latest technology, easy gastrointestinal angiography can be realized.
- Integrated embedded rack - operation table, humanized design, easy to operate
- Automatic fusion link exposure parameter function:

BTF-650DRF MAX provides automatic fusion link exposure parameter function, provides the following functions and features:
(1)the dynamic exposure parameters are set according to the perspective scan, and it can seamless connect to the static exposure parameters, without any additional operation, free and comfortable switching.
(2) the switching time is very short
(3)by this technology, the exposure process will not be interrupted by the switching operation, makes the film clear without artifact.
Full image chain digital control
(1)The core image chain components and the control of the whole image chain is fully digital interface, with high control accuracy and a large reduction in the dosage of patients.
(2)All the digital interface circuit and the sensor output signal are converted into digital signal, the microprocessor operations in digital form in order to realize the precision control of the high voltage generator.
(3)Its advantage is: operation ability, high precision, and a variety of complex exposure parameters combination can be programmed in the high voltage generator, the operator only needs to choose default exposure parameters at workstation, the system can easily get a perfect exposure.
(4)In addition, full digital design helps to reduce the system weight, reliability and service life.
AEC control system:
(1)Compared with common one-way control exposure of gastrointestinal machine on the market, BTF-650DRF MAX adopts the expensive AEC configuration, which can achieve the best image acquisition and the lowest exposure dose.
(2)BTF-650DRF MAX with AEC control system can reduce the X-ray exposure dose more than 80% lower than normal dose (in certain case), the image quality, image consistency is greatly improved.
(3)The AEC real-time closed loop monitoring of BTF-650DRF MAX controls the X - ray dose and reduce the patient's injury, realize low dose with improved image resolution.
Automatic switching function of recursive noise level:
(1)In order to solve the drag-and-tail phenomenon of moving organs, BTF-650DRF MAX adopts the self-developed noise level automatic switching system.
(2)The noise reduction levels are automatically adjust to the lower level, and the image is automatically adjusted to the high level when the image is static.
Detector
(1)A-Si material, clear images, high efficiency.
(2)Flat panel detector is the core part of DR. It is related with both image quality & small lesions and the lifetime, stability and received dose of patients. BASDAD DR detector uses whole-plate design and technique, combines spatial resolution, contrast resolution and quantum noise to provide excellent images.
(3)High noise-Low noise
(4)Fast image transmission technique.
(5)Intelligent digital image acquisition processing technique, film by one simple press, adjust image parameters by one key, obtain clear images easily.
(6)Super long lifetime
(7)Adapt with various environment
High voltage generator
(1)Use HF high voltage generator, stable output current, guarantees clear images, reduces soft X-ray harm to patients, equipped with failure automatic detection software, integrated with rich exposure mode, convenient operation and stable performance. It can monitor the tube in real-time and reach the best performance status, make sure low noise when image output.
(2)Soft ray is a byproduct of X-ray. It affects image quality, causes harm to human body. High inverter frequency of high voltage generator is the fundamental resolution to reduce soft rays. BASDA DR is equipped with HF high voltage generator, which reduces radiation effectively and ensures image quality.

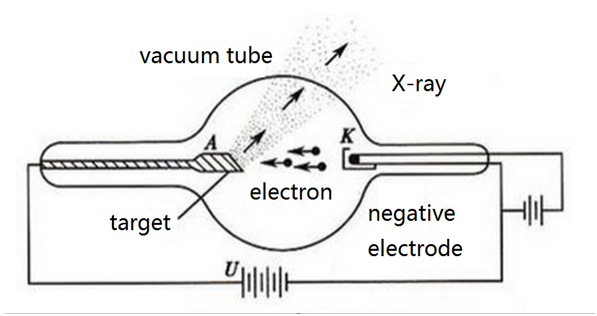

Tube
(1)Use tube with large heat capacity, rotating anode ensures super long lifetime.
(2)Tube focus meets the requirements of different body parts.
Image acquisition workstation
(1)Self-developed software, easy operation with abundant functions including patient registration, image acquisition, cutting, negative images, overturn, rotation, zooming, label, translation, window-width & level adjustment, DICOM images sending, DICOM film print, Wordlist, statistical query, etc., very simple and easy operation.
(2)Also supports PACS/RIS.
