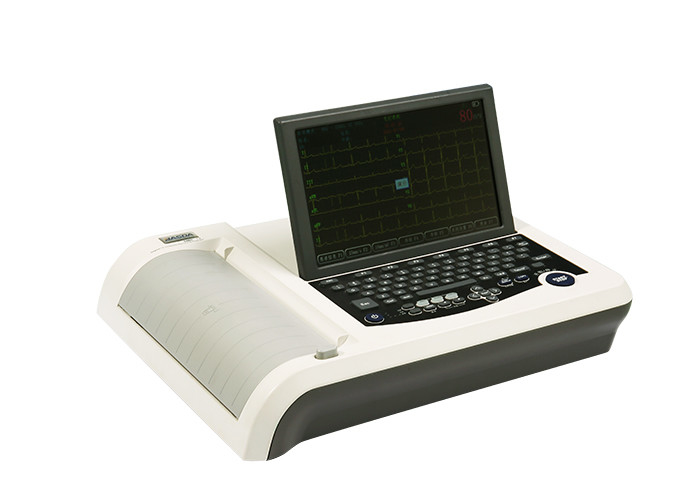

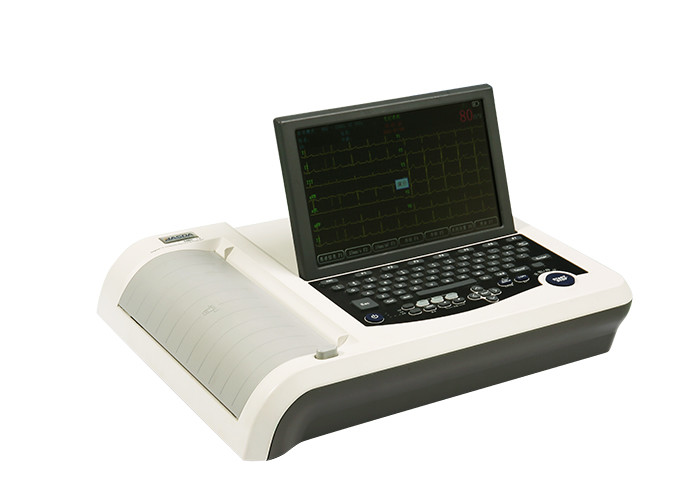

216mm Paper 10.2inch Screen 12 Channel Portable ECG Machine Standard Version

FAST DESCRIPTION

【Big LED Display】

10.2 inch graphic LED display, more convenient for patient information input and shortcut.

【Interpretation Function】

12 Lead 3 Channel machine with interpretation,12 lead simultaneous acquisition

【Automatically Measuring and Analyzing】

With automatically measuring and analyzing function for parameters to reduces the doctor’s burden and improves work efficiency.

【Battery Backup】

Built in rechargeable lithium battery. It is convenient for portable use.

【Printing Function】

Z-fold and roll printing thermal paper with 210/215 mm width, 30 m length with roll or Z-fold. With a high resolution thermal printer to print out trace, describing the trace clear and accurate, annotation as well as related parameters for diagnostic reference.

Features

• 12 Leads ECG simultaneous acquisition, digital signal processor, to get higher quality ECG waveforms through the AC filter, baseline filter and EMG filter of the ECG signals.

• 10.2-inch TFT Color LED shows the working status and ECG waveform; Touch screen and soft keyboard control, more convenient for operation.

• Simultaneous display of 3/6/12 leads ECG waveform, and the state of printing mode, sensitivity, speed, filter etc., to be easy for interpretation.

• Include multiform printing modes and format, such as 6+3 (rhythm), 6, 3+3 (rhythm), 4, 3+1 (rhythm), 3, 2, rhythm 7, rhythm 6, rhythm 5, rhythm 4, rhythm 3, rhythm 2, manual; the length of wave printing can be adjusted and the function of periodic printing is included to satisfy different applications.

• The instrument has the function of regular auto-analysis and auto-interpretation of ECG waveform parameter, provides measurement parameters such as HR, P-R interval, P Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1), etc. and auto-interpretation conclusion to help reducing doctor’s abundance and improve working efficiency.

• The power supply includes both AC/DC. This device includes built-in lithium polymer rechargeable battery which can standby for 2 hours, print 150 pieces of ECG waveform and print 45 minutes continually under thse best DC state to satisfy the need of visiting patients and physical examination.

• Support SD memory card storage which is easy for doctor review and statistic.Support laser printer printing. ECG software is optional.

• Under the review mode, you can see the saved ECG waveform, auto-analysis and auto-interpretation of ECG waveform parameter, auto-interpretation conclusion.

• Multi-language(English, Chinese, French, Italian, Spanish, Russian, Germany, Portuguese, Romanian, and Turkish) interface and report.

What comes with the machine?

✔Main Machine 1 set
✔Lead Wire 1 set
✔Limp Clip 4 pcs
✔Chest Suction Ball 6 pcs
✔Power Cable 1 pc

✔Printing Paper 1 roll
✔Fuse 1 pcs
