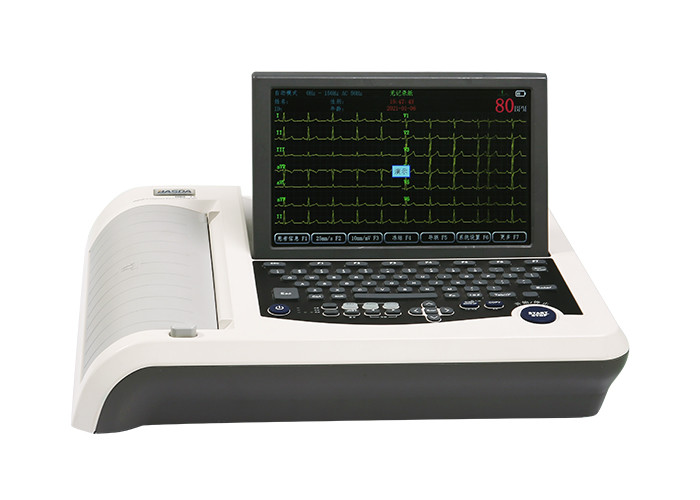

3/6/12 Channel Format Basda 12 Lead Portable Ecg Machine Basic Version

3/6/12 Channel Format Basda 12 Lead Portable Ecg Machine Basic Version

3/6/12 Channel Format Basda 12 Lead Portable Ecg Machine  Basic Version
3/6/12 Channel Format Basda 12 Lead Portable Ecg Machine  Basic Version
3/6/12 Channel Format Basda 12 Lead Portable Ecg Machine  Basic Version
Product Details:
Place of Origin: Guangdong, P.R.C.
Brand Name: Basda Medical
Certification: NMPA, ISO9001, ISO13485
Model Number: BEP-12
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: 1 unit/carton, 560mm*212mm*480mm
Delivery Time: Various by Logistics and Custom
Payment Terms: Credit card, Paypal, T/T, Western Union, MoneyGram
Supply Ability: 3 Days per 10 Units
Contact Now
Detailed Product Description
Printing Paper Size: 20-30 M Length Screen: 10.2-inch TFT LED Screen
Dimension: 420x400x95 Mm Power Source: Electricity
Weight: 4.12 KG After Sale Service: Online Technical Support Or Replacement
High Light:

Basic Version 12 Lead Portable Ecg Machine

,

Basda 12 Lead Portable Ecg Machine

,

Basda portable electrocardiogram machine

12 Lead Electrocardiogram Machine Portable Ecg Device 3/6/12 Channel Format【Basic Version】



Feature



● Portable delicate design, big color display and soft alphanumeric keyboard operation



10.2-inch TFT Color LED shows the working status and ECG waveform



Built-in rechargeable Lithium high capacity battery, Support SD Card to extend memory



Full alphanumeric keyboard with shortcut keys, efficient in operation, Portable handle, easy to carry



Built-in high resolution thermal printer, support roll and Z-fold paper, A4 printouts on internal or external printer*



Include multiform printing modes and format, such as 6+3 (rhythm), 6, 3+3 (rhythm), 4, 3+1 (rhythm), 3, 2, rhythm 7, rhythm 6, rhythm 5, rhythm 4, rhythm 3, rhythm 2, manual; the length of wave printing can be adjusted and the function of periodic printing is included to satisfy different applications.



● The power supply includes both AC/DC. This device includes built-in lithium polymer rechargeable battery which can standby for 2 hours, print 150 pieces of ECG waveform and print 45 minutes continually under thse best DC state to satisfy the need of visiting patients and physical examination.



The instrument has the function of regular auto-analysis and auto-interpretation of ECG waveform parameter, provides measurement parameters such as HR, P-R interval, P Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1), etc. and auto-interpretation conclusion to help reducing doctor’s abundance and improve working efficiency.



● Language: English, Chinese, French, Italian, Spanish, Russian, Germany, Portuguese, Romanian, and Turkish


3/6/12 Channel Format Basda 12 Lead Portable Ecg Machine  Basic Version 0

Specification:



Lead Standard 12 leads Time constant ≥3.2s
lead acquisition 12bit/1000Hz(synchronously 12 leads) Frequency response 0.05~160Hz(-3db)
Work mode 22 Series:Man / Auto/Analysis Noise level <15μVp-p
33 Series: Man / Auto/Analysis/Storage
Filter AC Filter : 50Hz / 60Hz Inter-channel Interference ≤0.5mm
EMG Filter : 25Hz / 45Hz
Anti-Drift Filter : 0.15Hz (Adaptive)
CMMR ≥100dB (with AC FILTER) Sensitivity 5,10,20, 40, Auto (mm/mV)
Input circuit Floating; Protection circuit against Recording mode 3ch+++,6ch,6ch+,12ch
Defibrillator effect Default Man. Mode is 3ch+ format
  Default Auto. Mode is 12ch+ format
Input Impedance ≥50MΩ Paper speed 6.25,12.5,25,50mm/s(±3%)
Input circuit current ≤0.05μA Paper 210/215 mm*30m Roll paper
210mm*140mm Z-fold paper (only for 33 series)
Patient current leakage <10μA Communication RS232/ USB port
Calibrating voltage 1mV±2% Power Supply AC 110-230V(±10%),50/60Hz(±1Hz),60VA
DC Built-in rechargeable battery,14.4V(4400mmAh)
Voltage tolerance ≥±500mV Dimension/Weight 330mm×270mm×72mm/3.8Kg






3/6/12 Channel Format Basda 12 Lead Portable Ecg Machine  Basic Version 1





3/6/12 Channel Format Basda 12 Lead Portable Ecg Machine  Basic Version 2







In the box:



✔Main Machine 1 set
✔Lead Wire 1 set
✔Limp Clip 4 pcs
✔Chest Suction Ball 6 pcs
✔Power Cable 1 piece
✔Fuse 1 piece
