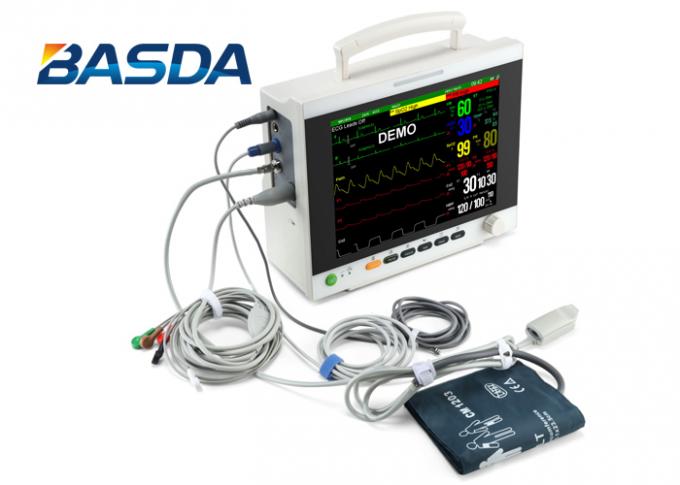

CE Certified TCP IP 800×600 Multi Parameter Patient Monitor 5 Lead ECG 50mm/s Printing

CE Certified TCP IP 800×600 Multi Parameter Patient Monitor 5 Lead ECG 50mm/s Printing

CE Certified TCP IP 800×600 Multi Parameter Patient Monitor 5 Lead ECG 50mm/s Printing
CE Certified TCP IP 800×600 Multi Parameter Patient Monitor 5 Lead ECG 50mm/s Printing
CE Certified TCP IP 800×600 Multi Parameter Patient Monitor 5 Lead ECG 50mm/s Printing
Product Details:
Place of Origin: Guangdong, P.R.C.
Brand Name: Basda Medical
Certification: CE, ISO
Model Number: BMP-9000JA
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: 1 unit/carton, 370*210*430mm size
Delivery Time: Various by Logistics and Custom
Payment Terms: Credit card, Paypal, T/T, Western Union, MoneyGram
Supply Ability: 3 Days per 10 Units
Contact Now
Detailed Product Description
Screen: Colour 12.1" TFT Safety Type: Class I, Type CF
Parameters: 5 Lead ECG, SpO2(F-5), NIBP, TEMP, RESP, PR, HR Dimension: 370*210*430mm Size
Gross Weight: 5.5 Kg Trace: 9 Waveforms (7 ECG, 1 SPO2 And 1 RESP)
RechargeableBattery: Built-in Lithium Battery
High Light:

TCP IP Multi Parameter Patient Monitor

,

800×600 Multi Parameter Patient Monitor

,

50mm/S Printing Portable Patient Monitor





Benefits and Features:



1. 12.1” color TFT display, high resolution: 800×600dpi;



2. Separated para board: ECG, NIBP, SpO2 board;



3. Full touch-screen enables intuitive operation by clicking on the specific parameters or the waveform in real-time, standard configuration includes the navigation knob.



4. Real-time S-T segment analysis, and ARR analysis;



5. SpO2 Pitch Tone Variation and Drug Dose Calculation;



6. Parameter waveform and characters color selectable



7. Multi-display: Standard, Large font, Trend Coexis, OxyCRG dynamic



8. Standby mode for Energy saving and suspend monitoring;



9. 7-lead ECG waveforms display in phase;



10. Capture dynamic waveforms;



11. Built-in rechargeable lithium battery, and battery volume checking,



12. AC power checking



13. Efficient resistance to interference of defibrillator and HF knife;



14. SINNOR F-6 SpO2 technology, VS NELLCOR accuracy;



15. Networking capacity and TCP/IP networking platform enable abundant future upgrade



16. Time delay switch-off function keep the monitor data restart monitor;



17. Complete and flexible mounting solution for transportation and in-patient monitoring





Performance Specifications



Display

12.1”color TFT

Rolling and refreshing waveform display

Resolution: 800×600

Multi display selectable including:

Large-font display

Trend coexist display

OxyCRG dynamic view display.

Bed-to-bed view display

Trend

Parameter graphic and tabular trends:

5s/piece, 8 hours;

1min/piece,168 hours(24hour×7days)

5min/piece,1000 hours.

Storage

NIBP: 1000 groups

Alarm: 200 groups

Full disclosure waveforms: 3600S

Battery

Rechargeable lead acid cell, 12v/4AH



Max.24 hour for charging, 4 hours for continue working

Alarm

User-adjustable High, Medium and Low limits 3-level



Audible and visual alarm

Indicator

Power/battery indicator light



QRS beep and alarm sound

Networking

Connected to central monitoring system

TCP/IP netting platform

Trace

9 waveforms(7 ECG, 1 SPO2 and 1 RESP)



Sweep speed:12.5mm/s,25mm/s,50mm/s

Recorder

Build-in, thermal array



Plethysmogram caveform:2 channels



Record mode: manual, on alarm, time-defined



Recording width: 50mm



Printing speed: 50mm/s

Recording type

Frozen waveform record



NIBP recall record



Trend table record



Alarm record



Fixed -time record







Specifications



Parameters

Technical Specifications

ECG

Lead mode: 5 –lead(R,L,F,N,C)

Lead selection : I, II, III, avR, avL, avF, V

Waveform: 3 and 7 channel selectable

Gain selection: 0.5mm/mv,1mm/mv,2mm/mv

Sweep speed: 12.5mm/s;25mm/s;50mm/s

Heart rate range: Adult: 15~300bpm;

Neonate/pediatric:15~350bpm

Accuracy: +1bpm or +1%,whichecer is greater

Resolution: 1bpm

Filter: surgery mode:1~20Hz

monitor model:0.5~40Hz

Diagnostic mode:0.05~130Hz

Scaling signal: 1mv,+3%

Protection: withstand 4000VAC/50 voltage isolation against electrosurgical interference and defibrillation

Alarm range: 15~350bpm

S-T segment detection:

Measurement range: 2.0mV~+2.0mV



Alarm Range: -2.0mV~ +2.0mV

Accuracy: -0.8mV ~+0.8Mv

Error: +0.02Mv

Respiration


Method: Thoracic impedance

Measurement range: Adult:7~120rpm;

Neonate/Pediatric:7~150rpm

Apnea alarm: YES,10~40s

Resolution: 1rpm

Accuracy: +2rpm

FHR

Transducer: Multi-crystal, Pulsed Doppler

Measurement range: 50~210 BPM

Working frequency: 1 MHz

Strength: <5mW/cm2

Signal processing:

special DSP system and modern recognization.

Resolution: 1BPM

Accuracy: ±1BPM

Alarm Range: High: 160,170,180,190 BPM,

Low: 100,110,120 BPM

TOCO Measuring

Manual button marking,

automatic FM identifying function

EtCO2

(Sidestream CO2)

Measurement range: 0~99mmHg

Accuracy: +2mmHg (0~40mmHg)

Sampling Range: 100ml/min

Sampling rate accuracy: 15%

Respiration rate: 0~120rmp

Respiration accuracy: +2rmp (0~70rmp)

+5rmp (>70rmp)

Respiration time: <240msec (10% to 90%)

Delay time: <2s

EtCO2

(Mainstream CO2)

Method: Infrared Spectrum

Range: 0.0-10% (0~76%)

Resolution: 1mmHg (0.1%)

Accuracy: <5%(±4.0 mmHg)

Or<10%(of Readings)

Recorder

Build-in, thermal array

Plethysmogram caveform:2 channels

Record mode: manual, on alarm, time-defined

Recording width: 50mm

Printing speed: 50mm/s

Recording type: Frozen waveform record

NIBP recall record

Trend table record

Alarm record

Fixed -time record

Scan Speed for ECG Waveform is adjustable 12.5mm/s accuracy ±10%

25mm/s accuracy±10%

50mm/s accuracy±10%
NIBP

Method: Digital Automatic oscillometric

Operation mode : Manual/Automatic/continuous

Auto measurement time: Adjustable(1~480min)

Measurement Unit: mmHg/Kpa selectable

Measurement types: Systolic, Diastolic, Mean

Measurement range:

Range of Systolic pressure: Adult: 40~270mmHg

Pediatric: 40~220mmHg

Neonate: 40~135mmHg

Range of mean pressure: Adult: 20~235mmHg

Pediatric: 20~165mmHg

Neonate: 20~110mmHg

Range of diastolic pressure: Adult: 10~215mmHg

Pediatric: 10~150mmHg

Neonate :10~100mmHg

Over-pressure protection: Double safety protection

Resolution: 1 mmHg

Alarm: Systolic, Diastolic, Mean

Resolution Pressure 1mmHg
Cuff Pressure ±3 mmHg
Accuracy ±10% or ±8mmHg, which is greater
Over-pressure Protection:
Adult Mode 315±10 mmHg
Pediatric Mode 265±10 mmHg
Neonatal Mode 155±10 mmHg
SPO2

Measurement range: 0~100%

Resolution: 1%

Accuracy: +2%(70-100%);0-69% unspecified

Arrhythmia analysis: YES

Alarm range 0~100%

Pulse Rate: range: 20~300bpm

Resolution: 1bpm

Error: +1bpm or +2%,whichever is greater

Pulse Rate(PR) Measuring and Alarm Range 0~250bpm
Resolution 1bpm
Measuring Accuracy ±2bpm or ±2%, which is greater
Alarm Accuracy ±2bpm
TEMPERATURE

Compatible probe: YSI or CYF

Measurement range: 5~50℃

Resolution : 0.1℃

Accuracy: +0.1℃

Refreshing time: about 1

Average measuring time: <10s

IBP

Channel: 2 channels

Range: -50-300mmHg

Resolution: 1mmHg

Accuracy: ±4mmHg(±4%)

Unit: mmHg, Kpa

Converter Sensitivity: 5mV/V/mmHg

Transducer sites: ART/PA/CVP/LAP/RAP/ICP







Miscellaneous



Safety:

Safety level: Class I, type CF









Dimension and Weight



Dimension: 37*21*43CM

G.W.: 5.5KGS











Operation Environment



Temperature: Working 0~+40℃

Transportation and storage –20~+60℃

Humidity: working≤85%

Transportation and storage≤93%

Power: AC 100-240, 50/60Hz

Patient range: Neonate, pediatric, and adult patients











CE Certified TCP IP 800×600 Multi Parameter Patient Monitor 5 Lead ECG 50mm/s Printing 0







What is in the box?





1. Reusable ECG Leadwires----1 set

2. LNOP Reusable SpO2 Sensor----1 set

3. NIBP Hose----1 set

4. Chest electrode (10pcs/set)

5. Temperature Trunk Cables----1 set

6. 5 Lead ECG Electrodes----1 set

7. Power Cord----1 set

9. Grounding Cable----1 set

10. ECG Recording Paper----1 set

11. D-lite++ Patient Spirometry Sets----Optional
