| Place of Origin: | China |
| Brand Name: | BASDA |
| Certification: | ISO13485 |
| Model Number: | Bstar-150F |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 unit/wooden box |
| Delivery Time: | 30-45 Days |
| Payment Terms: | Credit card, Paypal, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Machines per Year |
| Liter Of Liquid Helium: | 0 Liter | Water-fat Separation: | Yes |
|---|---|---|---|
| Machine Type: | Bore | RF: | Dual Transmit |
| Gradient Cooling System: | Water Cooling | Shimming Type: | Active, Passive & Dynamic |
| High Light: | Zero Liquid Helium Superconducting MRI,1.5T Superconducting MRI,Superconducting MRI Machine |
||
Basda Medical has been a leader in China’s MRI field for many years, not only with its range of bench top scanners but also with its digital X Ray machine, ultrasound and nuclear medicine machine, which have the widest range of capabilities both for pre-clinical and whole body scanners.

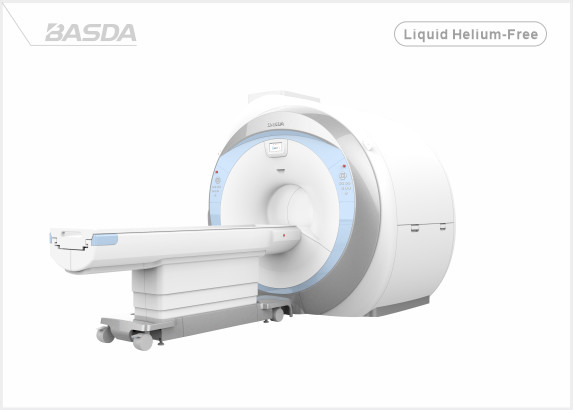

Bstar-150 true helium free magnet has many features including 9 advantages.
1) There is no liquid helium in the machine meaning there is no liquid helium loss under any circumstances.
2) There is no risk of frostbite or suffocation for doctors and patients.
3) The system is equipped with the functions of automatically dropping the field when the power is cut off, and automatically raising the field when the power is restored.
4) Using cloud interconnection technology, the status of the magnet can be viewed remotely through a mobile phone, and the system can be remotely operated such as lifting and lowering the field.
5) It can be installed in any country and region, completely isolated from the influence of liquid helium supply;
6) There is no need to configure a quench tube like the traditional 1.5T superconducting MRI, which protects the safety of patients and surrounding residents to the greatest extent.
7) Lower service tower height makes site selection easier;
8) Available with shipping, air transportation and land transportation which greatly minimizes the difficulty of magnet transportation;
9) The new magnet architecture platform adopts modular design with higher integration. After quenching under blackout, the magnet field can be automatically restored in a short period of time without the need for professional engineers to arrive on site.
Gradient sub system directly determines the spatial encoding of MRI system, it produces the signal information, at the same time it can perform GR series sequence scanning, it is the foundation of MRI system’s spatial resolution ability, gradient sub system also directly affect the scanning image thin slice scanning.
The linearity of gradient system of MRI system determine the accuracy of spatial location information, ensuring that in any acquisition, the image distortion is limited.
Gradient switching rate is an important factor of MRI scanning speed. Bstar-150 using the self-shielding gradient coil and high duty cycle gradient amplifier system, together with eddy elimination technology and design, can avoid the eddy current between the metal shielding layers, raise up the spatial encoding ability of the magnetic resonance signal and make the scan more precise, ensure high resolution image quality.
During superconducting MRI scans, the noise is much bigger than permanent MRI systems, and staying in a closed environment, the patient is easy to fall into tension. Bstar-150’s gradient sub system adopts special hardware noise reduction design technology, the gradient noise is reduced to 2/3, provide patients with friendly scanning environment.
The gradient system is equipped with automatic detection function, if the temperature is too high, the system can intelligently stop the scanning, to protection of hardware from being damaged.
The system use water chiller to produce a stable running condition.
