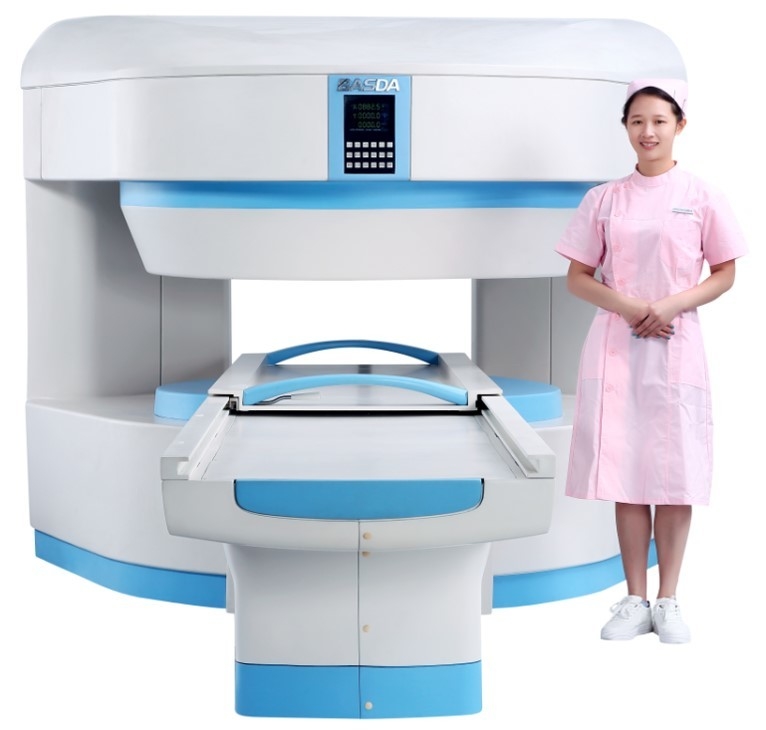

Wide Open C Shape 0.5 Tesla Permanent Magnet MRI Machine BTI-050

Wide Open C Shape 0.5 Tesla Permanent Magnet MRI Machine BTI-050

Wide Open C Shape 0.5 Tesla Permanent Magnet MRI Machine BTI-050
Wide Open C Shape 0.5 Tesla Permanent Magnet MRI Machine BTI-050
Wide Open C Shape 0.5 Tesla Permanent Magnet MRI Machine BTI-050
Product Details:
Place of Origin: Guangdong, P.R.C.
Brand Name: Basda Medical
Certification: CE, ISO13485
Model Number: BTI-050
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 1 unit/wooden box, international export packing
Delivery Time: 30-45 Days
Payment Terms: Credit card, Paypal, T/T, Western Union, MoneyGram
Supply Ability: 200 Machines per Year
Contact Now
Detailed Product Description
Shape: Open MRI Material: Magnet
Magnetic Field: 0.5T RF System Type: Digital Transmit And Receive
Gradient: Self Shielding Shielding: Copper
High Light:

0.5 Tesla Permanent Magnet MRI Machine

,

C Shape Permanent Magnet MRI Machine

,

0.5 Tesla medical mri machine

0.5T MRI Machine Wide Open C-Shape Permanent MR 0.5 Tesla Magnetic Resonance MR Diagnostic medical Imaging

0.5T Permanent MRI Machine

  • Much open and comfort

More patient comfort and more space for surgery. Affinity C-shape magnets, creating a maximum of openness, offer a maximum vision for patients, especially leave much space comfort for obese patients, minimizing claustrophobia of patients and providing more space for MR intervention surgery.



  • Very good gradient system

Gradient system helps to provide higher resolution pictures, BTI-050 gradient system(X,Y,Z) gradient intensity is 25mT/m,Higher the gradient intensity, faster imaging speed, shorter of scanning time; Higher the gradient intensity, thinner of imaging slice, higher of image resolution



  • The new technology

4D shimming:

Use of advanced active shimming algorithm for real-time automatic shimming on each examination to ensure the magnetic field always maintain the highest uniformity. Magnetic field homogeneity and stability of the MRI images always are the most important guarantee of the high-resolution, high SNR and high contrast. They are the important indicators of the level of magnet design, the better the smaller the value, directly determines the SNR of the image, like a car chassis, stability is essential, the magnetic field uniformity is maintained at <2.5ppm in 40cm the DSV Vrms, the system can complete a wide range of scanning (40cm).



Eddy Zero Technology:

  1. Magnet design uses breakthrough anti-eddy current technology
  2. The gradient coil using self-shielded active anti - eddy current technology
  3. Implementation of precision eddy current compensation algorithm, completely eliminate the impact of eddy current
  4. The eddy current because of the high gradient and high slew rate come from ultra-fast sequence was resolved completely, which guarantee to get the best clinic image

​Advanced RF System

Fast 4 channels RF system

​All phased array coils provide best SNR pictures.





Wide Open C Shape 0.5 Tesla Permanent Magnet MRI Machine BTI-050 0



0.5T Permanent MRI Machine installed in Moscow, Russia





No. Item Specification
1 Magnet System
1.1 Magnet Type Permanent magnet with automatic constant temperature system
1.2 Field strength 0.5T
1.3 Magnet shape Dual-column
1.4 Homogeneity (40cm, DSV, VRMS) ≤2.5ppm
1.5 Shim method Active/Passive/Dynamic
1.6 Magnet vertical gap 41cm
1.7 Accessibility (Horizontal opening angle) 274°
1.8 5 Gauss fringe field 2.5m*2.5m*2.5m
2 Gradient System
2.1 Gradient field strength (Single Axis) 25mT/m
2.2 Gradient slew rate (Single Axis) 75mT/m/ms
2.3 Rise time 0.3ms
2.4 Gradient cooling system(Gradient coils and power electronics) Air
3 RF System
3.1 Spectrometer Fully digital
3.2 RF system type Digital Transmit and Receive
3.3 Number of RF channel 4
3.4 Transmitter amplifier peak power 6kW
3.5 RF bandwidth of receiver Each 400KHz
3.6 Dynamic range ≥80dB
3.7 Noise factor 0.3dB
3.8 Coil type Phase array
3.9 Head coil Available
3.10 Neck coil Available
3.11 Body coil (small) Available
3.12 Body coil (large) Available
3.13 Knee coil Available
3.14 Ankle coil Available
3.15 Shoulder coil Available
3.16 Soft coil Available
3.17 Breast coil Available
3.18 Wrist coil Available
  Remark: The coil configuration is subject to the final contract
4 Patient communication
4.1 Max. patient weight 200Kg
4.2 High accurate position assist Yes
4.3 Localizer Yes
4.4 Position accurate ≤1mm
4.5 Position accessories Yes
4.6 Emergence call Yes
4.7 Communication system Yes
5 Computer system
5.1 Host computer Dual core
5.2 System software BASDA
5.3 OS WINDOWS 7
5.4 CPU clock rate ≥2.8GHz, be able for extension
5.5 Main memory ≥2GB, be able for extension
5.6 Color LCD monitor 24”
5.7 Keyboard and mouse Standard
5.8 Hard disk ≥250GB, be able for extension
5.9 Media driver CRW / DVD
5.10 DICOM 3.0 Yes
5.11 Ethernet Yes
6 Scanning parameter
6.1 Max. FOV 410mm
6.2 Min. FOV 20mm
6.3 Min. 2D Thickness 1mm
6.4 Min. 3D thickness 0.1mm
6.5 Max. Image matrix 1024*1024
7 Scanning sequence &imaging technology
7.1 Spin echo 2D/3D (SE 2D/3D) Yes
7.2 Multi-slice multi-echo(MSME) Yes
7.3 Gradient echo(GRE 2D/3D) Yes
7.4 Steady state process gradient echo( SSPGRE) Yes
7.5 Fast spin echo (FSE) Yes
7.6 Fast double echo(FDE) Yes
7.7 Fast recover fast spin echo(FRFSE) Yes
7.8 Single shot fast spin echo(SSFSE) Yes
7.9 Multi shot fast spin echo (MSFSE) Yes
7.10 Inversion recovery (IR) Yes
7.11 Inversion recovery fast spin echo (IRFSE) Yes
7.12 Short time inversion recovery (STIR) Yes
7.13 Fluid attenuated inversion recovery (FLAIR) Yes
7.14 Gating technology Yes
7.15 Breath holding scan Yes
7.16 TOF 2D MRA Yes
7.17 TOF 3D MRA Yes
7.18 Diffusion weighted imaging (DWI) Yes
7.19 Max. b Value 1000s/mm2
7.20 Magnetization transfer (MTC) technology Yes
7.21 MIP Yes
7.22 MinIP Yes
7.23 3D position Yes
7.24 Pre-saturation technology (PS) Yes
7.25 Pre-saturation adjustment technology Yes
7.26 Part metal implant scan technology Yes
7.27 Automatic coil tuning Yes
7.28 MRM Yes
7.29 MRU Yes
7.30 MRCP Yes
7.31 Online image filtration Yes
7.32 Online post procession Yes
7.33 Optimal algorithm of active shimming Yes
7.34 Scan sequence queuing Yes
7.35 Multi-layer and multi-angle scanning technology Yes
7.36 Optimize bandwidth acquisition technology Yes
7.37 Flow compensation Yes
7.38 Parallel acquisition technology Yes
7.39 Section acquisition technology Yes
7.40 Scan parameter preset Yes
7.41 Oversampling technology Yes
7.42 Image fusion technology Yes
7.43 Artifact suppression technology Yes
7.44 Thin imaging technology Yes
7.45 Movie playback technology Yes
7.46 Post processing package Yes
