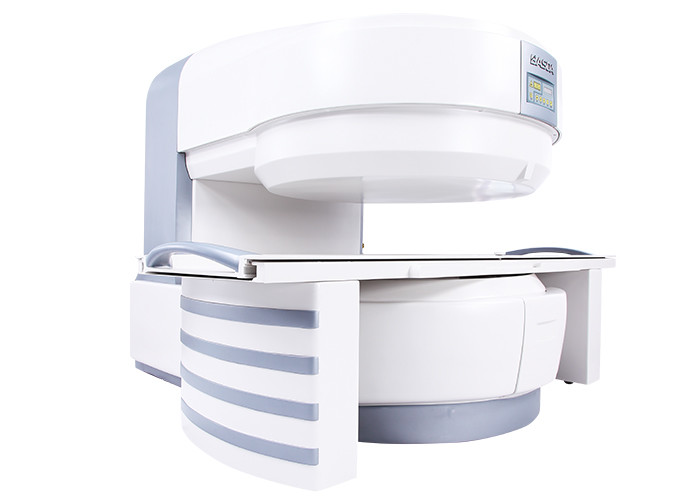

Low Field Open C-Shape 0.35 T Permanent Magnet MRI Machine BTI-035

Low Field Open C-Shape 0.35 T Permanent Magnet MRI Machine BTI-035

  • Low Field Open C-Shape 0.35 T Permanent Magnet MRI Machine BTI-035
  • Low Field Open C-Shape 0.35 T Permanent Magnet MRI Machine BTI-035
Low Field Open C-Shape 0.35 T Permanent Magnet MRI Machine BTI-035
Product Details:
Place of Origin: Guangdong, P.R.C.
Brand Name: Basda Medical
Certification: CE, ISO13485
Model Number: BTI-035
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 1 unit/wooden box
Delivery Time: 30-45 Days
Payment Terms: Credit card, Paypal, T/T, Western Union, MoneyGram
Supply Ability: 200 Machines per Year
Contact Now
Detailed Product Description
Material: High Grade Nd-Fe-B Magnet Magnetic Field: 0.35T
Shape: Open C-Shape Spectrometer: Fully Digital
Shielding Material: Copper Number Of RF Channel: 4
High Light:

0.35 T Permanent Magnet MRI Machine

,

4 Channels Permanent Magnet MRI Machine

,

0.35 T mri device

BTI-035 Low Field 0.35 T MRI Scanner Permanent Magnet Open MRI Machine for Diagnostic Medical Imaging

0.35T Permanent MRI system

BASDA launched BTI-035 permanent MRI system in the year 2004, since then BASDA attracted many high-tech talents researched and developed this MRI product with our self-independent intellectual property. BTI-035 combined many pioneering MRI imaging technology and human based humanized design concept, make it achieving high. BTI-035 lead a technical revolution in the permanent MRI field.

BTI-035 permanent MRI system, not only had accumulated the products’ technical essence from major companies home and abroad, but also followed the developing trend, and with constant innovation, breakthrough in the industry field and achieved:
Low Field Open C-Shape 0.35 T Permanent Magnet MRI Machine BTI-035 0












1. Eddy zero technology
Make sure the imaging quality achieved qualitative improve.
The shimming algorithm technology (ensure field strength with high uniformity and stability), ensure the MRI system operating stably with high quality and high performance.

The high magnetic uniformity, high stability, fast and accurate position operation are always the hard breakthrough technical bottleneck. BTI-035 permanent MRI system not only breakthrough the bottleneck historically, and achieved the “high stability, high performance, high imaging quality and high efficiency”. And with the special designed high power gradient magnet field for BTI-035, it achieved as an all-new concept permanent MRI system.


2. Much open and comfort
More patient comfort and more space for surgery. Affinity C-shape magnets, creating a maximum of openness, offer a maximum vision for patients, especially leave much space comfort for obese patients, minimizing claustrophobia of patients and providing more space for MR intervention surgery.


3. Very good gradient system
Gradient system helps to provide higher resolution pictures, BTI-035 gradient system(X,Y,Z) gradient intensity is 25mT/m,Higher the gradient intensity, faster imaging speed, shorter of scanning time; Higher the gradient intensity, thinner of imaging slice, higher of image resolution


4. The new technology

4D shimming:

Use of advanced active shimming algorithm for real-time automatic shimming on each examination to ensure the magnetic field always maintain the highest uniformity. Magnetic field homogeneity and stability of the MRI images always are the most important guarantee of the high-resolution, high SNR and high contrast. They are the important indicators of the level of magnet design, the better the smaller the value, directly determines the SNR of the image, like a car chassis, stability is essential, the magnetic field uniformity is maintained at <2.5ppm in 40cm the DSV Vrms, the system can complete a wide range of scanning (40cm).

Low Field Open C-Shape 0.35 T Permanent Magnet MRI Machine BTI-035 1

Eddy Zero Technology:
a) Magnet design uses breakthrough anti-eddy current technology
Low Field Open C-Shape 0.35 T Permanent Magnet MRI Machine BTI-035 2

b) The gradient coil using self-shielded active anti - eddy current technology
Low Field Open C-Shape 0.35 T Permanent Magnet MRI Machine BTI-035 3

c) Implementation of precision eddy current compensation algorithm, completely eliminate the impact of eddy current
The eddy current because of the high gradient and high slew rate come from ultra-fast sequence was resolved completely, which guarantee to get the best clinic image.

5. Advanced RF system
Fast 4 channels RF system
All phased array coils provide best SNR pictures.
Low Field Open C-Shape 0.35 T Permanent Magnet MRI Machine BTI-035 4


BTI-035 Specification:



No. Item Specification
1 Magnet System
1.1 Magnet Type Permanent magnet with automatic constant temperature system
1.2 Field strength 0.35T
1.3 Magnet shape C-shape
1.4 Homogeneity (40cm, DSV, VRMS) ≤2.5ppm
1.5 Shim method Active/Passive/Dynamic
1.6 Magnet vertical gap 40cm
1.7 Accessibility (Horizontal opening angle) >270°
1.8 5 Gauss fringe field 2.5m*2.5m*2.5m
2 Gradient System
2.1 Gradient field strength (Single Axis) 25mT/m
2.2 Gradient slew rate (Single Axis) 75mT/m/ms
2.3 Rise time 0.3ms
2.4 Gradient cooling system(Gradient coils and power electronics) Air
3 RF System
3.1 Spectrometer Fully digital
3.2 RF system type Digital Transmit and Receive
3.3 Number of RF channel 4
3.4 Transmitter amplifier peak power 6kW
3.5 RF bandwidth of receiver Each 400KHz
3.6 Dynamic range ≥80dB
3.7 Noise factor 0.3dB
3.8 Coil type Phase array
3.9 Head coil Available
3.10 Neck coil Available
3.11 Body coil (small) Available
3.12 Body coil (large) Available
3.13 Knee coil Available
3.14 Ankle coil Available
3.15 Shoulder coil Available
3.16 Soft coil Available
3.17 Breast coil Available
3.18 Wrist coil Available
  Remark: The coil configuration is subject to the final contract
4 Patient communication
4.1 Max. patient weight 200Kg
4.2 High accurate position assist Yes
4.3 Localizer Yes
4.4 Position accurate ≤1mm
4.5 Position accessories Yes
4.6 Emergence call Yes
4.7 Communication system Yes
5 Computer system
5.1 Host computer Dual core
5.2 System software BASDA
5.3 OS WINDOWS 7
5.4 CPU clock rate ≥2.8GHz, be able for extension
5.5 Main memory ≥2GB, be able for extension
5.6 Color LCD monitor 24”
5.7 Keyboard and mouse Standard
5.8 Hard disk ≥250GB, be able for extension
5.9 Media driver CRW / DVD
5.10 DICOM 3.0 Yes
5.11 Ethernet Yes
6 Scanning parameter
6.1 Max. FOV 400mm
6.2 Min. FOV 20mm
6.3 Min. 2D Thickness 1mm
6.4 Min. 3D thickness 0.1mm
6.5 Max. Image matrix 1024*1024
7 Scanning sequence &imaging technology
7.1 Spin echo 2D/3D (SE 2D/3D) Yes
7.2 Multi-slice multi-echo(MSME) Yes
7.3 Gradient echo(GRE 2D/3D) Yes
7.4 Steady state process gradient echo( SSPGRE) Yes
7.5 Fast spin echo (FSE) Yes
7.6 Fast double echo(FDE) Yes
7.7 Fast recover fast spin echo(FRFSE) Yes
7.8 Single shot fast spin echo(SSFSE) Yes
7.9 Multi shot fast spin echo (MSFSE) Yes
7.10 Inversion recovery (IR) Yes
7.11 Inversion recovery fast spin echo (IRFSE) Yes
7.12 Short time inversion recovery (STIR) Yes
7.13 Fluid attenuated inversion recovery (FLAIR) Yes
7.14 Gating technology Yes
7.15 Breath holding scan Yes
7.16 TOF 2D MRA Yes
7.17 TOF 3D MRA Yes
7.18 Diffusion weighted imaging (DWI) Yes
7.19 Max. b Value 1000s/mm2
7.20 Magnetization transfer (MTC) technology Yes
7.21 MIP Yes
7.22 MinIP Yes
7.23 3D position Yes
7.24 Pre-saturation technology (PS) Yes
7.25 Pre-saturation adjustment technology Yes
7.26 Part metal implant scan technology Yes
7.27 Automatic coil tuning Yes
7.28 MRM Yes
7.29 MRU Yes
7.30 MRCP Yes
7.31 Online image filtration Yes
7.32 Online post procession Yes
7.33 Optimal algorithm of active shimming Yes
7.34 Scan sequence queuing Yes
7.35 Multi-layer and multi-angle scanning technology Yes
7.36 Optimize bandwidth acquisition technology Yes
7.37 Flow compensation Yes
7.38 Parallel acquisition technology Yes
7.39 Section acquisition technology Yes
7.40 Scan parameter preset Yes
7.41 Oversampling technology Yes
7.42 Image fusion technology Yes
7.43 Artifact suppression technology (K_Rotat) Yes
7.44 Thin imaging technology Yes
7.45 Movie playback technology Yes
7.46 Post processing package Yes





Low Field Open C-Shape 0.35 T Permanent Magnet MRI Machine BTI-035 5



Our 0.35 Tesla Permanent MRI Installed in Uganda
