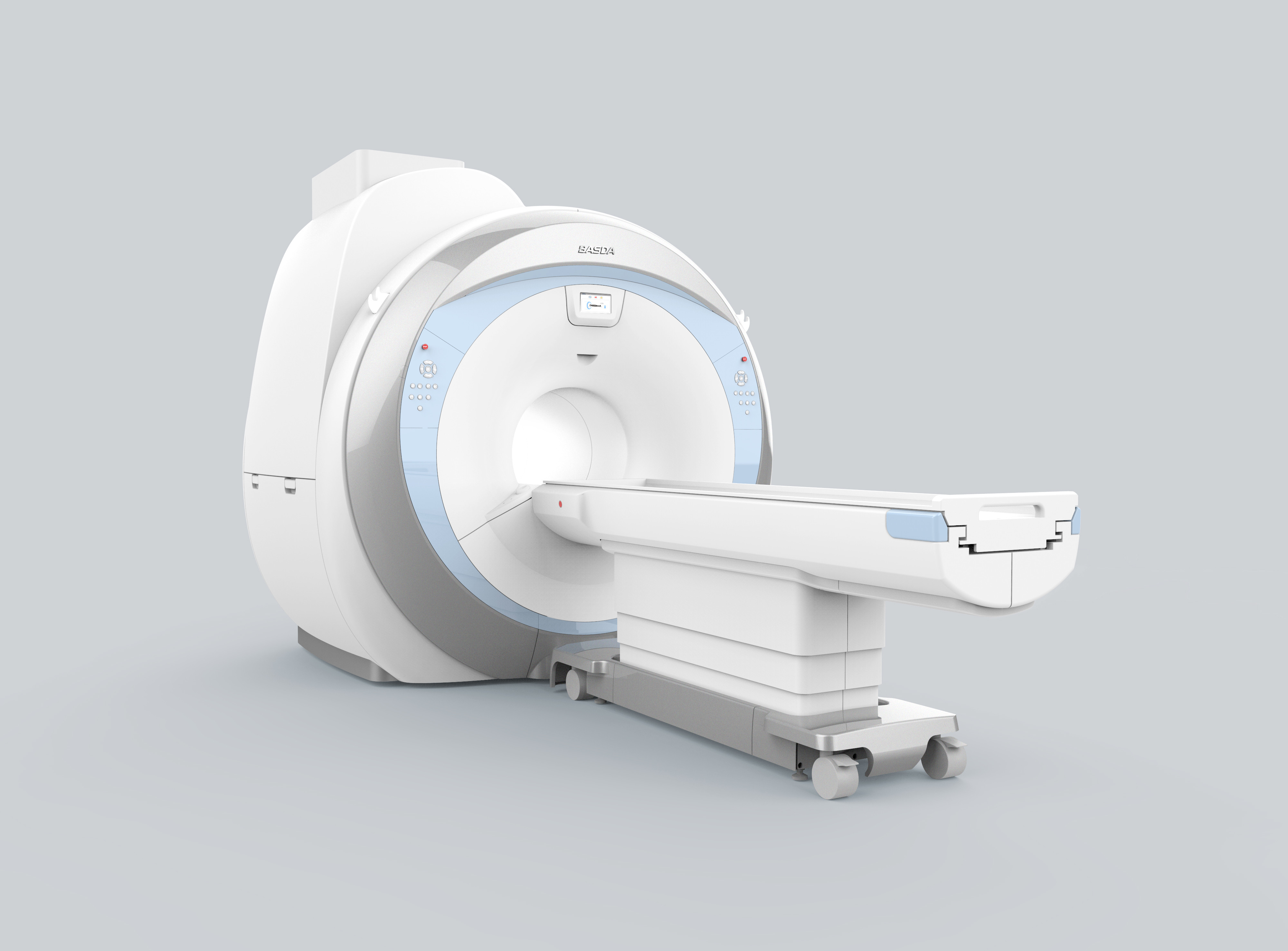

1.5T Superconducting MRI Scanner Bore Shape MRI Machine BSTAR-150

1.5T Superconducting MRI Scanner Bore Shape MRI Machine BSTAR-150

1.5T Superconducting MRI Scanner Bore Shape MRI Machine BSTAR-150
1.5T Superconducting MRI Scanner Bore Shape MRI Machine BSTAR-150
1.5T Superconducting MRI Scanner Bore Shape MRI Machine BSTAR-150
Product Details:
Place of Origin: China
Brand Name: BASDA
Certification: CE, ISO13485
Model Number: Bstar-150
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 unit/wooden box
Delivery Time: 30-45 Days
Payment Terms: Credit card, Paypal, T/T, Western Union, MoneyGram
Supply Ability: 200 Machines per Year
Contact Now
Detailed Product Description
Name: Superconducting MRI Magnet Material: Liquid Helium
Shape: Bore Noise: Low
Magnet Height: 60 Cm Max Load Of Table: 200 Kg
High Light:

200kg load mri scan equipment

,

200kg Load Large Mri Machine

,

1.5t Mri Scan Equipment

BSTAR-150 bore type superconducting MRI automatic table low liquid helium 4k cold head strong gradient RF



Magnet



1) its config 4k cold head is from Japan whose brand is Sumitomo and provides “zero” consumption of the liquid helium.

2) its bore size is 60cm that helps to reduce the patient’s claustrophobic fear, effectively avoid the involuntary movement which may cause the image artifacts and other potential risk.

3) it has fastest scanning speed, and the image quality is also much better than permanent MRI.

4) it uses all famous parts suppliers ensuring the stable system quality.




Magnet sub system

Bstar-150 using advanced active shielding superconducting magnet, has the following features

1, the magnetic field uniformity is excellent;
2, good magnetic field stability;
3, config with "zero liquid helium consumption" technology, the liquid helium refill time interval is more than 4 years;
4, magnet diameter is 600mm, the bore openness is suitable for most of the obese patients.


Gradient sub system

Gradient sub system directly determines the spatial encoding of MRI system, it produces the signal information, at the same time it can perform GR series sequence scanning, it is the foundation of MRI system’s spatial resolution ability, gradient sub system also directly affect the scanning image thin slice scanning.

The linearity of gradient system of MRI system determine the accuracy of spatial location information, ensuring that in any acquisition, the image distortion is limited.

Gradient switching rate is an important factor of MRI scanning speed. Bstar-150 using the self-shielding gradient coil and high duty cycle gradient amplifier system, together with eddy elimination technology and design, can avoid the eddy current between the metal shielding layers, raise up the spatial encoding ability of the magnetic resonance signal and make the scan more precise, ensure high resolution image quality.

During superconducting MRI scans, the noise is much bigger than permanent MRI systems, and staying in a closed environment, the patient is easy to fall into tension. Bstar-150’s gradient sub system adopts special hardware noise reduction design technology, the gradient noise is reduced to 2/3, provide patients with friendly scanning environment.

The gradient system is equipped with automatic detection function, if the temperature is too high, the system can intelligently stop the scanning, to protection of hardware from being damaged.

The system use water chiller to produce a stable running condition.

RF sub system

The RF sub system is the source of MRI proton excitation energy, its efficiency directly affects the MRI relax signal. RF receiver receive MRI relax signal, a good receiving coil can improve the SNR of image.

The RF sub system is similar as highway lane, the more lanes, the faster flow of vehicles. Vice versa, the more the RF system channels, the faster parallel acquisition, thus the system can process the greater the amount of data in the same time, reduce the imaging time. Bstar-150 suing 8 / 16 channel radio frequency receiving, combined with the latest parallel sampling technology, using the DDC digital direct sampling, can short the scan time and get excellent image quality.



E-alarm technology

At the same time, Bstar-150 has a special monitoring system which simple and easy to operate. It can real-time monitor the magnet internal pressure, temperature and liquid helium level. If the magnet condition is abnormal, the monitoring system can automatically send alarm information to the user's phone which can greatly reduce the risk of magnet quenches.





Interactive environment

1. Motor-driven patient table, 200kg weight capacity.

2. Built-in-magnet high resolution 8 inch screen, the operation is convenient.

3. Have emergency stop function, protect the patients.

4. High positioning accuracy.

5. Support operation on both sides of the magnet, convenient and quick.





Water chiller set

Intelligent touch screen design, visual operation, and be convenient for maintenance.

automatic overheating, leaking, fault detection, safe and reliable.

one key recovery function.

config with a set of spare water chilling unit, no need to have any worry about the system downtime.




Rich Coil Configuration

The Receiver coil, together with parallel acquisition technology, improve the signal-to-noise ratio and image quality. The customer can choose according to the clinical needs (specific configuration of the coil number and types will be subject to final contract).
  • AIT coil set
  • Head coil
  • Neck coil
  • Body coil
  • Knee coil
  • Shoulder coil
  • Ankle coil
  • Wrist coil
  • Breast coil


1.5T Superconducting MRI Scanner Bore Shape MRI Machine BSTAR-150 0

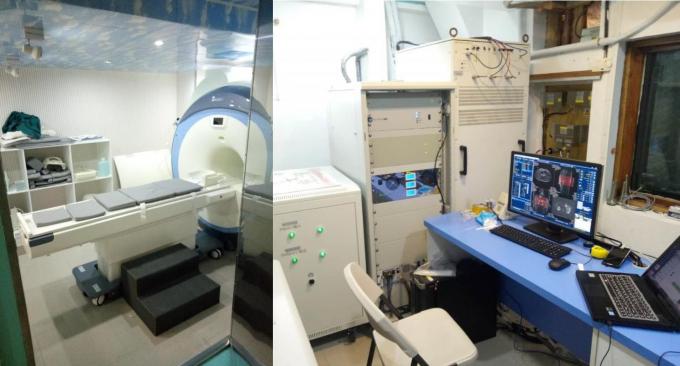

Bstar-150 1.5T Superconducting MRI Installed in Manila, Philippines
