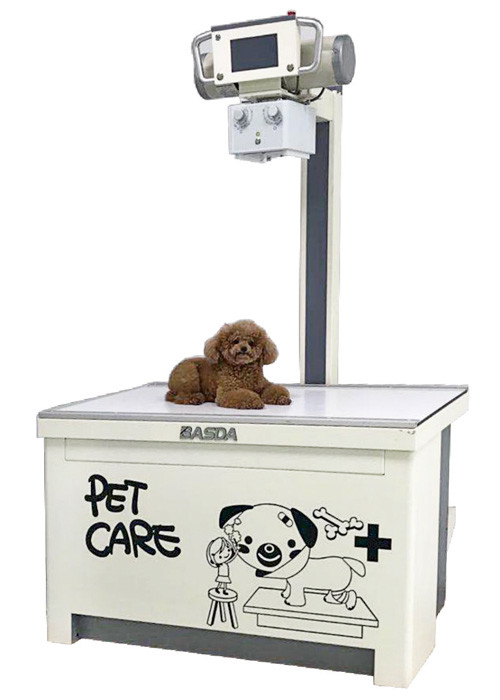

Stationary AC220V 20kW Veterinary Digital Radiography Equipment

Stationary AC220V 20kW Veterinary Digital Radiography Equipment

  • Stationary AC220V 20kW Veterinary Digital Radiography Equipment
Stationary AC220V 20kW Veterinary Digital Radiography Equipment
Product Details:
Place of Origin: Guangdong, P.R.C.
Brand Name: Basda Medical
Certification: NMPA
Model Number: Veterinary DR
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 1 unit/wooden box
Delivery Time: 10 days
Payment Terms: Credit card, Paypal, T/T, Western Union, MoneyGram
Supply Ability: 100 Units Per Month
Contact Now
Detailed Product Description
Power: 20 Kw Exposure Time: 1-10000 Ms
Power Supply: 220V±22V, 50Hz±1Hz Package: Wooden Box
Digital Detector: Flat Panel After-Sale Service: Online Technical Support
High Light:

20kW Veterinary Digital Radiography Equipment

,

AC220V Veterinary Digital Radiography Equipment

,

20kW veterinary digital x ray machine

Veterinary 20kW Power High Frequency DR System Stationary Digital X-Ray Radiology DR Equipment





High Voltage Generator Power: ≥20kW



Input Power: AC 220V, single phase current, 50/60Hz



Optional function of all-wheel-drive bed with brake



Bed load-bearing: 100 kg







Features



Image Acquisition and Processing Image Editing and Processing
Dynamic Range Optimization Unique Patient Information Management Platform
Controllable Exposure Parameters Support Film Printer







Component Description
High Voltage X-ray Generator
  • Power: 20 kW
  • Voltage range: 40~125 kV, 1 Kv Step
  • Input voltage: 220V AC
  • Frequency: 50Hz
  • Inverter frequency: ≥125KHz
  • Support remote exposure
VET Detector



  • CsI 139μm
  • 17 inch * 17 inch
  • 3.6 lp/mm
  • 14 bit
  • 3K*3K
Tube Voltage 40-125 kV, 1 kV step
Tube Current 10-320 mA
Rotary Anode Speed 2800 rmp
Exposure Time 1-10000 ms
MAS Range 1-320 mAs
APR Storage 2400 sets







Optional Function





Mobile X-Ray Device



The whole machine electric power, the transverse arm as electric lifting.



Easy to operate, flexible rotating arm.





Rotary Anode Speeed



10000 rmp



Exposure Control



software



touch screen



Double Flat Panel



Customized Touch Screen



One Buttom Boot-up Function
