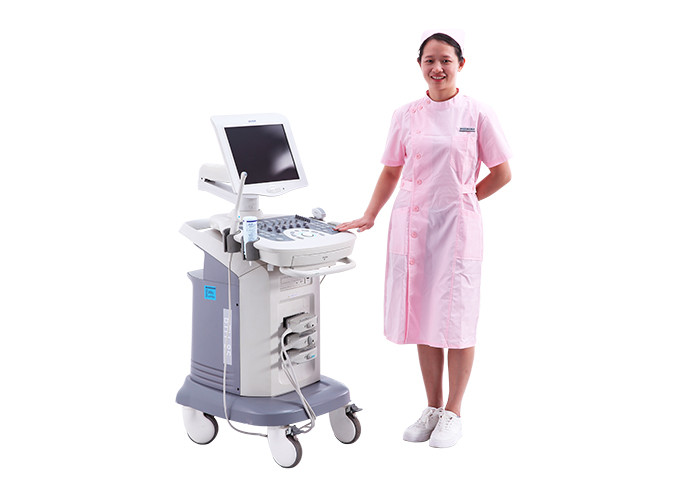

Endocavity Probe BASDA Color Ultrasound Medical Ultrasound Machine BTH-90S

Endocavity Probe BASDA Color Ultrasound Medical Ultrasound Machine BTH-90S

  • Endocavity Probe BASDA Color Ultrasound Medical Ultrasound Machine BTH-90S
Endocavity Probe BASDA Color Ultrasound Medical Ultrasound Machine BTH-90S
Product Details:
Place of Origin: China
Brand Name: BASDA
Certification: NMPA
Model Number: BTH-90S
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: 1 unit/wooden box
Delivery Time: 8 Work Days
Payment Terms: Credit card, Paypal, T/T, Western Union, MoneyGram
Supply Ability: 100 Units Per Month
Contact Now
Detailed Product Description
Clinical Use: Color Doppler Type: Cartbase
Body Parts: Full Body Probe1: Convex
Probe2: Linear Probe3: Endocavity
High Light:

Endocavity Probe Medical Ultrasound Machine

,

BASDA Medical Ultrasound Machine

,

BASDA medical ultrasound equipment

Endocavity Probe BASDA Medical Ultrasound Machine BTH-90S



As a leading and innovative medical technology and digital solutions provider in China, Basda Medical was established in 2000. Located in Shenzhen, the frontier city of China’s “reform and opening up”, Basda Medical has emerged and developed as a national high-tech company focusing on R&D, production, trading, and services on medical imaging, digital solutions and radiotherapy products.



The core technicalstaffs atBasda Medicalare the one of the earliest technical teams engaging in medical magnetic resonance R&D in China. Our company has obtained several hundred intellectual property rights such as patents, software copyright, proprietary technologies, etc. as the core R&D team collaborate to break through the technical barriers, master the key algorithms, conquer the main components and achieve the system innovation. Insisting on self-innovation while rooted in effective cooperation mechanisms on production, study, research and clinical trial, Basda Medical has established long-term partnership with China’s best knownuniversities such as Peking University, Harbin Institute of Technology, Southern Medical University and etc.



Basda Medicalwon numerous honors and was qualified as "National High-tech Enterprise", “Second Place of National Technology Invention", "Key Hi-tech Enterprise of State Torch Program", "First Place of China Machinery Industry Science and Technology Award", "ProvincialHigh Field MRI System Engineering and Technology R&D Center", "Shenzhen Technology Innovation Award", “Intellectual Property Management System”, etc.. Furthermore, numerous technology innovation and projects gained financial support and partnering from major investment institutions, national and regional government.



5 out of 9 series products of Basda Medical are included in the key research areas of China’s government directed program "Made in China 2025". Basda Medicalhas high profile among China’s medical imaging manufacturers due to several facts. We are known as the one of the earliest manufacturers of 3.0T MRI system in China. We successfully developed the world's first 0.5T and 0.7T open superconducting MRI systems. We producedChina’s first specialized extremity MRI systems and first SPECT with independent intellectual property right. With a decades-long track record of delivering high quality, high-tech products and excellent service, At present, it has more than 3000 global users, becoming the backbone of import's high-end medical products substitution, our markets cover all domestic provinces and more than 40 countries and regions globally ranging from Europe, America, Africa, the Middle East, to Asia.



Basda Medical continues to deliver on "technology safeguards our lives" promise as we strive to become the world’s most admired leading enterprise in the new medical imaging era. We are passionate about technology and driven by innovation, and always dedicate to excellent products and service for customers. We dream, we dare and we strive to create an effortless and healthy life for everyone.


BTH-90S Specification

1 Application
It is mainly applied for ultrasonic diagnosis and scientific research of abdomen, obstetrics and gynecology, reproduction, blood vessels, heart, superficial tissue, breast, neonates, surgery ,nerves, etc.

Endocavity Probe BASDA Color Ultrasound Medical Ultrasound Machine BTH-90S 0

2 Specification:

2.1 Include:

2.1.1 High resolution B imaging
2.1.2 Color doppler imaging (CDI )
2.1.3 Pulse wave doppler (PWD)
2.1.4 Continuous wave doppler (CWD)
2.1.5 Power doppler imaging (PDI)
2.1.6 Direction Power doppler imaging (DirPDI)
2.1.7 M mode imaging
2.1.8 Tissue harmonic imaging
2.1.9 Harmonic fusion imaging
2.1.10 Spatial composite imaging
2.1.11 Adaptive speckle noise suppression
2.1.12 Extend imaging
2.1.13 Parallelogram imaging
2.1.14 Trapezoid imaging
2.1.15 Smart one key imaging optimization
2.1.16 Freehand 3D imaging
2.1.17 Static 3D imaging
2.1.18 Real-time 3D/4D imaging
2.1.19 Optional tissue doppler imaging
2.1.20 Optional anatomical M imaging

Endocavity Probe BASDA Color Ultrasound Medical Ultrasound Machine BTH-90S 1

2.2 Measurement and analysis:

2.2.1 Preset parameters: for different examined organs, the optimal image examination parameters are preset to reduce the adjustment during operation; users are permitted to define and save preset parameters
2.2.2 General measurement
2.2.3 Obstetrics measurement
2.2.4 Gynecology measurement
2.2.5 Vessel measurement
2.2.6 Urology measurement
2.2.7 Cardiac measurement
2.2.8 Abdomen measurement
2.2.9 User defined measurement
2.2.10 Doppler blood flow measurement
2.2.11 Small organs and superficial tissue measurement
2.2.12 Auto doppler spectrum tracking and analysis
2.2.13 *Optional auto measurement of intima-media thickness

Endocavity Probe BASDA Color Ultrasound Medical Ultrasound Machine BTH-90S 2

2.3 Patient data management:

2.3.1 Patient data include: personal information, image, cine, report, etc
2.3.2 Patient data establishment, storage, playback, modification, retrieval and printing
2.3.3 Built-in integrate ultrasound workstation
2.3.4 Image storage format: PNG, JPEG, BMP
2.3.5 Cine storage format: AVI
2.3.6 Optional DICOM 3.0

3 Technical parameters:

3.1 System general configure:

3.1.1 Full digital beamformer
3.1.2 Multibeam parallel processing
3.1.3 Dynamic focusing and apodization
3.1.4 A/D sampling: ≥ 14 BIT
3.1.5 Monitor: ≥19 inch, high resolution LED color monitor that can be moved up, down, left and right
3.1.6 Touchscreen: ≥10 inch,high sensitivity capacitive touchscreen
3.1.7 Control panel: ergonomic design
3.1.8 Transducer interfaces:≥4, fully activated, transducer can be connected to any connectors freely
3.1.9 Interfaces: network, DVI, USB
3.1.10 Built-in DVD recorder
3.1.11 Harddisk: ≥ 1T
3.1.12 Support U disk or mobile HDD storage
3.1.13 Support black white printer and color printer

Endocavity Probe BASDA Color Ultrasound Medical Ultrasound Machine BTH-90S 3

3.2 Transducer specification:

3.2.1 Support transducer type: convex array, linear array, phased array, endocavity, volume
3.2.2 Supports biopsy guide
3.2.3 Visual and adjustable transducer frequency ≥4, all modes of B ,color and doppler frequency are adjusted independently
3.2.4 Frequency range:
Convex array transducer frequency: 2.5-5.5 MHz
Phased array transducer frequency: 1.7-5.0 MHz
Linear array transducer frequency: 4.0-14.0 MHz
Endocavity transducer frequency: 3.0-10.0 MHz
Volume transducer frequency: 2.0-6.0 MHz
3.2.5 Imaging modes:
Convex array transducer: B/M/CDI/PWD
Linear array transducer: B/M/CDI/PWD
Endocavity transducer: B/M/CDI/PWD
Phased array transducer: B/M/CDI/PWD/CWD
Volume transducer: B/M/CDI/PWD/3D/4D

3.3 B imaging parameters:

3.3.1 Display mode: B, B/B,4B, M,B/M
3.3.2 Gain adjustion: TGC ≥8; LGC ≥8
3.3.3 Transmit beam focusing: ≥7
3.3.4 Scan lines density: ≥512
3.3.5 Gray scale ≥ 256
3.3.6 *Scanning depth ≥ 30cm
3.3.7 Visual and adjustable dynamic range: 30 ~ 180dB
3.3.8 B images playback ≥10000 frames
3.3.9 B scanning rate:
phased array transducer: when depth is 18 cm, the full-field scanning
frame rate ≥ 65 f/s
convex array transducer: when depth is 18 cm, the full-field scanning
frame rate ≥ 50 f/s

Endocavity Probe BASDA Color Ultrasound Medical Ultrasound Machine BTH-90S 4

3.4 Color doppler imaging parameters:

3.4.1 Type: CDI, PDI, Dir PDI
3.4.2 Display modes: B/CDI, B/PDI, B/Dir PDI
3.4.3 B and color dual real-time contrast
3.4.4 Zero movement: ≥8 levels adjustable
3.4.5 Steer angle: linear array transducer image steer range: -20°~ +20°

3.5 Spectral doppler imaging parameters:

3.5.1 Type: PWD, CWD, HPRF
3.5.2 Display modes: B/PWD, B/CWD, B/HPRF, B/CDI/PWD, B/CDI/CWD
3.5.3 The maximum blood flow velocity : ≥5 m/s by PWD ; ≥10 m/s by CWD
3.5.4 The lowest blood flow velocity:≤0.5 mm/s (non-noise signal)
3.5.5 Sampling width : 0.5 - 30 mm
