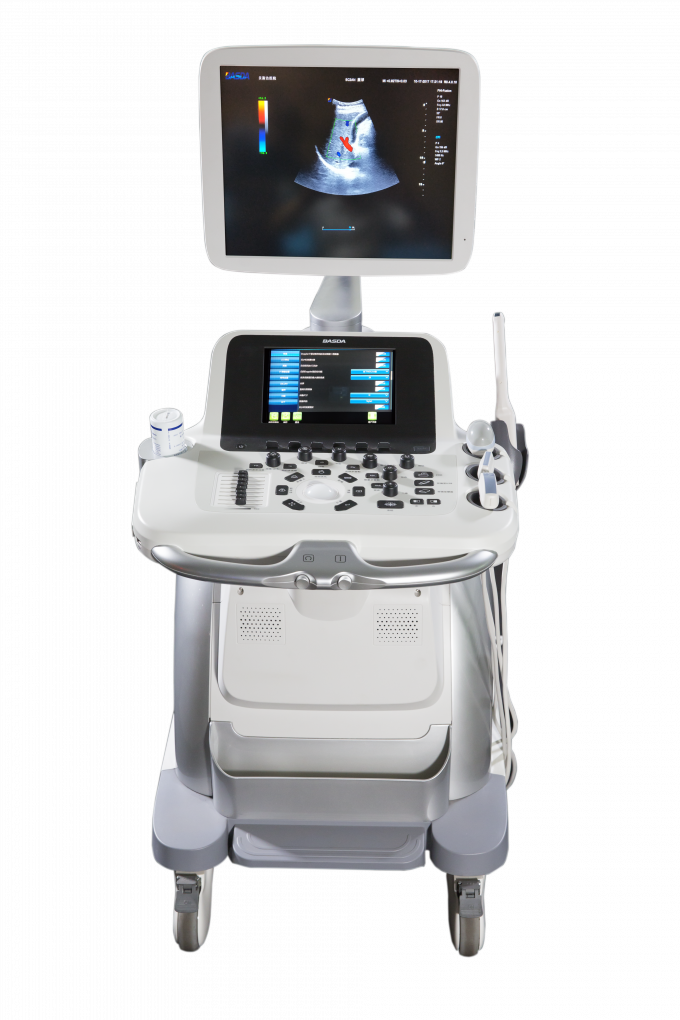

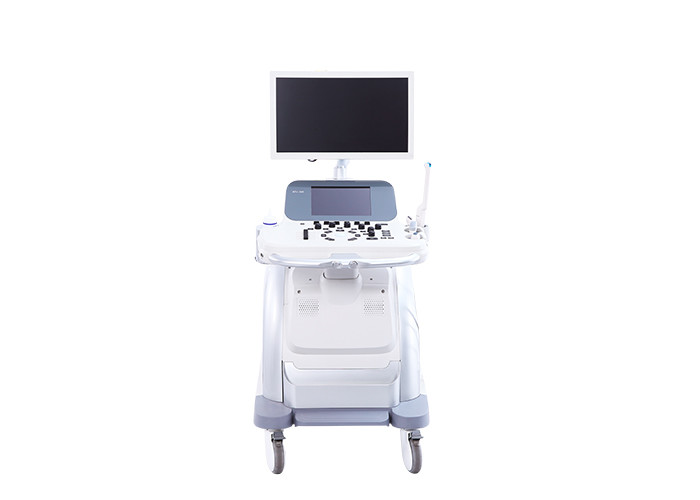

3D Ultrasound Pregnancy 220V 110V Color Doppler Ultrasound Machine Color Ultrasound For Abdomen BTH-150S

3D Ultrasound Pregnancy 220V 110V Color Doppler Ultrasound Machine Color Ultrasound For Abdomen BTH-150S

  • 3D Ultrasound Pregnancy 220V 110V Color Doppler Ultrasound Machine Color Ultrasound For Abdomen BTH-150S
3D Ultrasound Pregnancy 220V 110V Color Doppler Ultrasound Machine Color Ultrasound For Abdomen BTH-150S
Product Details:
Place of Origin: China
Brand Name: BASDA
Certification: NMPA
Model Number: BTH-150S
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: 1 unit/wooden box
Delivery Time: 8 Work Days
Payment Terms: Credit card, Paypal, T/T, Western Union, MoneyGram
Supply Ability: 100 Units Per Month
Contact Now
Detailed Product Description
Clinical Use: Color Doppler Type: Trolley, Cartbase
Probe1: Convex Probe2: Linear
Transmit: 128 Channels Array Element Of Probe: 128 Array Element
High Light:

110V Color Doppler Ultrasound Machine

,

220V Color Doppler Ultrasound Machine

,

110V doppler ultrasound equipment

BTH-150S Color Doppler Ultrasound doppler spectrum 4D touch screen 220V/110V

Basda Medical specializes in progressive medical imaging technologies including 9 series with over 100 products. Today, weare pioneering medical imaging trends with the MRI series, and are rapidly developing X-Ray series such as CT scanner and DR, as well as color doppler ultrasound products,and the radiotherapy products.



Specifically, our products in the permanent MRI system series have varying magnetic field strengths of 0.20T, 0.30T, 0.35T, 0.42T and 0.50T respectively. Our superconductive MRI systems have magnet filed strength range from 0.5T, 0.52T, 0.7T, 1.2T, 1.49T, 1.5T to 3.0T. On the other hand, our CT scannerseries has products with various slide widths of 16 slice, 32slice and 64 slice. Moreover, the products in the DR series include ceiling suspension DR, U-arm DR, mobile DR, digital X-Ray, DRF system, and digital mammography. Furthermore, our color doppler ultrasound system products range from portable, wireless to trolley products. Lastly, we also provide medical linear acceleratorradiotherapy series and nuclear medicine series such as positron emission computed tomography(PET-CT), single-photon emission computed tomography (SPECT), wide FOV gamma camera, etc.



5 out of 9 series products of Basda Medical are included in the key research areas of China’s government directed program "Made in China 2025". Basda Medicalhas high profile among China’s medical imaging manufacturers due to several facts. We are known as the one of the earliest manufacturers of 3.0T MRI system in China. We successfully developed the world's first 0.5T and 0.7T open superconducting MRI systems. We producedChina’s first specialized extremity MRI systems and first SPECT with independent intellectual property right. With a decades-long track record of delivering high quality, high-tech products and excellent service, At present, it has more than 3000 global users, becoming the backbone of import's high-end medical products substitution, our markets cover all domestic provinces and more than 40 countries and regions globally ranging from Europe, America, Africa, the Middle East, to Asia.



Basda Medical continues to deliver on "technology safeguards our lives" promise as we strive to become the world’s most admired leading enterprise in the new medical imaging era. We are passionate about technology and driven by innovation, and always dedicate to excellent products and service for customers. We dream, we dare and we strive to create an effortless and healthy life for everyone.


BTH-150S Specification

1. Application

It is mainly applied for ultrasonic diagnosis and scientific research of abdomen, obstetrics and gynecology, reproduction, blood vessels, heart, superficial tissue, breast, neonates, surgery ,nerves, etc.

3D Ultrasound Pregnancy 220V 110V Color Doppler Ultrasound Machine Color Ultrasound For Abdomen BTH-150S 0

2.Specification:

        2.1 Include:

2.1.1 High resolution B imaging
2.1.2 Color doppler imaging (CDI )
2.1.3 Pulse wave doppler (PWD)
2.1.4 Continuous wave doppler (CWD)
2.1.5 Power doppler imaging (PDI)
2.1.6 Direction Power doppler imaging (DirPDI)
2.1.7 M mode imaging
2.1.8 Tissue doppler imaging
2.1.9 Tissue harmonic imaging
2.1.10 Harmonic fusion imaging
2.1.11 Spatial composite imaging
2.1.12 Adaptive speckle noise suppression
2.1.13 Extend imaging
2.1.14 Parallelogram imaging
2.1.15 Trapezoid imaging
2.1.16 Smart one key imaging optimization
2.1.17 Freehand 3D imaging
2.1.18 Static 3D imaging
2.1.19 Real-time 3D/4D imaging
2.1.20 Optional anatomical M imaging
2.1.21 Optional color M mode imaging

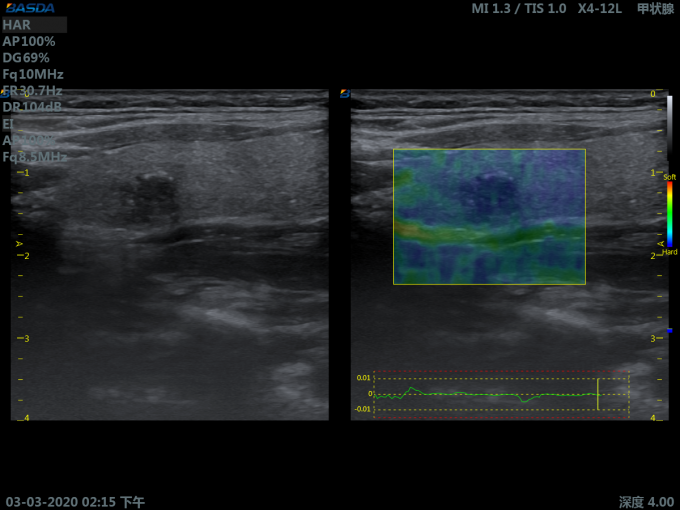

2.1.22 Optional elastography imaging
2.1.23 Optional panorama imaging
2.1.24 Optional strain rate imaging

3D Ultrasound Pregnancy 220V 110V Color Doppler Ultrasound Machine Color Ultrasound For Abdomen BTH-150S 1

2.2 Measurement and analysis:

2.2.1 Preset parameters: for different examined organs, the optimal image examination parameters are preset to reduce the adjustment during operation; users are permitted to define and save preset parameters
2.2.2 General measurement
2.2.3 Obstetrics measurement
2.2.4 Gynecology measurement
2.2.5 Vessel measurement
2.2.6 Urology measurement
2.2.7 Cardiac measurement
2.2.8 Abdomen measurement
2.2.9 User defined measurement
2.2.10 Doppler blood flow measurement
2.2.11 Small organs and superficial tissue measurement
2.2.12 Auto doppler spectrum tracking and analysis
2.2.13 *Auto measurement of intima-media thickness

2.3 Patient data management:

2.3.1 Patient data include: personal information, image, cine, report, etc
2.3.2 Patient data establishment, storage, playback, modification, retrieval and printing
2.3.3 Built-in integrate ultrasound workstation
2.3.4 Image storage format: PNG, JPEG, BMP
2.3.5 Cine storage format: AVI
2.3.6 Optional DICOM 3.0

3 Technical parameters:

3.1 System general configure:
  • Full digital beamformer
  • Multibeam parallel processing
  • Dynamic focusing and apodization
  • A/D sampling: ≥ 14 BIT
  • Monitor: ≥19 inch, high resolution LED color monitor that can be moved up, down, left and right
  • Touchscreen: ≥10 inch,high sensitivity capacitive touchscreen
  • Control panel: ergonomic design, lifted and rotated
  • *Built-in couplant heater
  • Transducer interfaces:≥4, fully activated, transducer can be connected to any connectors freely
  • Interfaces: network, DVI, USB
  • Built-in DVD recorder
  • Harddisk: ≥ 1T
  • Support U disk or mobile HDD storage
  • Support black white printer and color printer

3.2 Transducer specification:
  • Support transducer type: convex array, linear array, phased array, endocavity, volume
  • Supports biopsy guide
  • Visual and adjustable transducer frequency ≥4, all modes of B ,color and doppler frequency are adjusted independently



  • Frequency range:

Convex array transducer frequency: 2.5-5.5 MHz

Phased array transducer frequency: 1.7-5.0 MHz

Linear array transducer frequency: 4.0-14.0 MHz

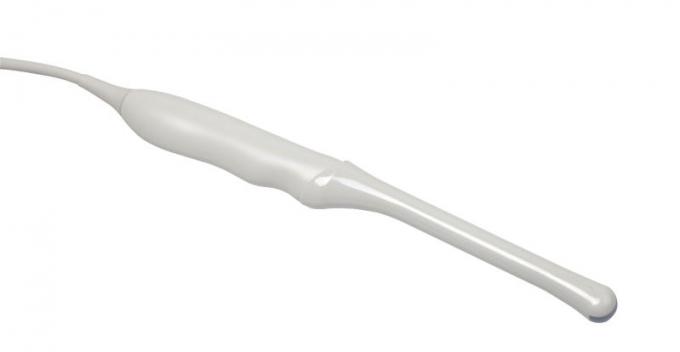

Endocavity transducer frequency: 3.0-10.0 MHz

Volume transducer frequency: 2.0-6.0 MHz

  • Imaging modes:

Convex array transducer: B/M/CDI/PWD

Linear array transducer: B/M/CDI/PWD

Endocavity transducer: B/M/CDI/PWD

Phased array transducer: B/M/CDI/PWD/CWD

Volume transducer: B/M/CDI/PWD/3D/4D


3D Ultrasound Pregnancy 220V 110V Color Doppler Ultrasound Machine Color Ultrasound For Abdomen BTH-150S 2

3.3 B imaging parameters:

3.3.1 Display mode: B, B/B,4B, M,B/M
3.3.2 Gain adjustment: TGC ≥8; LGC ≥8
3.3.3 Transmit beam focusing: ≥7
3.3.4 Scan lines density: ≥512
3.3.5 Gray scale ≥ 256
3.3.6 *Scanning depth ≥ 30cm
3.3.7 Visual and adjustable dynamic range: 30 ~ 180dB
3.3.8 B images playback ≥10000 frames
3.3.9 B scanning rate:
phased array transducer: when depth is 18 cm, the full-field scanning
frame rate ≥ 65 f/s
convex array transducer: when depth is 18 cm, the full-field scanning
frame rate ≥ 50 f/s

3D Ultrasound Pregnancy 220V 110V Color Doppler Ultrasound Machine Color Ultrasound For Abdomen BTH-150S 3

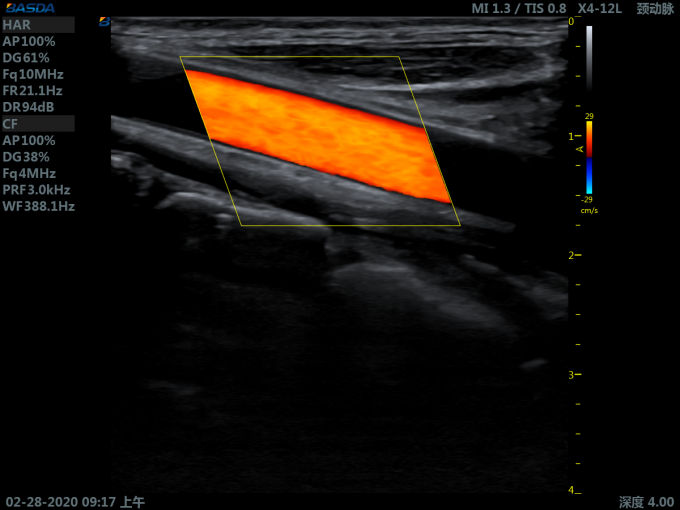

3.4 Color doppler imaging parameters:

3.4.1 Type: CDI, PDI, Dir PDI
3.4.2 Display modes: B/CDI, B/PDI, B/Dir PDI
3.4.3 B and color dual real-time contrast
3.4.4 Zero movement: ≥8 levels adjustable
3.4.5 Steer angle: linear array transducer image steer range: -20°~ +20°

3.5 Spectral doppler imaging parameters:

3.5.1 Type: PWD, CWD, HPRF
3.5.2 Display modes: B/PWD, B/CWD, B/HPRF, B/CDI/PWD, B/CDI/CWD
3.5.3 The maximum blood flow velocity : ≥5 m/s by PWD ; ≥10 m/s by CWD
3.5.4 The lowest blood flow velocity:≤0.5 mm/s (non-noise signal)
3.5.5 Sampling width : 0.5 - 30 mm
