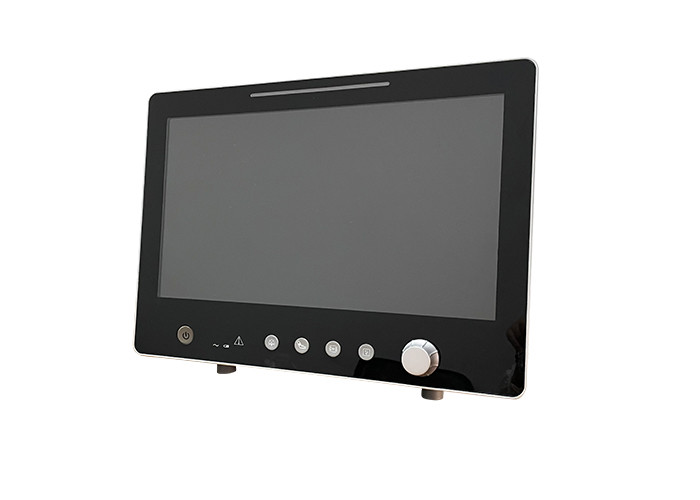

Basic Edition 100-240V 5 Channel Patient Monitoring Machine

15 Inch Portable ECG Monitor Multi-Parameter Patient Monitor Cardiac Monitor ETCO2 IBP ECG Basic Edition

Introduction

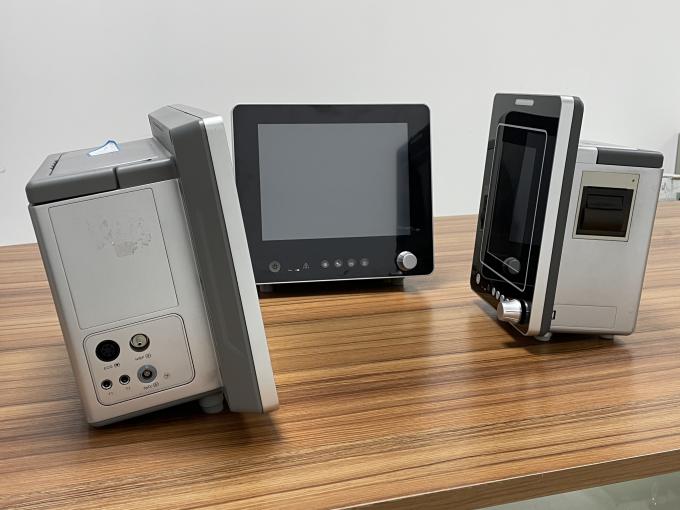

A person’s vital signs indicate how his or her body is operating at a given time. Our ECG monitors can monitor such parameters as ECG, RESP, SpO2, PR, NIBP and dual-channel TEMP, etc. Our ECG monitors, produced by a team who focused on developing patient monitor for over 20 years, integrate parameter measurement module, display and recorder in one device to form a compact and portable equipment. At the same time, its built-in replaceable battery provides convenience for patient moving.


Special Features



* Elegant appearance, clear marks, standard interface, OXYCRG SCREEN, trend graph, big characters, other BED observation, which are convenient for user.

* Be applicable for adult, pediatric and neonatal.

* Standard parameters of ECG, RESP, NIBP, SPO2 and dual-channel TEMP. IBP, CO2, Built-in printer, curving handle, moving bracket and hanging bracket are optional.

* Multi-language(English, Chinese, French, Italian, Spanish, Russian, Germany, Portuguese, Romanian, and Turkish) interface. Finish all operations by keys and knobs. Design with full built-in module, stable and reliable performance.

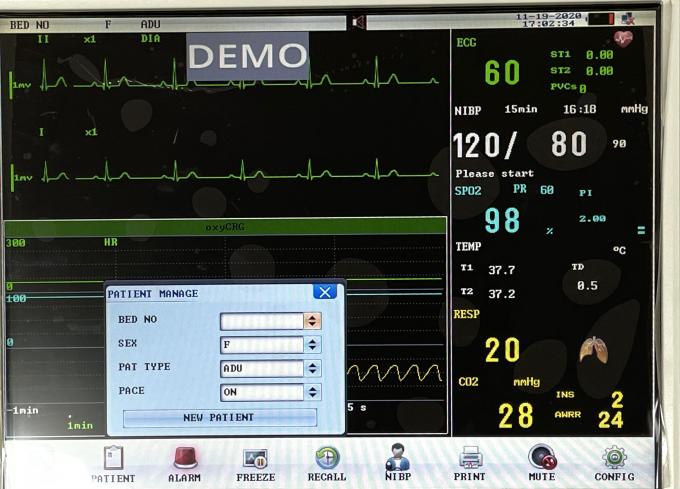

* 15'' color TFT LED with high resolution displays patient parameter and waveform, and alarm, bed NO,clock,state and other information provided by the monitor synchronously.

* Monitoring contents, scan speed, volume and output contents can be set optionally.

* Storage of 150-hour trend data, and review of 40-second holographic waveform.

* Storage and review of 72-hour ECG waveform.

* Function of NIBP review, storage for up to 2400 NIBP data.

* Adopt digital SPO2 technology, which has strong anti-interference and antiweak filling capability.

* Calculation of drug concentration.

* Network: connecting with central station, other Bed observation and software updating. Connection mode: wireless and wired.

* Built-in rechargeable battery for uninterrupted monitoring.

* Print ECG, SpO2, RESP, BP and temperature data with one-key.

* Anti-high frequency surgical unit, defibrillation-proof(requirement for special leads).

* Analysis function for heart rate variability(HRV) (optional)







Technical Specifications





ECG



Connection mode: Five-cable electrocardiograph input( R, L, F, N ,C )

Connection method: I, II, III, AVR,AVL,AVF,V1-V6

Number of display waveform: 7

Gain options: 0.25mm/mV, 0.5mm/mV, 1mm/mV, 2mm/mV, 4mm/mV, Auto

Protection: Isolation from voltage 4000 VAC and 50HZ±1HZ and protection against interference from defibrillation,

high-frequency electro tome, alternative current, muscle electricity and floating.

Alarm when electrode falls off: Yes

Scan speed: 25mm/s, 50mm/s





SPO2



Measurement range: 0~100%

Resolution: 1%

Accuracy: +2%(70-100%);0-69% unspecified

Alarm range 0~100%

Pluse Rate:

range: 20~300bpm

Resolution: 1bpm

Error: +1bpm or +2%,whichever is greater





Heart Rate



Measuring range: 0-300 bpm

Accuracy: ±1bpm

Break time: once per pulse

Alarm system: Audio-video alarm





NIBP

Method: Digital Automatic oscillometric

Operation mode : Manual/Automatic/continuous

Auto measurement time: Adjustable(1~480min)

Measurement Unit: mmHg/Kpa selectable

Measurement types: Systolic, Diastolic, Mean

Measurement tange:

Range of Systolic pressure: Adult: 40~270mmHg

Pediatric: 40~220mmHg

Neonate: 40~135mmHg

Range of mean pressure: Adult: 20~235mmHg

Pediatric: 20~165mmHg

Neonate: 20~110mmHg

Range of diastolic pressure: Adult: 10~215mmHg

Pediatric: 10~150mmHg

Neonate :10~100mmHg

Over-pressure protection: Double safety protection

Resolution: 1 mmHg

Alarm: Systolic.Diastolic,Mean





Temperature



Type: Double road (the optional install)

Measurement range: 0-50 ℃

Unit: ℃/℉

Resolution: 0.1℃

Alarm range: 0~50℃

Alarm system: Audio-video alarm







RESPIRATION



Method: Thoracic impedance

Measurement range: Adult:7~120rpm;

Neonate/Pediatric:7~150rpm

Apnea alarm: YES,10~40s

Resolution: 1rpm

Accuracy: +2rpm







FHR

Transducer: Multi-crystal, Pulsed Doppler

Measurement range: 50~210 BPM

Working frequency: 1 MHz

Strength: <5mW/cm²

Signal processing:

special DSP system and modern recognization.

Resolution: 1BPM

Accuracy: ±1BPM

Alarm Range: High: 160,170,180,190 BPM,

Low: 100,110,120 BPM







System Output



Display Type: 12.1 inch LCD with TFT 800x600

Trand diagram: 150 hours

Recorder: Recorder could be optional install

Network: could be connected to central machine
