| Place of Origin: | Guangdong, P.R.C. |
| Brand Name: | Basda Medical |
| Certification: | ISO9001, ISO13485 |
| Model Number: | BMP-08B |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 unit/carton, 345mm*310mm*380mm |
| Delivery Time: | Various by Logistics and Custom |
| Payment Terms: | Credit card, Paypal, T/T, Western Union, MoneyGram |
| Supply Ability: | 3 Days per 10 Units |

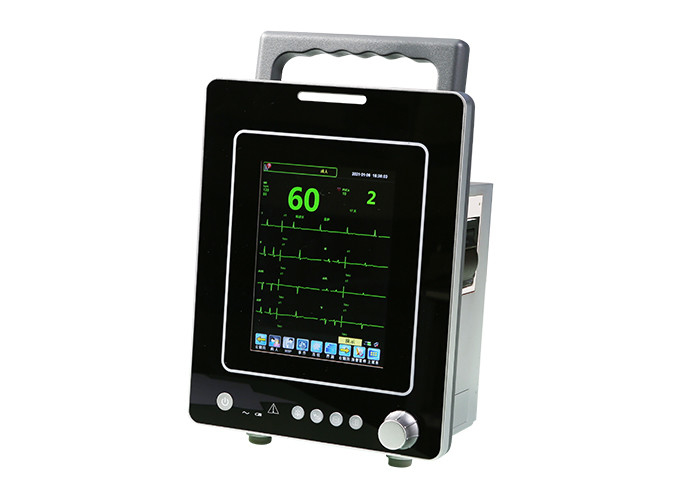

| Product Name: | Vital Sign Monitor | AC Range: | 100-240V |
|---|---|---|---|
| Parameters: | SPO2, 2TEMP, ECG, RESP, NIBP, PR, 2IBP, CO2 | Thermal Paper Size: | 50 Mm*30m |
| Material: | Plastic, Steel | Machine Form: | Standing |
| High Light: | ETCO2 Patient Monitoring Machine,ETCO2 bedside cardiac monitor,Basda bedside cardiac monitor |
||
Special Features
Introduction:
Technical Specifications
ECG
Connection mode: Five-cable electrocardiograph input( R, L, F, N ,C )
Connection method: I, II, III, AVR,AVL,AVF,V1-V6
Number of display waveform: 7
Gain options: 0.25mm/mV, 0.5mm/mV, 1mm/mV, 2mm/mV, 4mm/mV, Auto
Protection: Isolation from voltage 4000 VAC and 50HZ±1HZ and protection against interference from defibrillation,
high-frequency electro tome, alternative current, muscle electricity and floating.
Alarm when electrode falls off: Yes
Scan speed: 25mm/s, 50mm/s
Heart Rate
Measuring range: 0-300 bpm
Accuracy: ±1bpm
Break time: once per pulse
Alarm system: Audio-video alarm
Temperature
Type: Double road (the optional install)
Measurement range: 0-50 ℃
Unit: ℃/℉
Resolution: 0.1℃
Alarm range: 0~50℃
Alarm system: Audio-video alarm
SPO2
Display: Number of SPO2, waveform of capacity, pulse
Measurement Range: 0~100%
Resolution: 1%
Accuracy: 70~100% (±2%)
Type of the sensor: LED w/double wave length.
Pulse rate range: 0-300bpm
Alarm system: Audio-video alarm
System Output

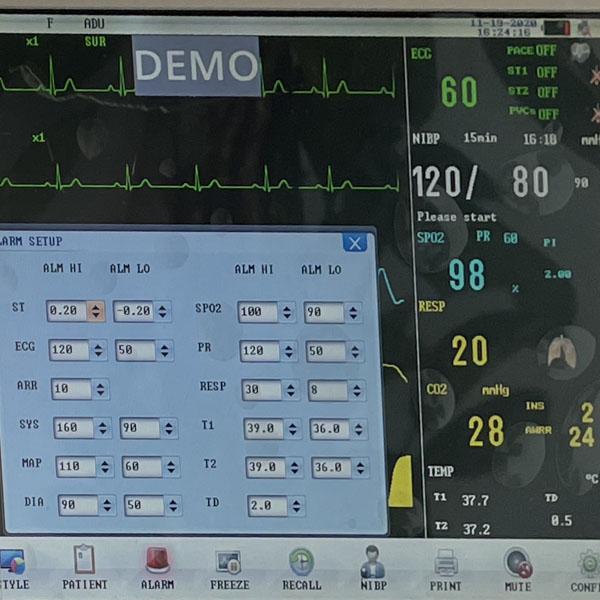

Display Type: 12.1 inch LCD with TFT 800x600
Trand diagram: 150 hours
Recorder: Recorder could be optional install
Network: could be connected to central machine
