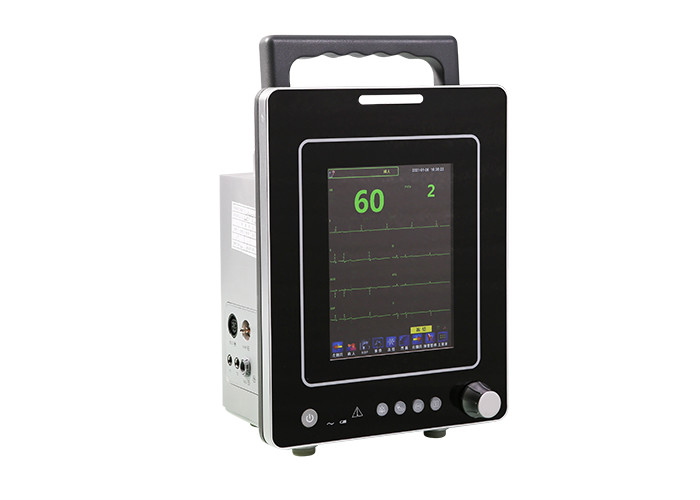

Basda 8Inch Patient Monitoring Equipment For Neonatal Pediatric

Portable Ecg Monitor 8 Inch Multi Parameters Patient Monitor Applicable For Neonatal, Pediatric and Adult Patients

Features



• 8" TFT LED, wide and flat design



• High resolution 800*600 (1024 x 768 optional)



• Product dimension: 388mm x 289mm x378mm 8 waveform display, up to 5-lead ECG analysis



• Pacemaker detection ST arrhythmia analysis



• Powerful calculation(Hemodynamic, Dose, Oxygenation, Ventilation, MEWS)



• Multi-selectable user screen options



• Spo2 support PVI and PI, low perfusion 0.20



• Built-in rechargeable battery



• Wired/Wireless CMS, support HL7



• Spo2 pulse-tone modulation (Pitch Tone)



• Graphical tabular trend review (90 hours)



• 48H full disclosure wave review for each patient (72 Hours optional)



Technical Specifications





ECG



Connection mode: Five-cable electrocardiograph input( R, L, F, N ,C )

Connection method: I, II, III, AVR,AVL,AVF,V1-V6

Number of display waveform: 7

Gain options: 0.25mm/mV, 0.5mm/mV, 1mm/mV, 2mm/mV, 4mm/mV, Auto

Input impedance: ≥5MΩ

The ratio of the total mold represses: ≥100dB

Frequency response: Filter 0.5-40Hz (±3dB)

Protection: Isolation from voltage 4000 VAC and 50HZ±1HZ and protection against interference from defibrillation,

high-frequency electro tome, alternative current, muscle electricity and floating.

Alarm when electrode falls off: Yes

Scan speed: 25mm/s, 50mm/s





Heart Rate



Measuring range: 0-300 bpm

Accuracy: ±1bpm

Break time: once per pulse

Alarm system: Audio-video alarm





Non-Invasive Blood Pressure



Measuring method: self-oscillation method

Operation mode: Single time (Manual), Period (Auto)

Measuring parameters: Systolic pressure/ Diastolic pressure

Measuring pattern: Adults and Children

Measuring range: Adult: 0~300mmHg, Child: 0-200mmHg

Pressure unit: mmHg/ Kpa

Alarm system: Audio-video alarm





Temperature



Type: Double road (the optional install)

Measurement range: 0-50 ℃

Unit: ℃/℉

Resolution: 0.1℃

Alarm range: 0~50℃

Alarm system: Audio-video alarm





SPO2



Display: Number of SPO2, waveform of capacity, pulse

Measurement Range: 0~100%

Resolution: 1%

Accuracy: 70~100% (±2%)

Type of the sensor: LED w/double wave length.

Pulse rate range: 0-300bpm

Alarm system: Audio-video alarm





Respiration



Display: waveform, respiratory rate

Measurement Range: 0-120 breaths/ minute

Operation mode: Chest resistance

Measuring accuracy:±2 breaths/ minute

Scan speed: 25mm/s, 50mm/s

Alarm system: Audio-video alarm





System Output



Display Type: 12.1 inch LCD with TFT 800x600

Trand diagram: 150 hours

Recorder: Recorder could be optional install

Network: could be connected to central machine





Power Supply



AC220V±22V, 50Hz±1Hz

Protection Degree: Class II,Type BF









In the box

1. 1 Set of Reusable ECG Leadwires
2. 1 Set of LNOP Reusable SpO2 Sensor
3. 1 Set of NIBP Hose
4. 1 Set of Blood Pressure Cuffs
5. 2 Sets of Temperature Trunk Cables
6. 1 Bag of ECG Electrodes
7. 2 Sets of Fuse
8. 1 Set of Power Cord
9. 1 Set of Grounding Cable
