| Place of Origin: | Guangdong, P.R.C. |
| Brand Name: | Basda Medical |
| Certification: | ISO9001, ISO13485, NMPA |

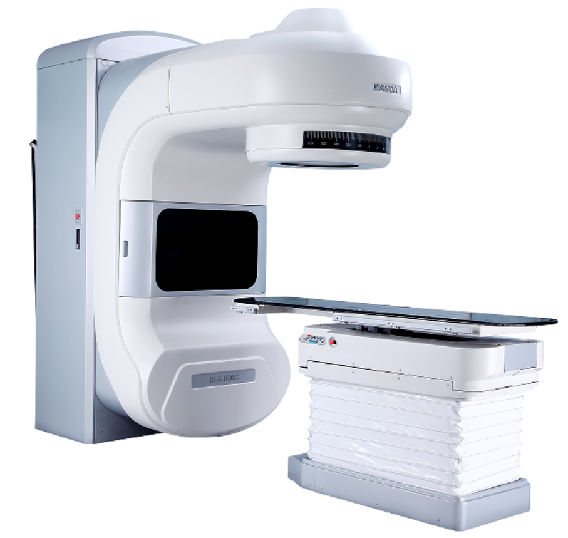

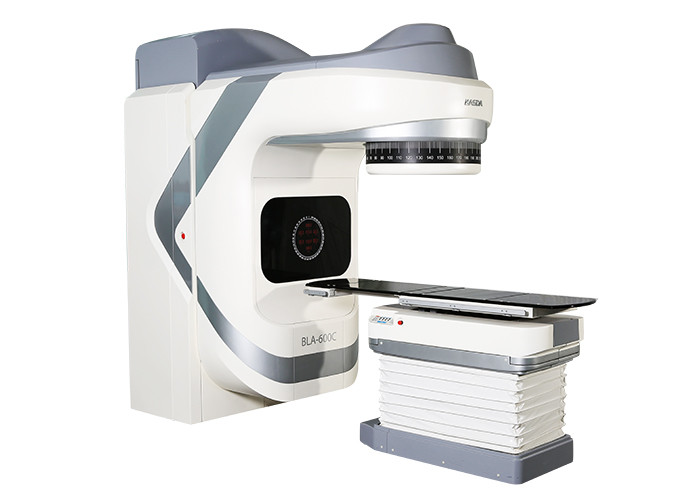

| Model Number: | BLA-600C |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 unit/wooden box |
| Delivery Time: | 30-45 Working days |
| Payment Terms: | Credit card, Paypal, T/T, Western Union, MoneyGram |
| Supply Ability: | 2 Sets per Month |
| Type Of Radiation: | X Ray | Ergonomic NTD: | 100 Cm Distance |
|---|---|---|---|
| 6 MV Dose Rate: | ≥300MU/min | Beam: | Shaped |
| X-Ray Min Dose: | 50 MU/min | X-Ray Power: | 6 MV |
| High Light: | 6M High Energy Linear Accelerator,Tumor Treatment High Energy Linear Accelerator,6M medical linear accelerator |
||
BASDA Medical follows the spirit of "independent innovation", dedicated to manufacturing excellent products and service for customers, and is becoming the leading medical devices and solutions provider in China.
Product Features
Multi-functional treatment procedure, the doctor can use the system with very simple training:
Maintenance Member:
Configuration:
| Item | Description | Specification | |
| 1.1 | Model | BLA-600C | |
| 1.2 | Power source | magnetron | |
| 1.3 | Electron gun | Two stage controllable grid-shaped electron gun, which can be controlled by the computer, can rapidly and accurately change the output dose, open and completely close the output of the ray description, to ensure the high vacuum of the accelerating tube≤10－7 | yes |
| 1.4 | Computer controlled structure | The accelerator system is computerized, fully digitized, and available for free software upgrades. It have clinical application mode, special treatment mode, photographic mode, physical mode and maintenance mode. | yes |
| 1.5 | Beam stability time | The time from RAD ON signal to beam stabilization is less than 0.3 seconds, after which beam uniformity, symmetry and dose linearity can meet the technical standard requirements. | yes |
| 1.6 | Indoor data display | A data display with a large screen is installed in the treatment room. Treatment time displays all treatment parameters (including all mechanical position data, gamma setting parameters). | yes |
| 1.7 | Hand control box | Equipped with manual control box, can control the frame, field, treatment bed and other mechanical movement, with adjustable speed function, to ensure that in a very short time, the operating accelerator frame rotation in place. | yes |
| 1.8 | Digital operation input | Input values by keyboard and manual box, and the moving parts of the machine will automatically move to the input values. | yes |
| 1.9 | Maintenance mode software password | provide | |
| 1.10 | Gantry type | bearing | |
| 1.11 | Acceleration tube drive principle | Standing wave | |
| 1.12 | Energy switching between X-ray and electron | Fully automatic control without any mechanical parts | X-ray |
| 1.13 | Acceleration tube warranty | The scope of warranty includes acceleration tube, electron gun, magnetic deflection system and ray egress window | 3 years |
| 1.14 | Magnetron guaranteed time | 3 years | |
| 1.15 | Automatic fault detection and prompt function | Omni-directional computer fault automatic detection and prompt function | yes |
| 1.16 | Water cooling system | Internal and external circulating water cooling system | yes |
| 2 | X-ray beam characteristics | ||
| 2.1 | X-ray energy | 6MV | |
| 2.2 | X - ray maximum dose built depth | TSD=100cm,10cm×10cm field: 1.5±0.2cm； | |
| 2.3 | X ray percentage depth dose | TSD=100cm,10cm×10cm field, @10cm under water, @6MV: 67％±2.0％ | |
| 2.4 | X-ray field size | Size of projection field on the center plane: 0cm×0cm to 40cm×40cm(SSD=100cm) | yes |
| 2.5 | X - ray flatness | (TAD=100 cm,10 cm×10 cm to 40 cm×40 cm @80%, @10cm under water) | ≤1.06 |
| 2.6 | X ray symmetry | (TAD=100 cm,10 cm×10 cm至40 cm×40 cm@80%, @10cm under water) | ≤1.03 |
| 2.7 | Dose rate | ||
| 2.7.1 | 6MV dose rate | ≥300MU/min | |
| 2.7.2 | X-ray low dose rate mode | Low dose rate mode ≤50MU/min is provided | yes |
| 2.8 | Ray transmission dose of collimator | <0.5％ | yes |
| 2.9 | Half image of projection field | SAD＝100cm,10cm×10cm field @ 10cm depth, distance between 20% to 80% isodose lines in the plane perpendicular to the center of the field | ≤8mm |
| 2.10 | X-ray leakage | Perpendicular to the axis of the field center and through the plane of the same center, the maximum radiation field, radius within two meters radiation ≤ 0.1%. | yes |
| 2.11 | Consistency of light field and ray field | <±2mm | |
| 3 | Rotational treatment model | ||
| 3.1 | Maximum Angle dose rate | ≥6.5MU/degree | |
| 3.2 | Minimum Angle dose rate | ≤0.5MU/degree | |
| 3.3 | Frame rotation range and direction | ±180° | |
| 3.4 | Monitoring accuracy of rotational therapeutic dose | ≤1MU | |
| 4 | Accessories | ||
| 4.1 | X-ray block system | 120 piece leaf | |
| 4.2 | Wedge filter plate | ||
| 4.2.1 | Wedge Angle | 4 wedge-shaped filter plates with wedge angles of 15 degrees, 30 degrees, 45 degrees and 60 degrees. | yes |
| 4.2.2 | Wedge size | SAD=100cm,max≥25cm×30cm(≤45°)；≥20cm×30cm(≤60°). | yes |
| 4.3 | Insert wedge plate | yes | |
| 5 | Dose rate (isocentric) | ||
| 5.1 | 6MV max rate | ≥400MU/min | |
| 5.2 | X-ray minimum dose rate | 50 MU/min | |
| 5.3 | Stability of X-ray dose rate | In 2 minutes＜±3% | yes |
| 6 | Specific treatment model | ||
| 6.1 | Wedge filter plate | 4 wedge-shaped filter plates are provided, including 15,30,45,60 degrees | yes |
| 6.2 | Wedge-shaped field size |
15°,30°,45°: 25cm×30cm ; 60°: 20cm×30cm |
yes |
| 7 | Dose monitoring system | ||
| 7.1 | Ionization chamber structure | Two dose monitoring systems and one timing system | yes |
| 7.2 | Structural characteristics of dosimeter | The ionization chamber is vacuum sealed, which is not affected by the external temperature and pressure | yes |
| 7.3 | Dose linearity | From 1MU to 1000MU≤1% | yes |
| 7.4 | Equipment safety linkage system | With high dose rate, X-ray mode, collision, door, radiation tube, wedge filter and other system safety linkage automatic devices, when any of the events in the list occurs, the accelerator can immediately automatically shut off the output of the ray beam | yes |
| 7.5 | Safe linkage of ray symmetry | If the longitudinal and transverse symmetry parameters of the ray exceed the following values, the linkage is started: longitudinal and transverse symmetry>2％ | yes |
| 7.6 | Automatic archiving function | When any of the events listed in the equipment safety chain system occurs, the accelerator automatically shuts off the output of the ray beam and automatically stores MU hop number, frame rotation Angle, irradiation time and other treatment parameters. The above parameters also be stored automatically in the event of a power outage of any kind | yes |
| 7.7 | Counting the number of machine hops MU | 4 | |
| 8 | Machine parameters and control system | ||
| 8.1 | Machine rotation range and accuracy | ±180° | yes |
| 8.2 | Rotation range and precision of collimator system | ±180° | yes |
| 8.3 | Independent collimator | Equipped with a pair of independently movable collimators with a motion range of -10cm to 20cm | yes |
| 8.4 | Digital input during mechanical motion operation type | keyboard | |
| 8.5 | TAD distance | 100±0.2cm | |
| 8.6 | Equal center accuracy | ≤±1mm radius sphere | 1-1.5mm |
| 8.7 | Equal center height | 1350mm | |
| 8.8 | Mechanical front pointer | Equipped with a set of mechanical front pointer for measuring and calibrating the central precision, the front pointer range: 90cm to 110cm | yes |
| 8.9 | Measuring range and precision of optical distance scale | From 75cm to 130cm, accuracy ≤2mm | yes |
| 9 | Treatment bed | ||
| 9.1 | Structure type | Hydraulic double shear ZXT treatment bed, stable operation, low noise, IEC coordinate protocol | yes |
| 9.2 | Motion control | Provide electric control and manual control | yes |
| 9.3 | Vertical range | From 65cm to 175cm, the error is ≤±0.2cm, and the lowest distance is 65cm from the ground | yes |
| 9.4 | Back-and-forth range | ≥90cm, error≤±0.2cm | yes |
| 9.5 | Left-and-right range | ≥50cm, error≤±0.2cm | yes |
| 9.6 | The isocentric rotation range of the treatment bed | ≥±95° | |
| 10 | Linear accelerator is compatible with analog positioning machine and TPS | yes | |
| 11 | Provide product planning guidance(PPGS) | Pre-drawing, precise drawing, technical requirements for machinery, water and electricity, air conditioning, selection and configuration of water cooler, radiosurgery system installation instructions, perfect handling requirements | yes |
| 12 | System upgrade | Free upgrades are guaranteed | yes |
| 13 | Ability to upgrade | According to the development requirements of the hospital department, we can upgrade the built-in multi-leaf grating and the ability of intensity adjustment | yes |
1) Equipment function introduction;
2) Operation manual introduction;
3) Device maintenance;
4) Efficient use ways of the device.
