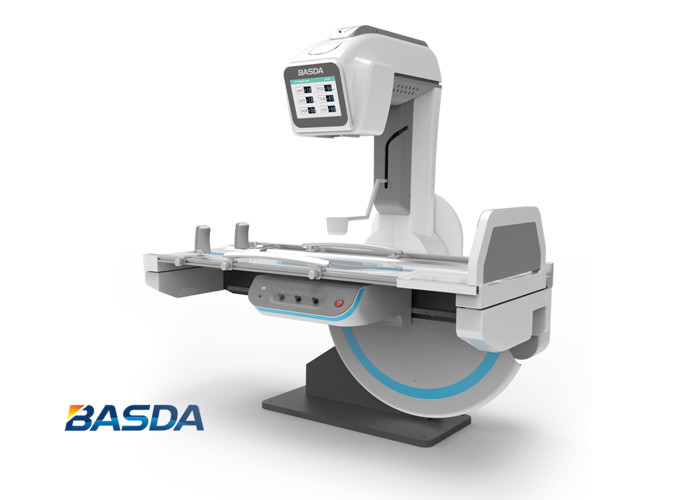

Dynamic Type Digital X Ray Machine

1,Compared with common one-way control exposure of gastrointestinal machine on the market, BTF-650DRF MAX adopts the expensive AEC configuration, which can achieve the best image acquisition and the lowest exposure dose.



2,BTF-650DRF MAX with AEC control system can reduce the X-ray exposure dose more than 80% lower than normal dose (in certain case), the image quality, image consistency is greatly improved.



3,The AEC real-time closed loop monitoring of BTF-650DRF MAX controls the X - ray dose and reduce the patient's injury, realize low dose with improved image resolution.





1,In order to solve the drag-and-tail phenomenon of moving organs, BTF-650DRF MAX adopts the self-developed noise level automatic switching system.



2,The noise reduction levels are automatically adjust to the lower level, and the image is automatically adjusted to the high level when the image is static.





1,A-Si material, clear images, high efficiency.

2,Flat panel detector is the core part of DR.

3,It is related with both image quality & small lesions and the lifetime, stability and received dose of patients.

4,BASDAD DR detector uses whole-plate design and technique, combines spatial resolution, contrast resolution and quantum noise to provide excellent images.



5,High noise-Low noise

6,Fast image transmission technique.

7,Intelligent digital image acquisition processing technique, film by one simple press, adjust image parameters by one key, obtain clear images easily.

8,Super long lifetime

9,Adapt with various environment





1,Use HF high voltage generator, stable output current, guarantees clear images, reduces soft X-ray harm to patients, equipped with failure automatic detection software, integrated with rich exposure mode, convenient operation and stable performance.



2,It can monitor the tube in real-time and reach the best performance status, make sure low noise when image output.



3,Soft ray is a byproduct of X-ray.



4,It affects image quality, causes harm to human body.



5,High inverter frequency of high voltage generator is the fundamental resolution to reduce soft rays.



6,BASDA DR is equipped with HF high voltage generator, which reduces radiation effectively and ensures image quality.









1,Use tube with large heat capacity, rotating anode ensures super long lifetime.



2,Tube focus meets the requirements of different body parts.





1,Self-developed software, easy operation with abundant functions including patient registration, image acquisition, cutting, negative images, overturn, rotation, zooming, label, translation, window-width & level adjustment, DICOM images sending, DICOM film print, Wordlist, statistical query, etc., very simple and easy operation.

Also supports PACS/RIS
